Heated Glass Element
Heated Glass Element

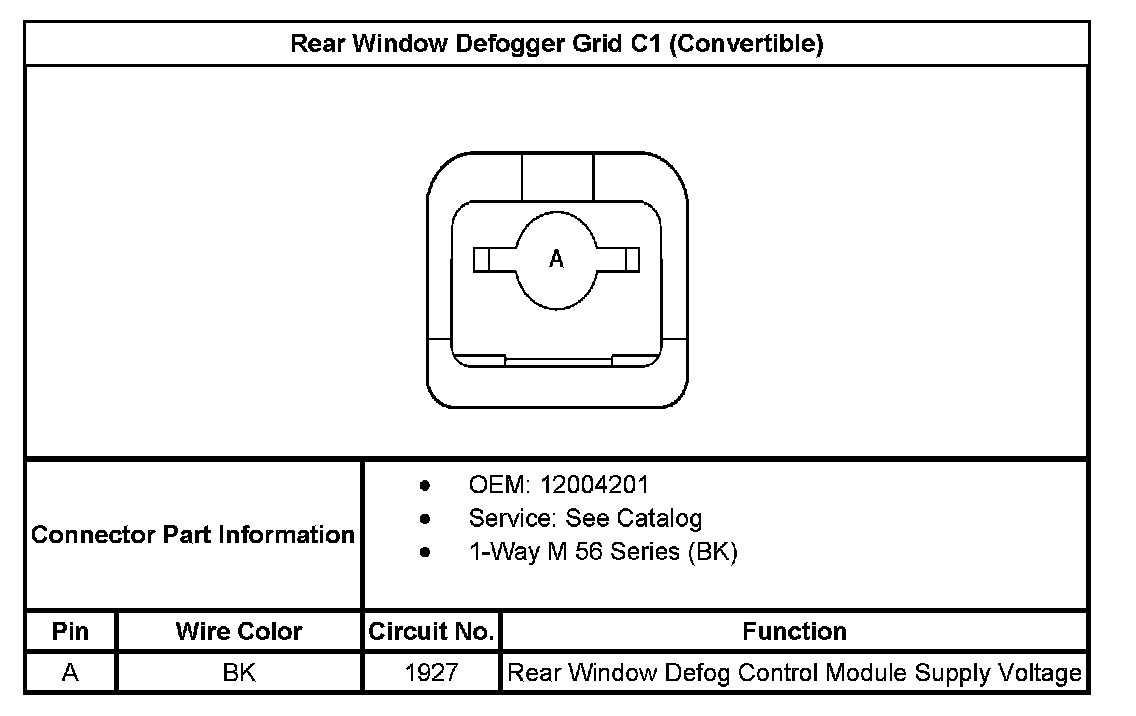

Rear Window Defogger Grid C1 (Convertible):

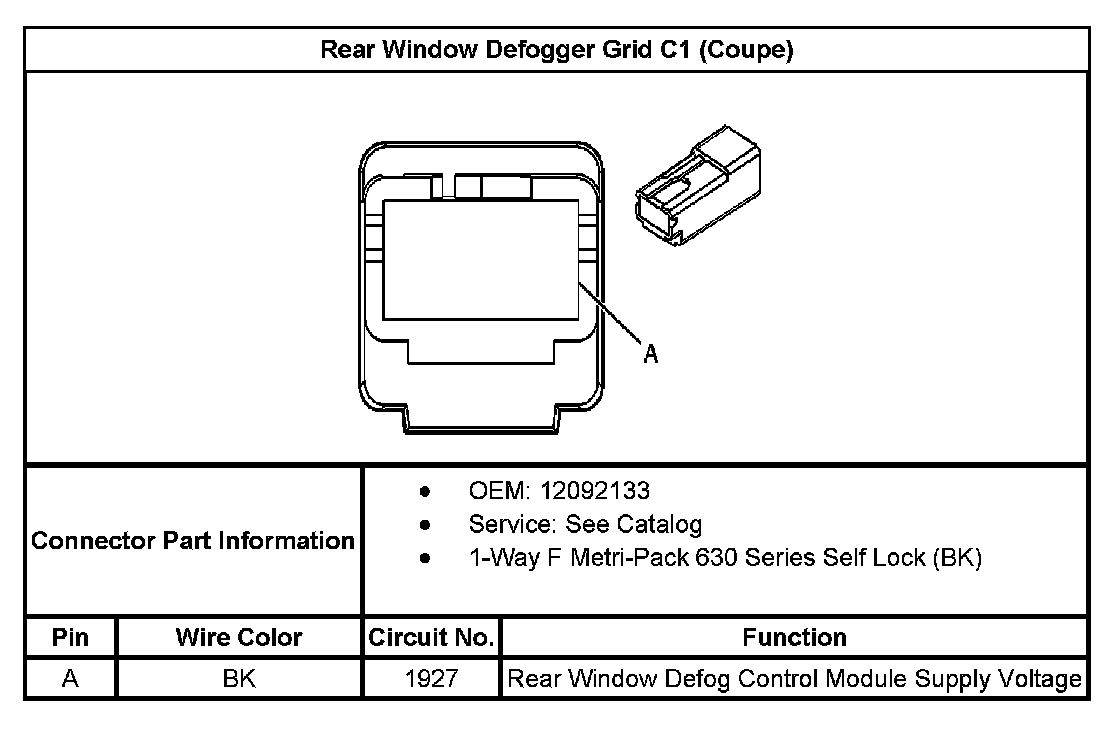

Rear Window Defogger Grid C1 (Coupe):
Rear Window Defogger Grid C2 (Convertible):

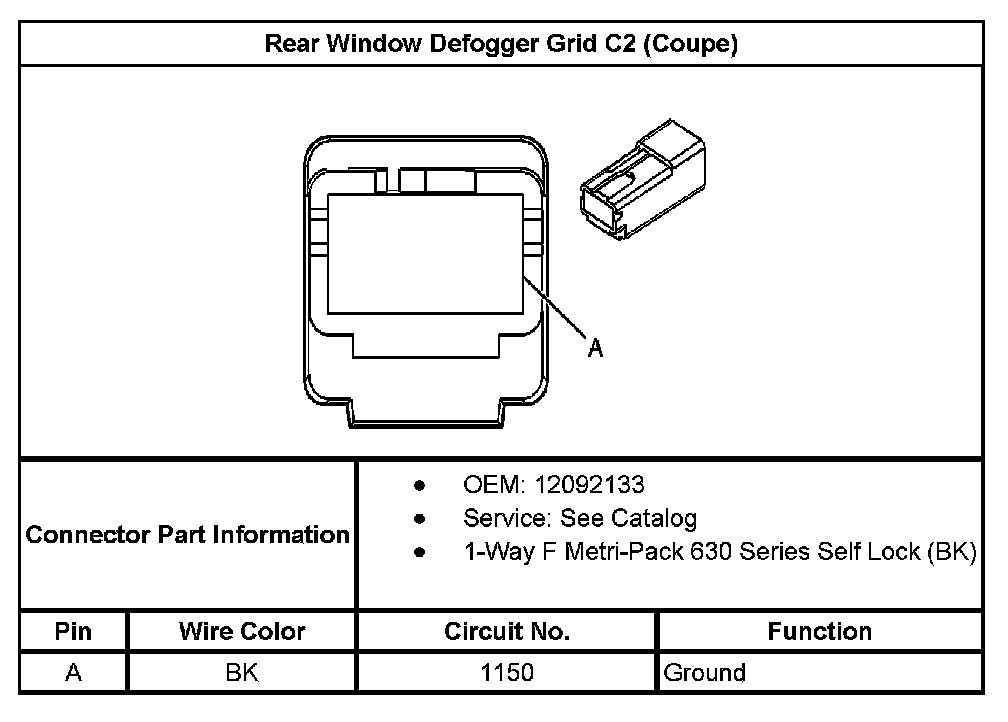

Rear Window Defogger Grid C2 (Coupe):
