Ground Strap: Service and Repair

GROUND STRAP REPLACEMENT

REMOVAL PROCEDURE




1. Remove the ground strap nut and terminal from the stud on the frame.
2. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

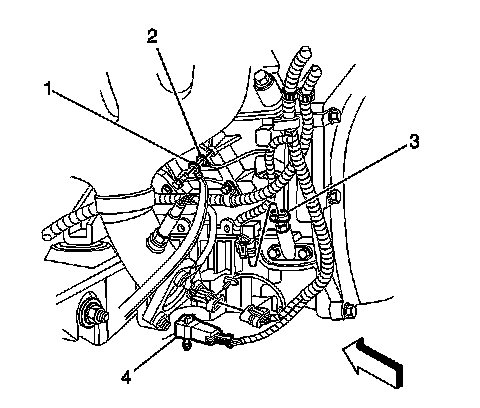

3. Remove the ground strap bolt, strap (1) and engine harness ground.
4. Remove the ground strap.

INSTALLATION PROCEDURE




1. Position the ground strap terminal (1) and engine harness ground to the block.
2. Install the ground strap bolt.

NOTE: Refer to Fastener Notice.

Tighten the ground strap bolt to 32 N.m (24 lb ft).




3. Lower the vehicle.
4. Install the ground strap terminal and nut to the stud.

Tighten the ground strap nut to 8 N.m (71 lb in).
