Floor Shift Control Boot Replacement

Floor Shift Control Boot Replacement

Removal Procedure
1. Remove the console.
2. Remove the I/P accessory trim plate.
3. Remove the floor shift control knob.
4. Remove the floor shift control from the vehicle; to allow for boot replacement without possible damage to the boot retaining tabs.





5. Remove the floor shift control boot from the floor shift control.

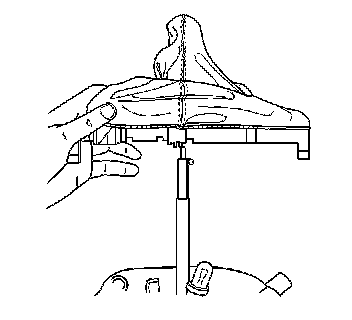

1 Carefully squeeze the front and side tabs or the rear and side tabs at the same time in order to release them.
2 Carefully squeeze the remaining tab in order to release it.
3 Release the snap lock retainer on the LH side of the boot.
4 Move the boot to the left and release the shift indicator guide pin from the shift control lever.
5 Disconnect the indicator lamp socket from the boot.
6 Remove the boot from the shift control.

Installation Procedure





1. Install the floor shift control boot to the floor shift control.
1 Position the boot onto the shifter.
2 Align the shift indicator guide pin to the slot in the boot, then move the boot to the right to insert the guide pin into the slot.
3 Connect the shift indicator lamp socket to the boot.
4 Evenly insert the tabs until the boot locks into position.
2. Install the floor shift control to the vehicle.
3. Install the shift control knob.
4. Install the I/P accessory trim plate.
5. Install the console.
