System Diagram
System Diagram

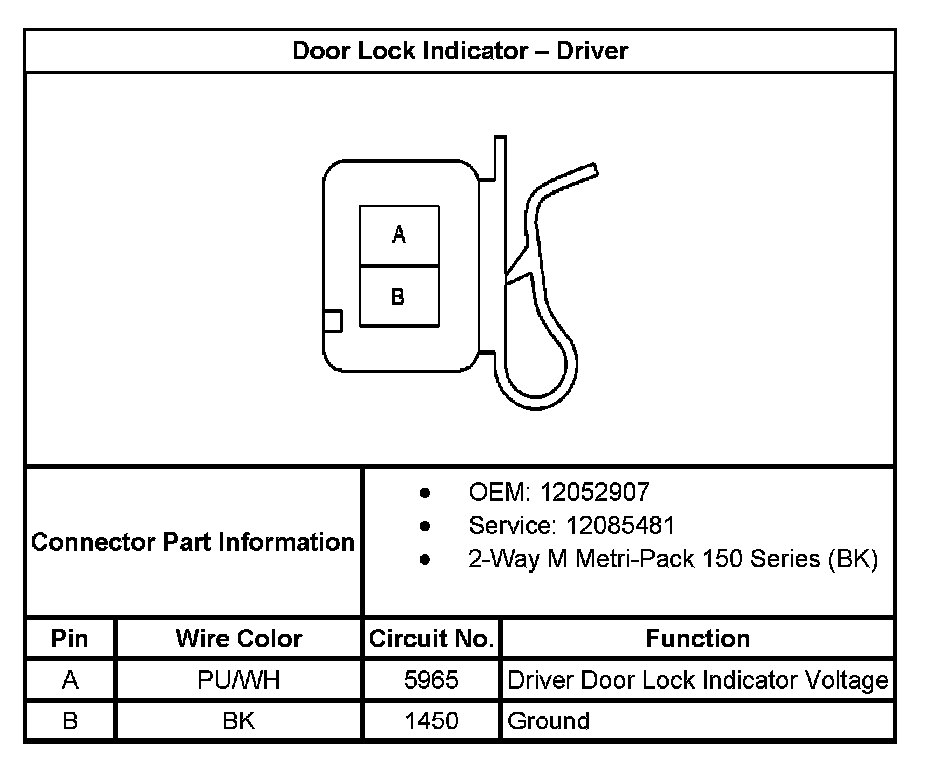

Door Lock Indicator - Driver Side:

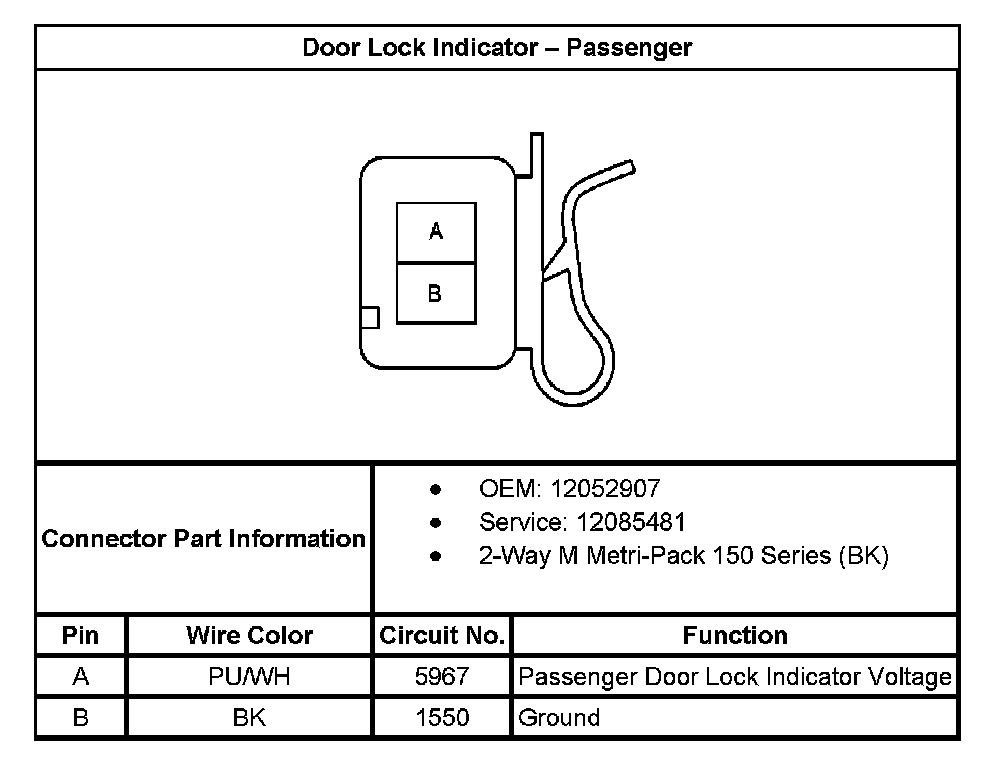

Door Lock Indicator - Passenger:

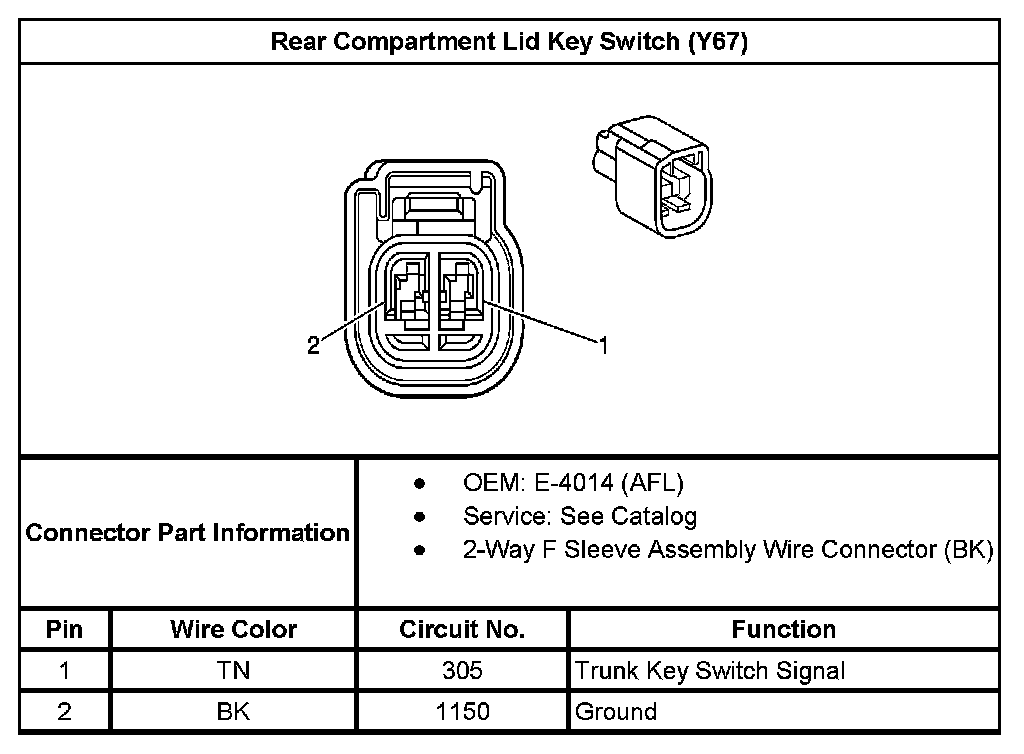

Rear Compartment Lid Key Switch (With RPO Code Y67):
