Home >> Chevrolet >> 2006 >> Corvette V8-7.0L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram

System Diagram

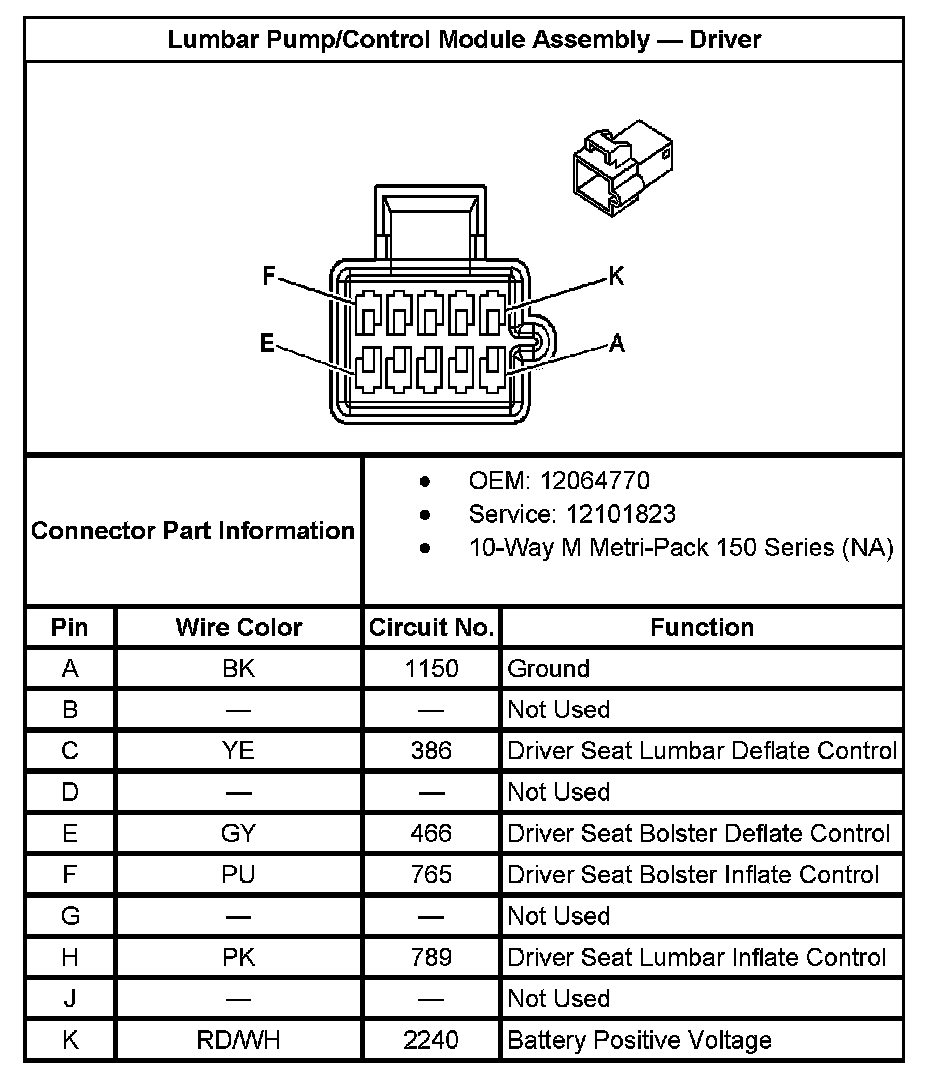

Lumbar Pump/Control Module Assembly - Driver Side:

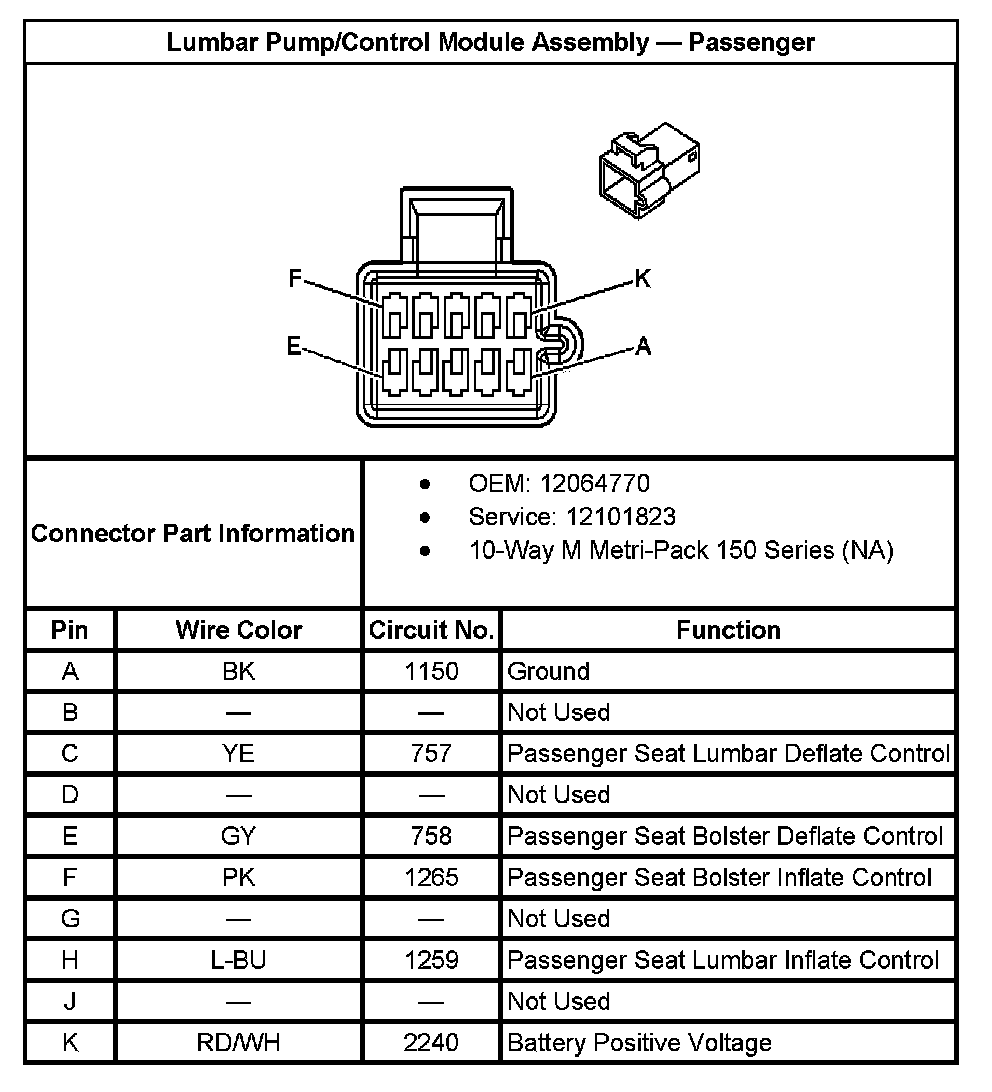

Lumbar Pump/Control Module Assembly - Passenger Side:
