TU/TD Assembly Harness J1
TU/TD Assembly Harness J1
Automatic Transmission Related Connector End Views

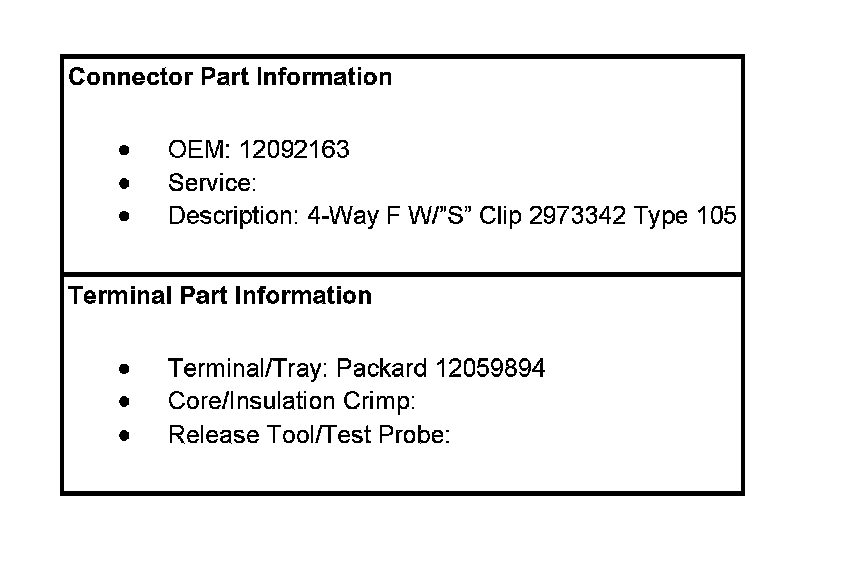

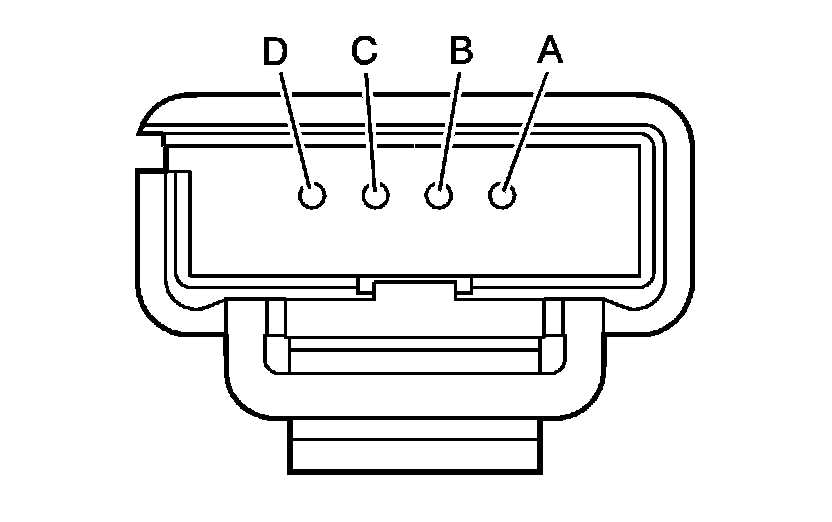

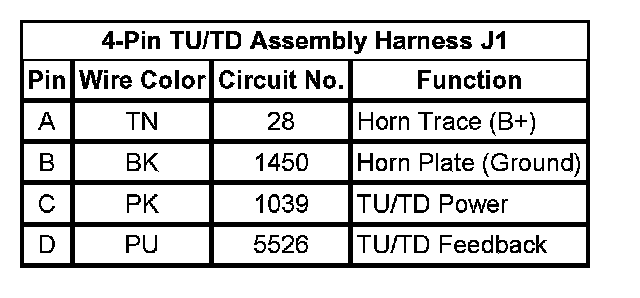

4-Pin TU/TD Assembly Harness J1:
