Navigation System Diagrams

Navigation System Schematics

Navigation System Schematics (Except Japan):

Except Japan

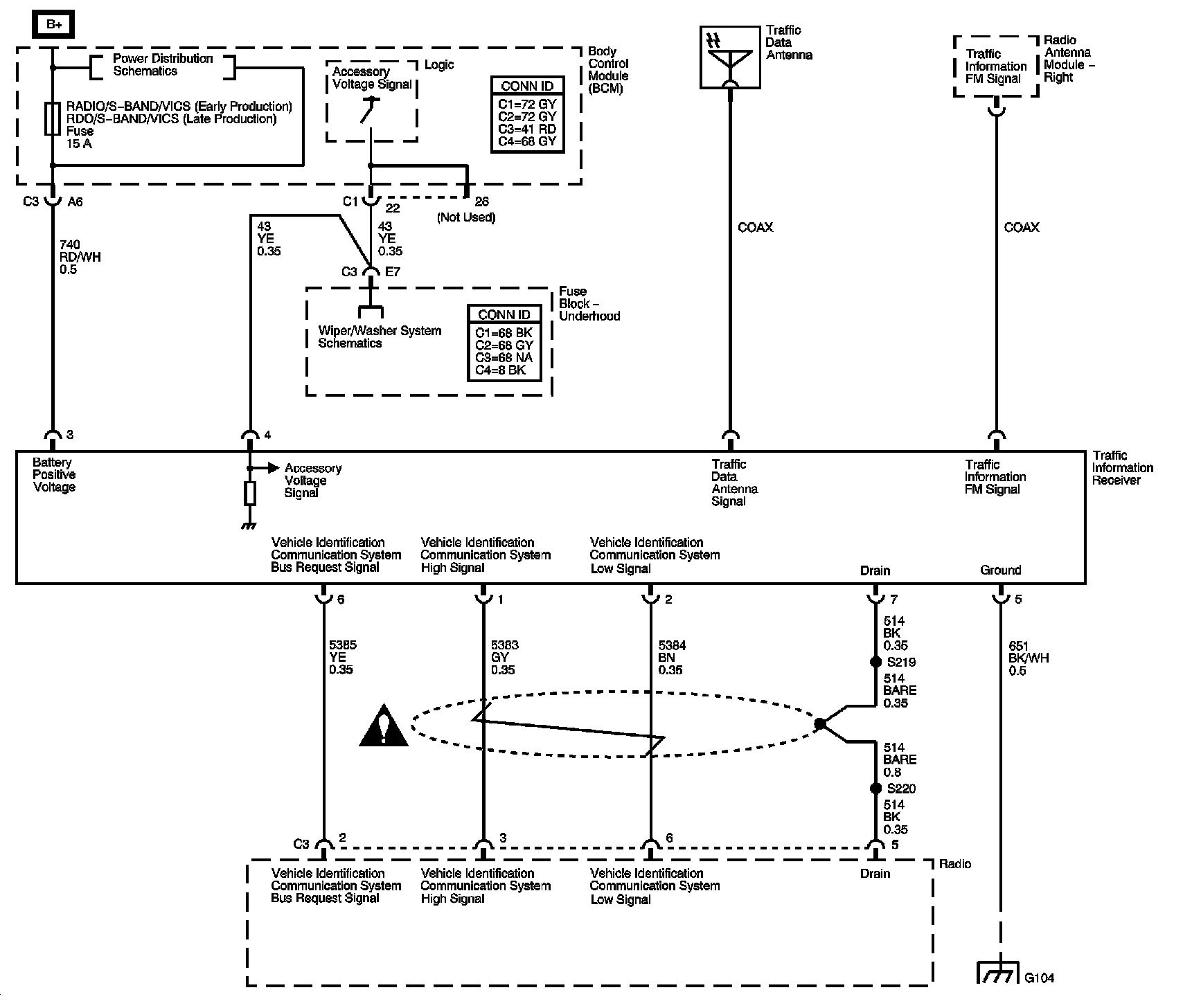

Navigation System Schematics (Japan):

Japan (UZD)


Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
