Discharge Air Temperature Sensor / Switch: Diagrams

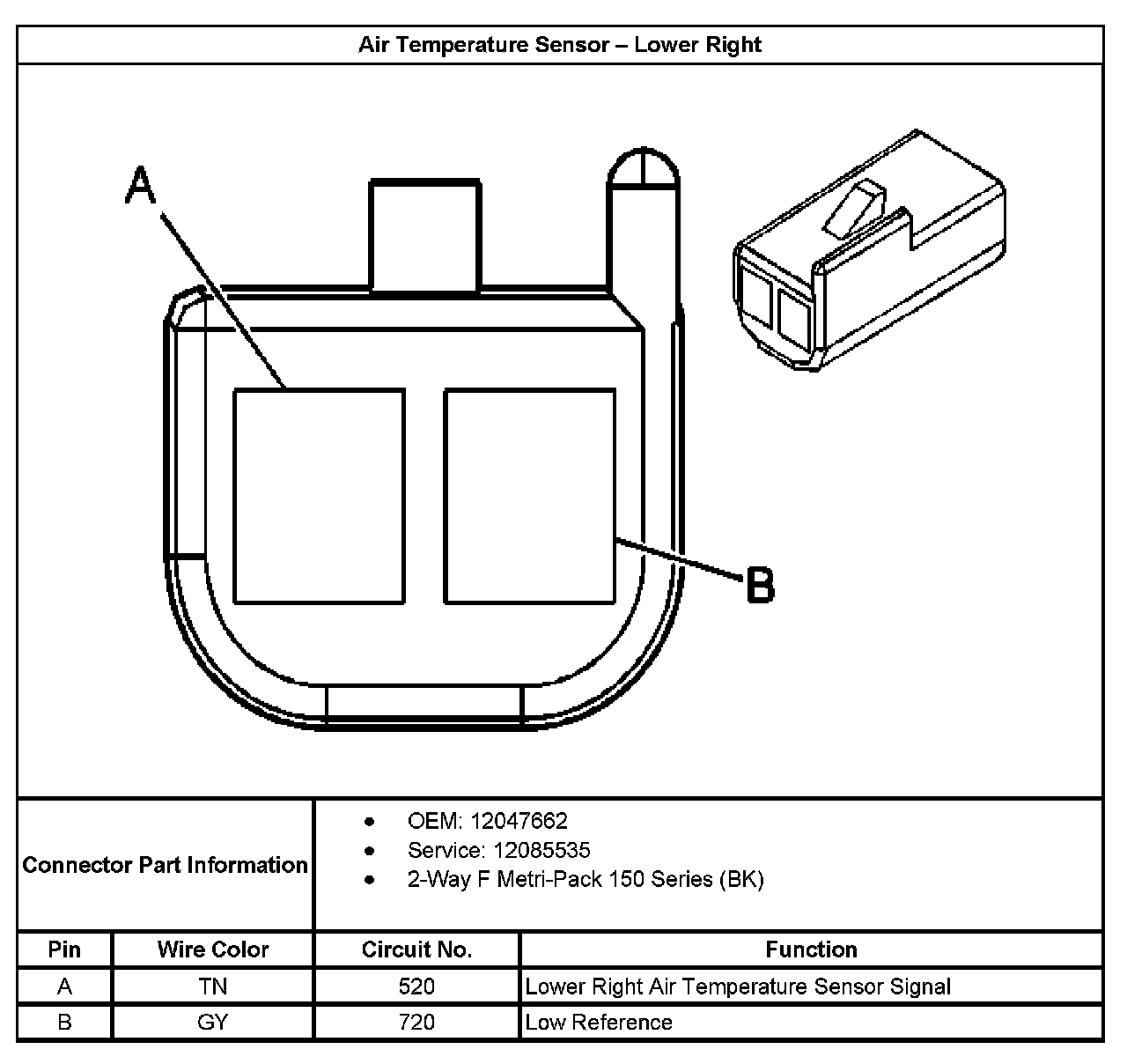

Air Temperature Sensor-Lower Right:



Air Temperature Sensor-Upper Left:

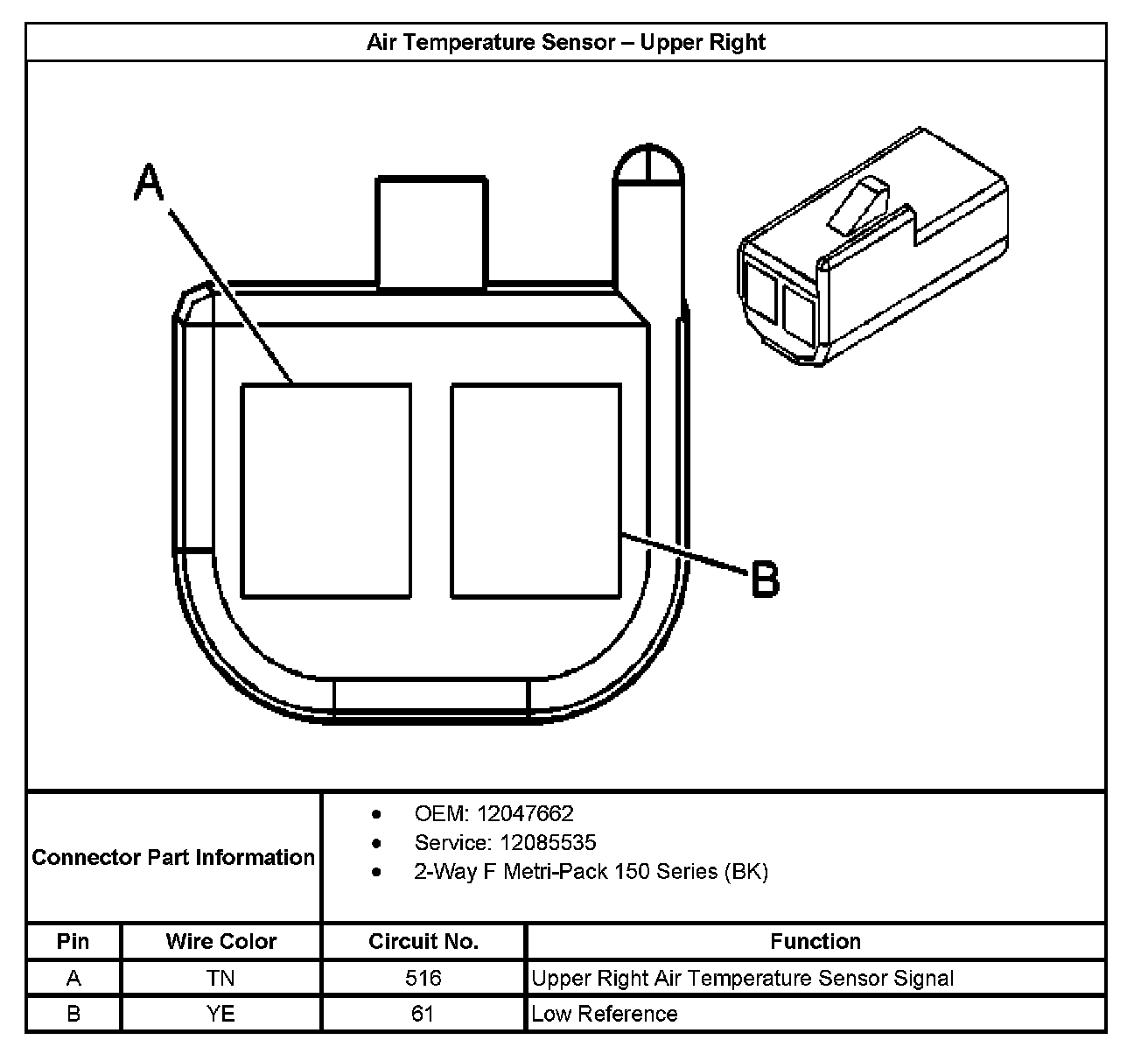

Air Temperature Sensor-Upper Right:
