TU/TD Assembly Harness J5
TU/TD Assembly Harness J5
Automatic Transmission Related Connector End Views

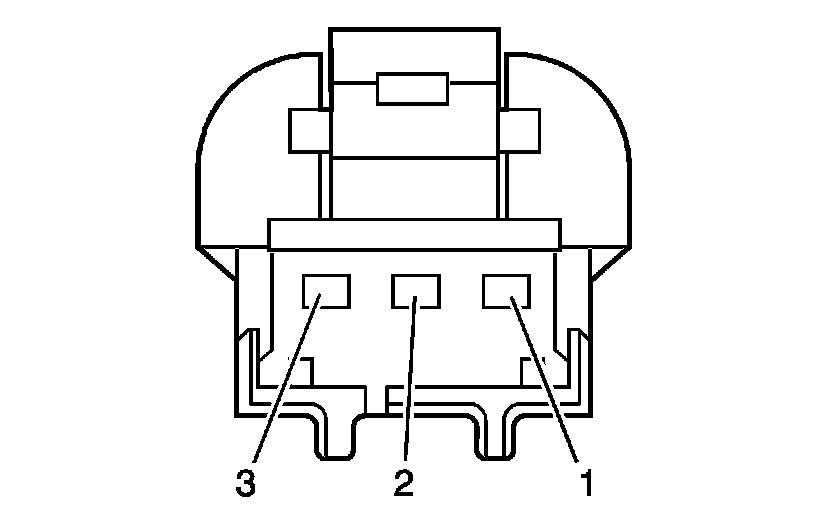

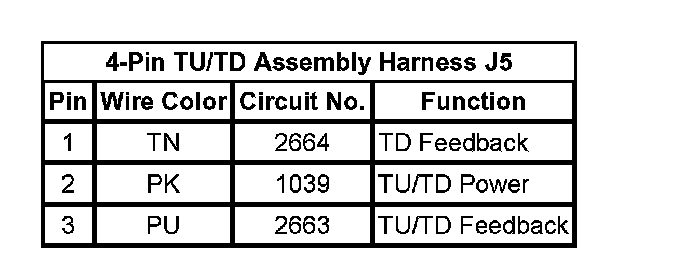

4-Pin TU/TD Assembly Harness J5:
