ABS Lamp Driver
>>
Hydraulic Brake Connector End Views (Hatchback)
Hydraulic Brake Connector End Views (Hatchback)
Hydraulic Brake Connector End Views (Hatchback)

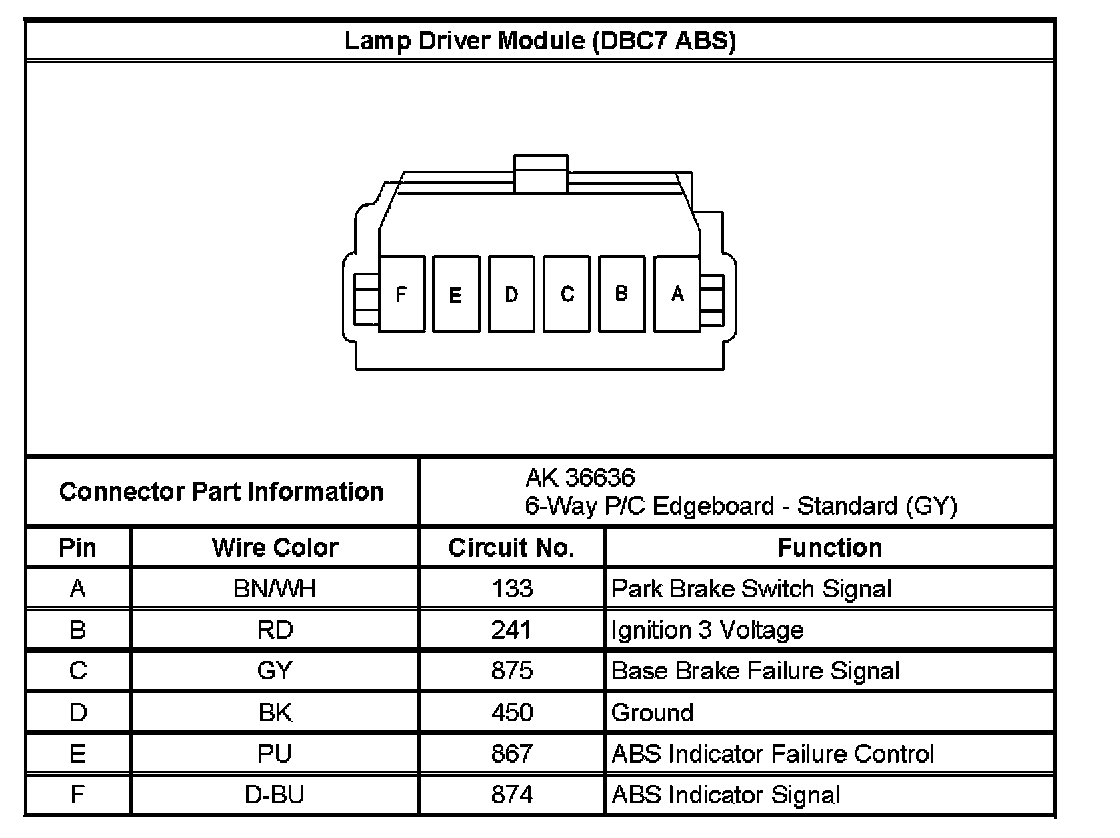

Lamp Driver Module (DBC7 ABS):

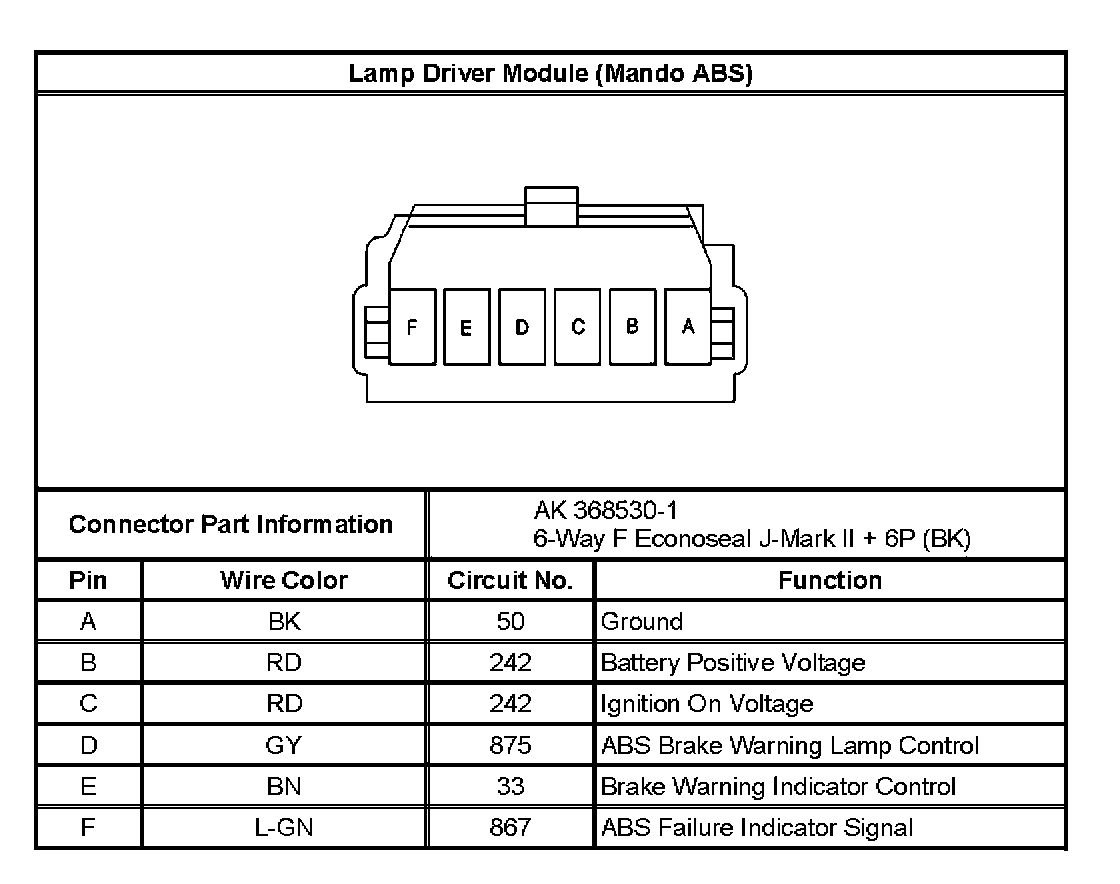

Lamp Driver Module (Mando ABS):
