Air Register: Service and Repair

Instrument Panel Air Deflector Replacement

Removal Procedure






Caution: Refer to Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the instrument panel center upper cover.

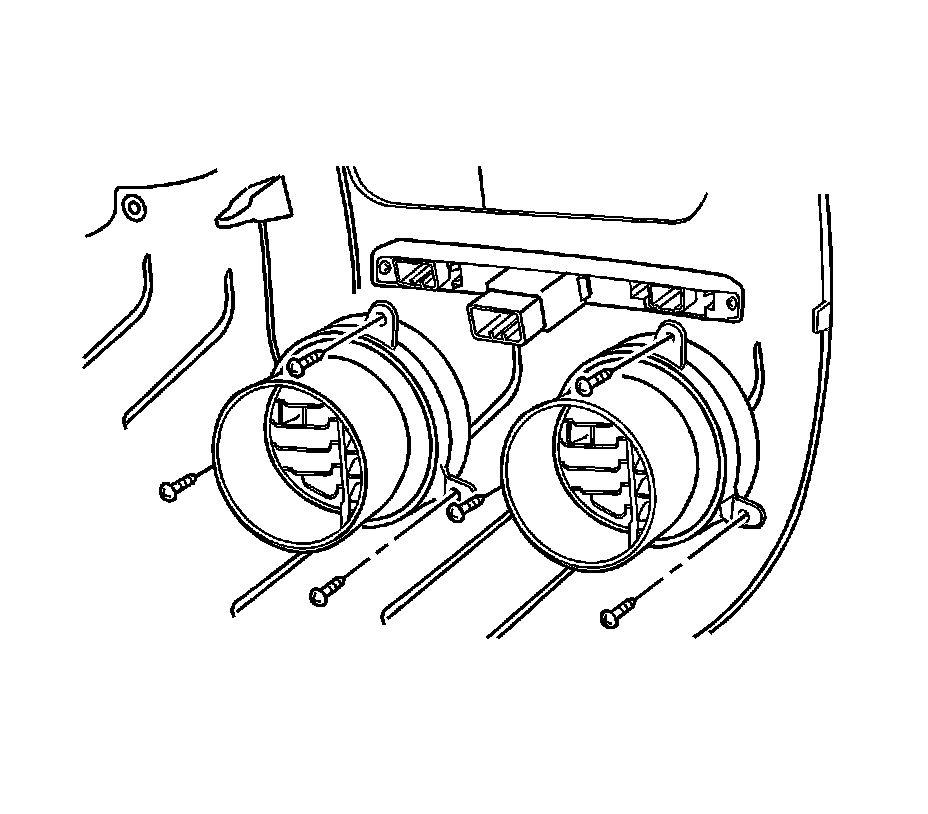

3. Remove the screws and the air deflectors.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the air deflectors with the screws.

Tighten the air deflector screws to 2 N.m (18 lb in).

2. Install the instrument panel center upper cover.
3. Connect the negative battery cable.
