Lumbar Support Inoperative



Lumbar Support Inoperative

Diagnostic Aids

The lumbar pump and control module are separate units that are attached to each other by a wire harness and a hose. They are serviced as an assembly.

TEST

Step 1 - Step 13:

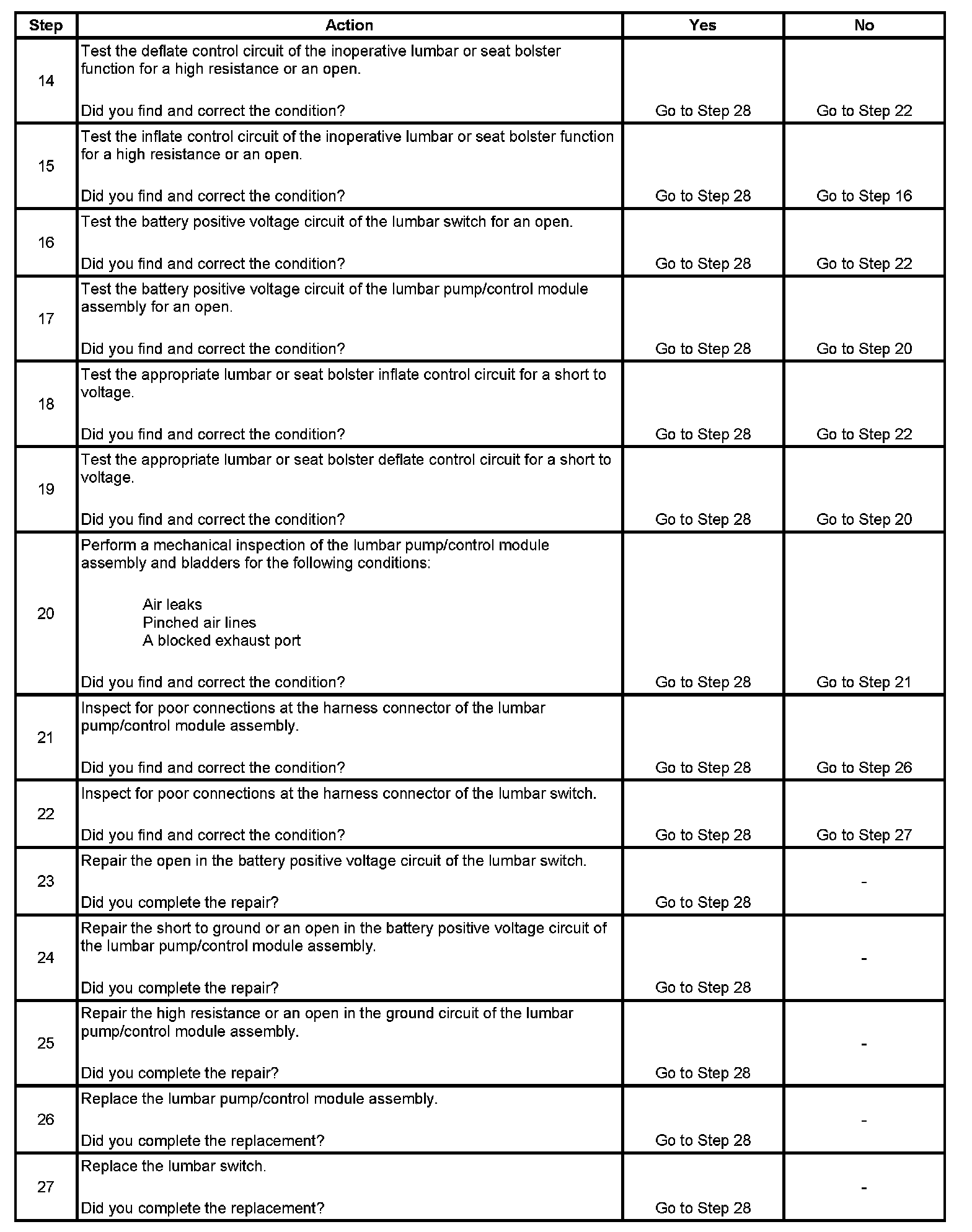

Step 14 - Step 27:




Step 28:
