Air Temperature Sensor Replacement - Upper Left Side

Air Temperature Sensor Replacement - Upper Left Side

Removal Procedure

1. Remove the instrument panel cluster (IPC).




2. Disconnect the left upper air temperature sensor electrical connector.

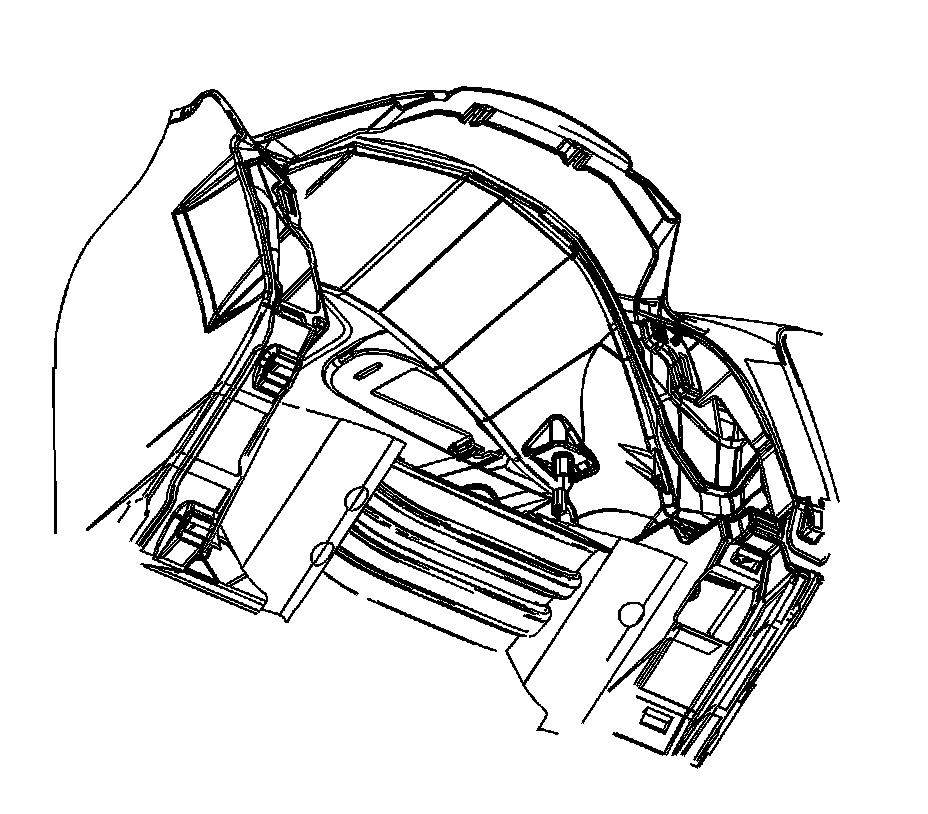

3. Remove the left upper air temperature sensor from the air distribution duct.

Installation Procedure




1. Install the left upper air temperature sensor to the air distribution duct.




2. Connect the left upper air temperature sensor electrical connector.
3. Install the IPC.
