Air Temperature Sensor Replacement - Upper Right Side

Air Temperature Sensor Replacement - Upper Right Side

Removal Procedure

1. Remove the instrument panel (I/P) assembly.

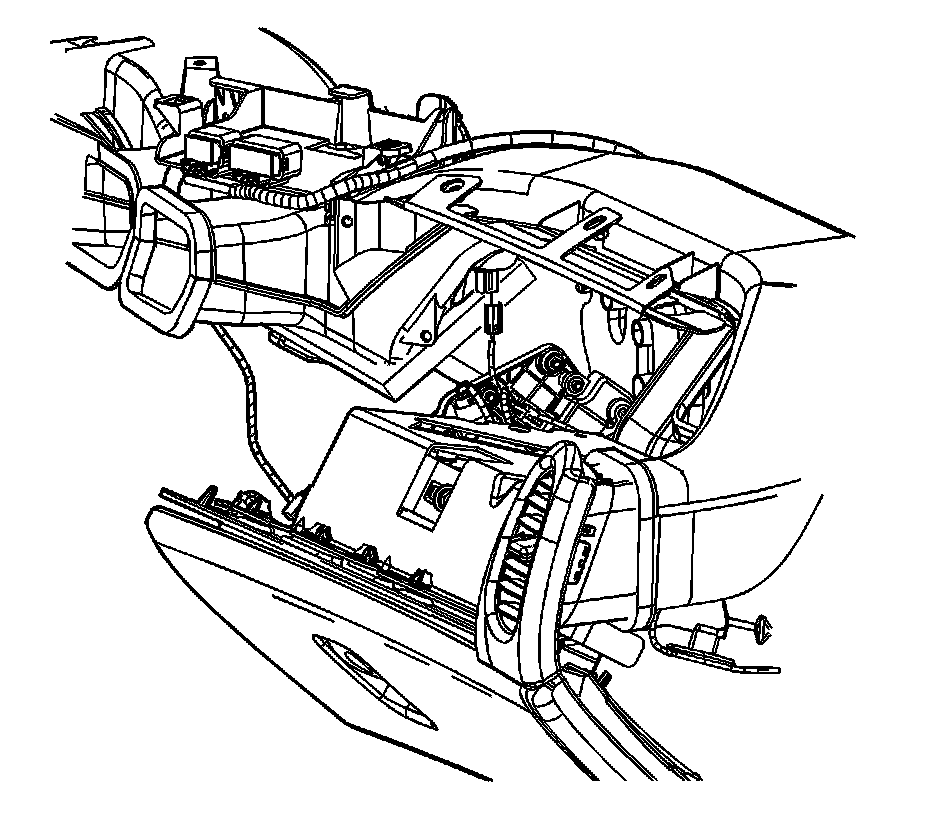

2. Disconnect the right upper air temperature sensor electrical connector.

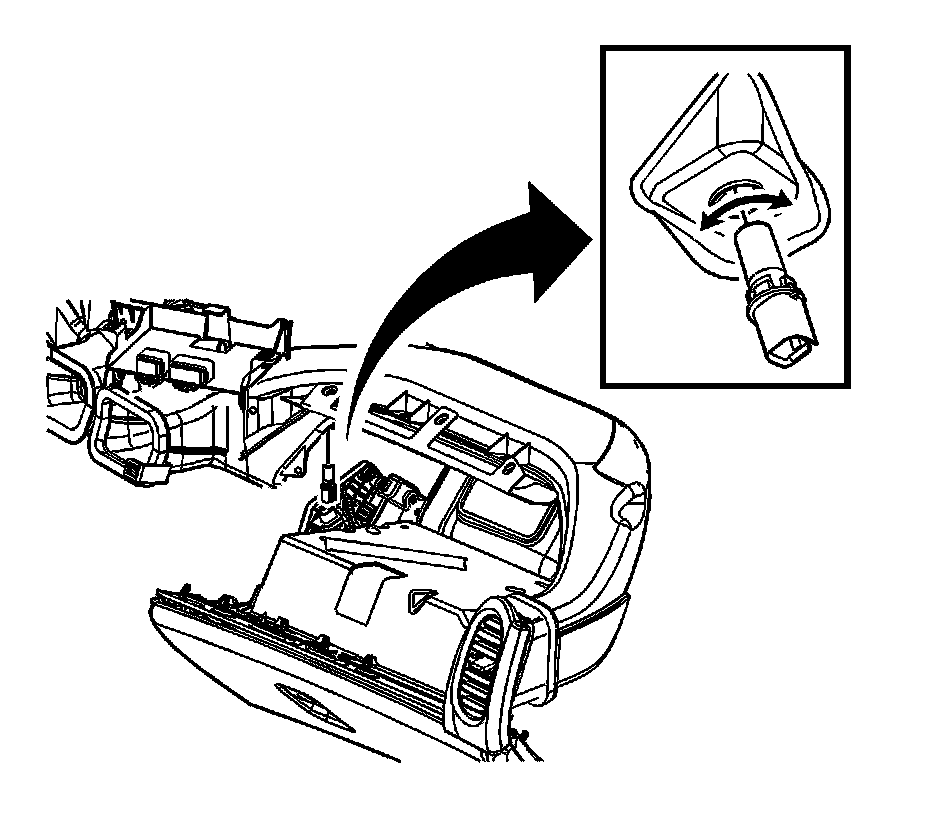

3. Remove the right upper air temperature sensor from the air distribution duct.

Installation Procedure




1. Install the right upper air temperature sensor to the air distribution duct.




2. Connect the right upper air temperature sensor electrical connector.
3. Install the I/P assembly.
