Vibration Analysis - Driveline



Vibration Analysis - Driveline

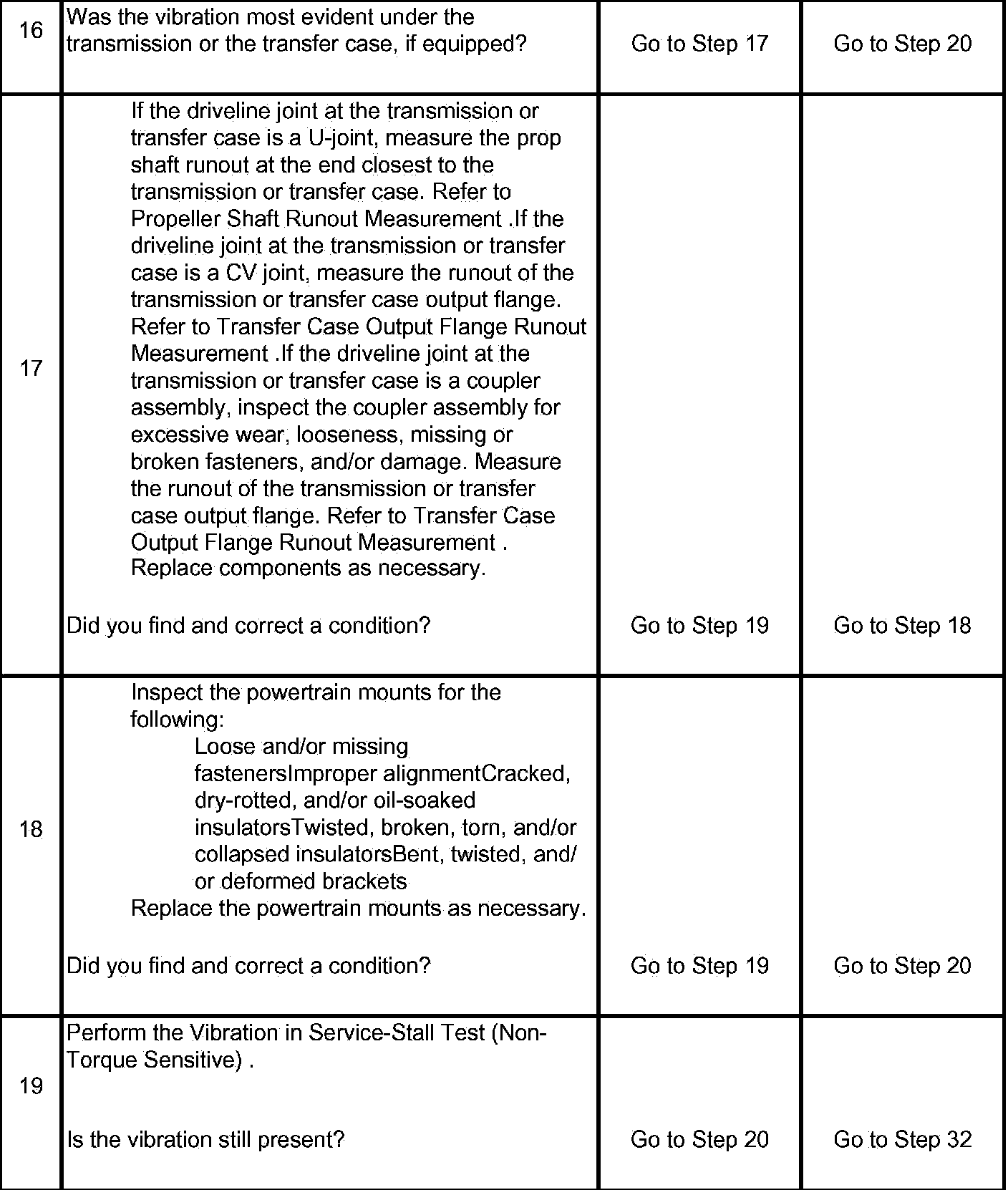

Steps 1 - 10:




Steps 11 - 15:




Steps 16 - 19:




Steps 20 - 21:




Steps 22 - 24:




Steps 25 - 30:




Steps 31 - 32:
