Instrument Panel Outer Air Outlet Deflector Replacement

Instrument Panel Outer Air Outlet Deflector Replacement

Removal Procedure

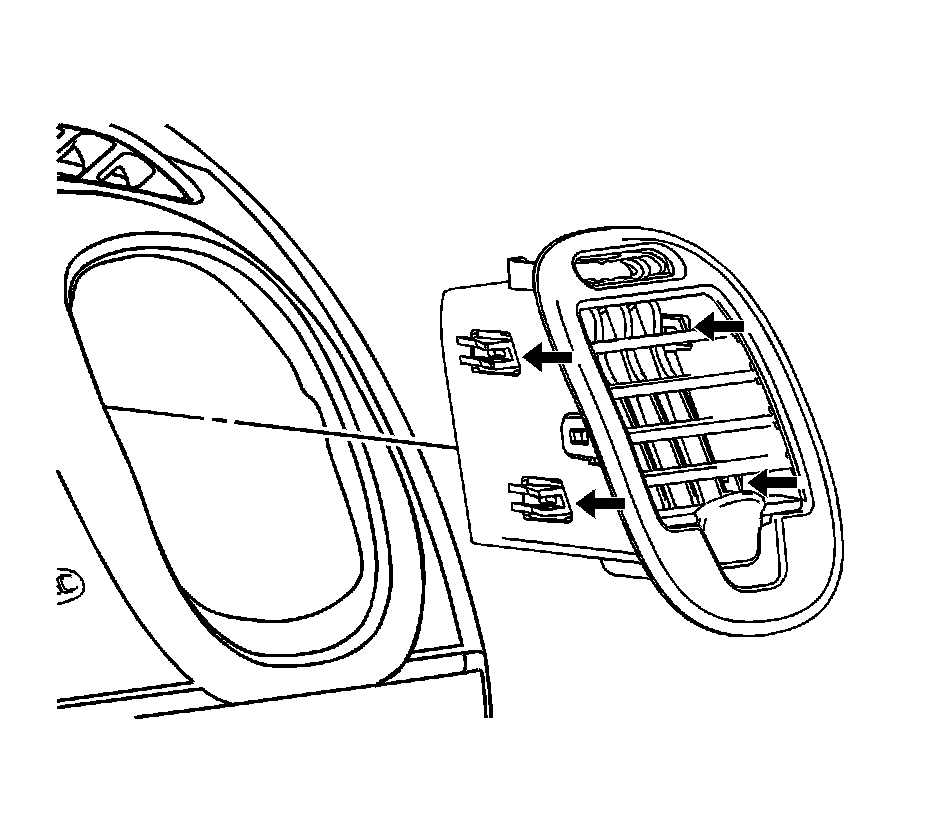

1. Use a small screwdriver and release the 4 tabs.




2. Remove the instrument panel (I/P) air outlet deflector.

Installation Procedure





Install the I/P outer deflector.
