Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2008
>>
Malibu L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Spot Lamp
Spot Lamp

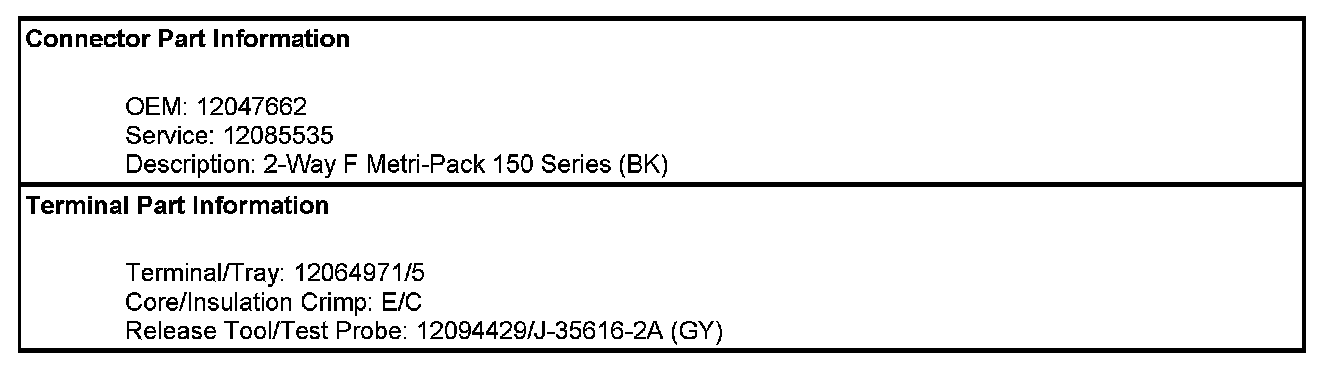

Component Connector End Views - Continued

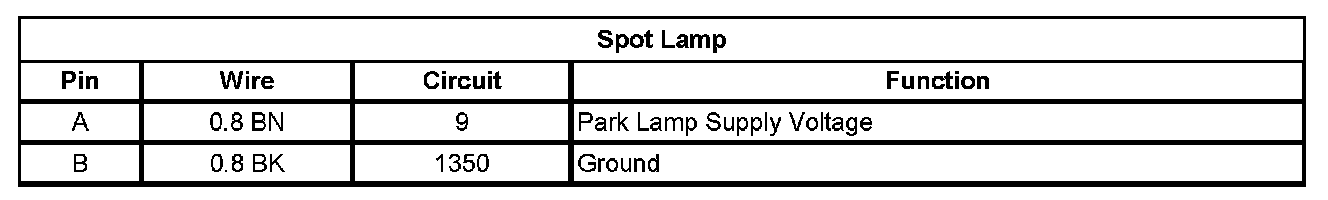

Spot Lamp
