Sun Shade



Component Connector End Views - Continued

Sunroof Shade Module (C3Y)

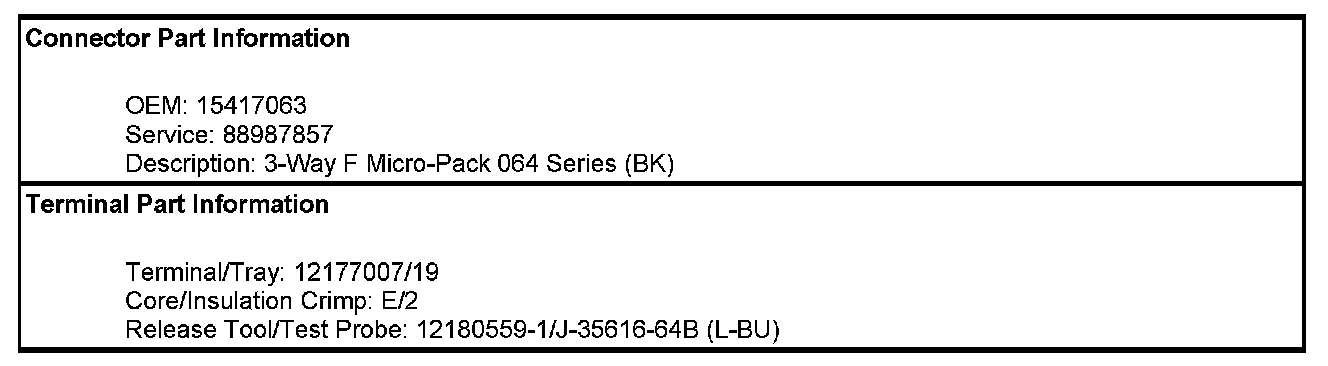

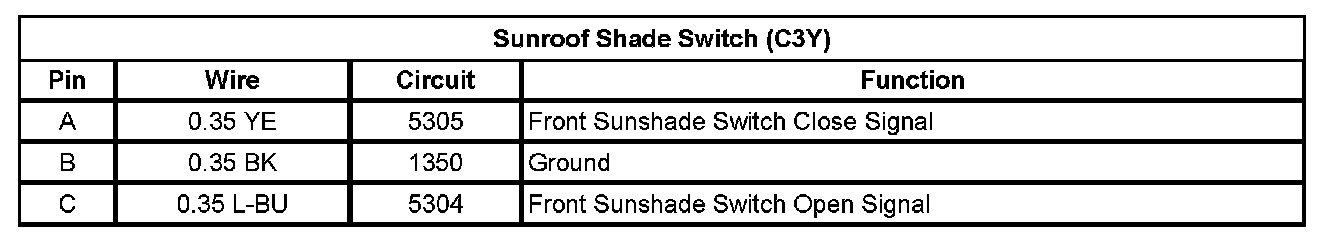

Sunroof Shade Switch (C3Y)

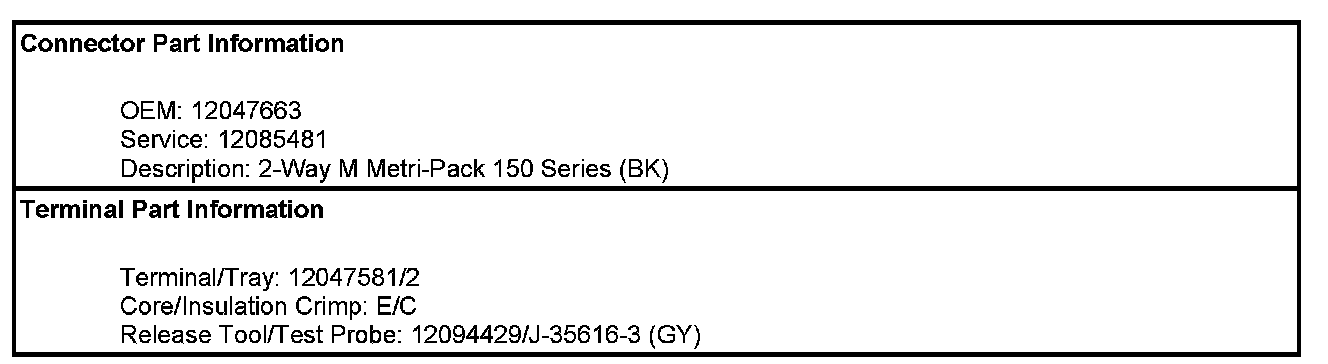

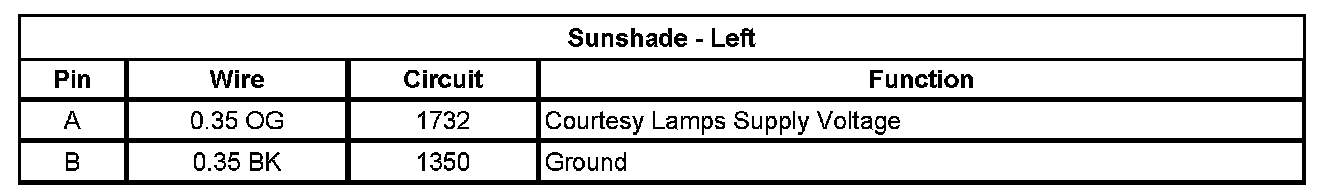

Sunshade - Left

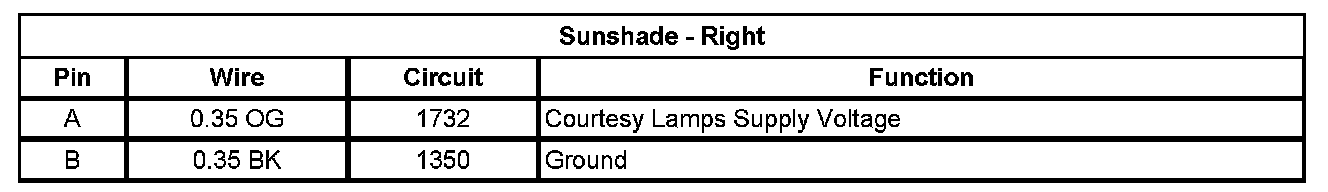

Sunshade - Right
