Air Bag(s) Arming and Disarming: Diagrams




Component Connector End Views

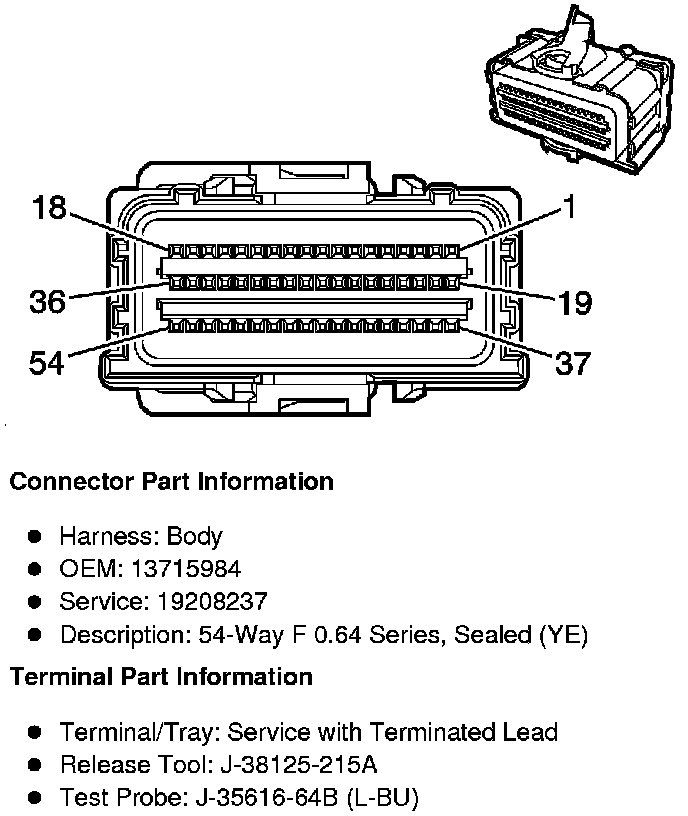

K36 Inflatable Restraint Sensing and Diagnostic Module X1





K36 Inflatable Restraint Sensing and Diagnostic Module X2
