94. Throttle Body Assembly Installation

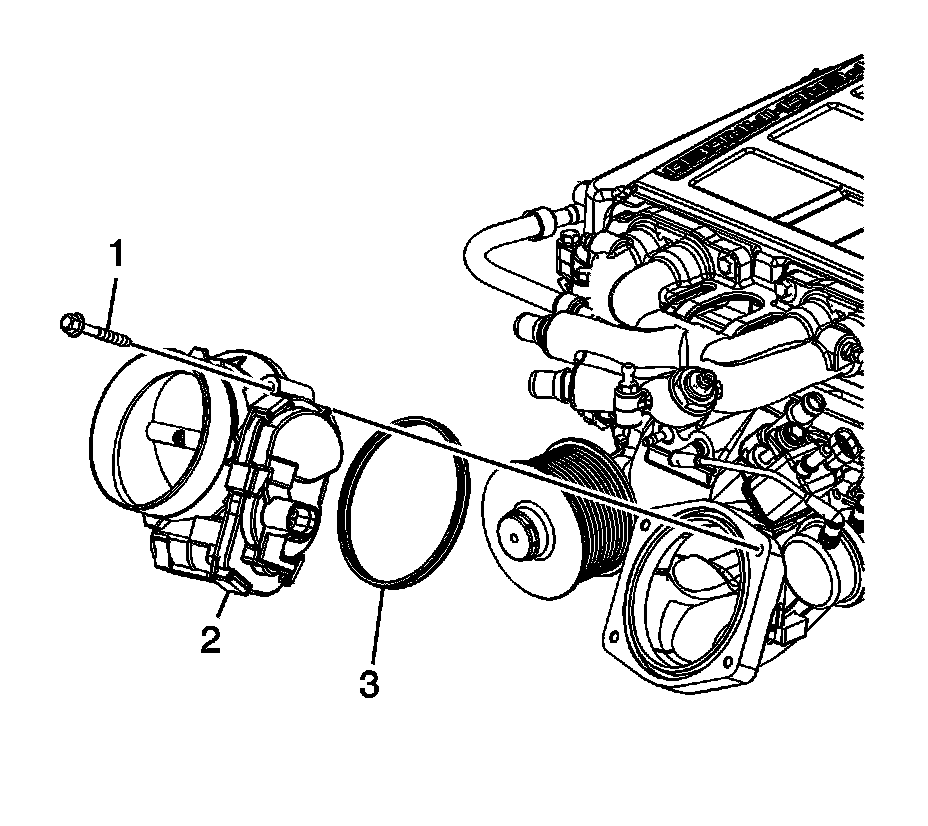

Throttle Body Assembly Installation (6.2L LS9)





Note: DO NOT use the throttle body gasket again. Install a NEW gasket during assembly.

1. Install the throttle body gasket (3) to the supercharger.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the throttle body (2) and bolts (1). Tighten the throttle body bolts to 10 Nm (89 lb in).
