Telescoping Wheel Motor: Service and Repair

Telescope Motor Assembly Replacement

Special Tools

J 42640 Steering Column Anti Rotation Pin

Removal Procedure

Warning: Refer to SIR Warning (SIR Warning).

1. Disable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair).
2. Insert J 42640 into the bottom of the lower trim cover.
3. Remove the Closeout Insulator Panel. Refer to Instrument Panel Insulator Panel Replacement (Instrument Panel Insulator Panel Replacement).

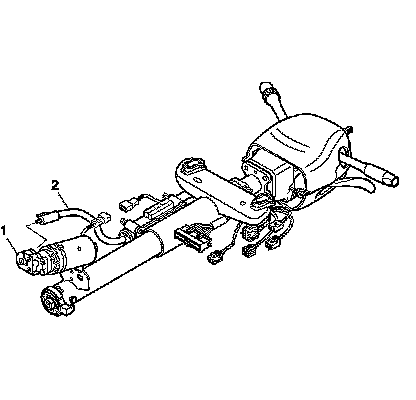

4. Disconnect the cable assembly (2) from the telescope drive motor assembly (1).

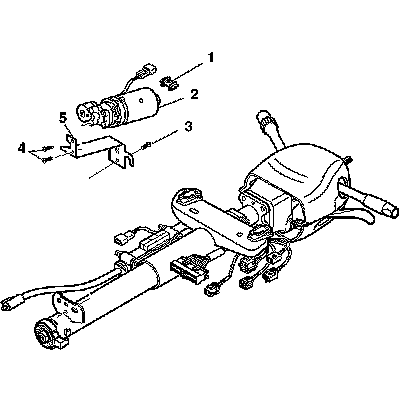

5. Remove the connector clip (1) from the telescope drive motor assembly connector (2).
6. Remove the 2 pan head tapping screws (4) from the telescope drive bracket (5).
7. Remove the telescope drive motor assembly (2) from the telescope drive bracket (5).
8. Remove the pan head tapping screw (3) from the telescope drive bracket (5).
9. Remove the telescope drive bracket (5) from the jacket assembly.

Installation Procedure




1. Install the telescope drive bracket (5) to the jacket assembly.
2. Install the pan head tapping screw (3) to the telescope drive bracket (5).
Caution: Refer to Fastener Caution (Fastener Caution).

Install the guide retainer bolts.

Tighten the screw to 7 Nm (62 lb in).

3. Install the telescope drive motor assembly (2) to the telescope drive bracket (5).
4. Install the 2 pan head tapping screws (4) to the telescope drive bracket (5).

Tighten the screws to 7 Nm (62 lb in).

5. Install the connector clip (1) to the telescope drive motor assembly connector (2).




Warning: Refer to SIR Inflator Module Coil Warning (SIR Inflator Module Coil Warning).

6. Connect the cable assembly (2) to the telescope drive motor assembly connector (1).
7. Install the Closeout Insulator Panel. Refer to Instrument Panel Insulator Panel Replacement (Instrument Panel Insulator Panel Replacement).
8. Enable the SIR system. Refer to SIR Disabling and Enabling (Service and Repair).
9. Remove J 42640 from the bottom of the lower trim cover.
