Engine: Locations
Disassembled Views (6.2L LS3)
Intake Manifold/Upper Engine
1 - Evaporative Emission (EVAP) Canister Purge Tube
2 - EVAP Canister Purge Solenoid Valve
3 - EVAP Tube Clip
4 - EVAP Canister Purge Tube
5 - EVAP Purge Valve Bracket
6 - Bolt
7 - Bolt
8 - Fuel Rail Ground Strap
9 - Fuel Rail with Injectors
10 - Bolt
11 - Fuel Injection Fuel Rail Stop Bracket
12 - Intake Manifold
13 - Seal
14 - Intake Manifold Gasket
15 - Engine Coolant Air Bleed Plug
16 - Oil Pressure Sensor
17 - Washer
18 - Bolt
19 - Valley Cover
20 - Valley Cover Gasket
21 - Engine Block
22 - Seal
23 - Positive Crankcase Ventilation (PCV) Hose - Dirty Air
24 - Seal
25 - Engine Coolant Air Bleed Pipe
26 - Bolt
27 - Bolt
28 - Throttle Body
29 - Throttle Body Gasket
30 - Seal
31 - Manifold Absolute Pressure (MAP) Sensor
32 - MAP Sensor Bolt
Cylinder Head/Upper Engine
100 - Engine Block
209 - Valve Lifter
210 - Valve Lifter Guide
211 - Bolt
212 - Pushrod
213 - Valve Rocker Arm
214 - Bolt
215 - Valve Rocker Arm Pivot Support
216 - Core Hole Plug
217 - Cylinder Head Gasket
218 - Cylinder Head
220 - Cylinder Head Bolt - M11
221 - Cylinder Head Bolt - M8
222 - Valve Stem Oil Seal
223 - Valve Spring
224 - Valve Spring Cap
225 - Valve Stem Key
226 - Core Hole Plug
227 - Intake Valve
228 - Exhaust Valve
229 - Cylinder Head Plug
230 - Cylinder Head Locating Pin
422 - O-ring
423 - Oil Fill Tube
424 - Oil Fill Cap
450 - O-ring
504 - Valve Rocker Arm Cover Gasket
504 - Valve Rocker Arm Cover Gasket
505 - Valve Rocker Arm Cover
505 - Valve Rocker Arm Cover
515 - Bolt Grommet
516 - Bolt
558 - Plug
600 - Exhaust Manifold
601 - Exhaust Manifold Gasket
602 - Bolt
603 - Exhaust Manifold Heat Shield
604 - Bolt
605 - Stud
700 - Positive Crankcase Ventilation (PCV) Hose - Fresh Air
719 - Ignition Coil Bracket
720 - Stud
721 - Ignition Coil Wire Harness Assembly
722 - Ignition Coil
723 - Bolt
724 - Spark Plug Wire
725 - Coolant Temperature Sensor (CTS)
726 - Spark Plug

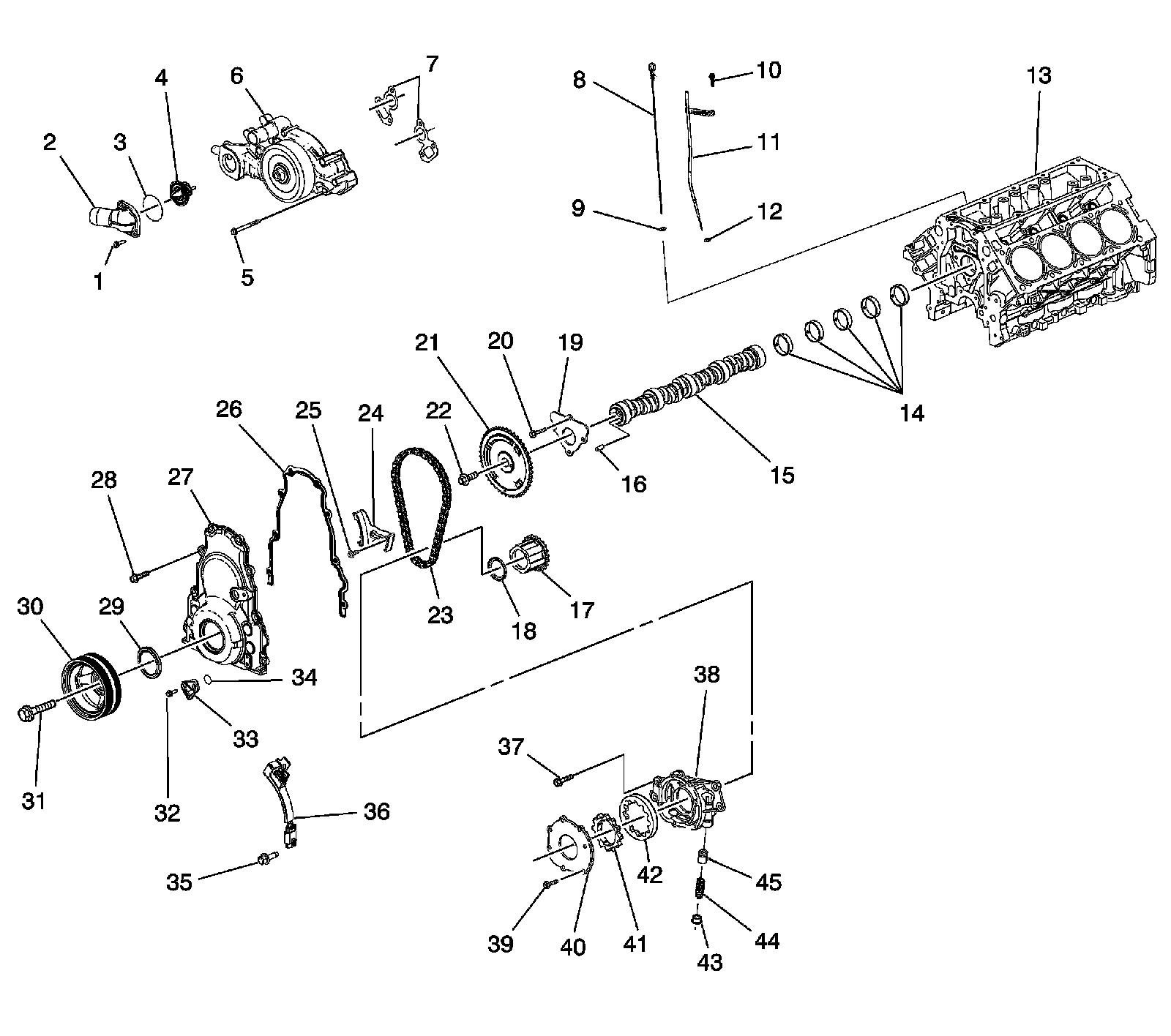

Front of Engine
1 - Bolt
2 - Water Inlet Housing
3 - O-ring
4 - Thermostat
5 - Bolt
6 - Water Pump
7 - Water Pump Gasket
8 - Oil Level Indicator
9 - O-ring
10 - Bolt
11 - Oil Level Indicator Tube
12 - O-ring
13 - Engine Block
14 - Camshaft Bearings
15 - Camshaft
16 - Camshaft Sprocket Locating Pin
17 - Crankshaft Sprocket
18 - Crankshaft Balancer Washer
19 - Camshaft Retainer
20 - Bolt
21 - Camshaft Sprocket
22 - Bolt
23 - Timing Chain
24 - Timing Chain Tensioner
25 - Bolt
26 - Engine Front Cover Gasket
27 - Engine Front Cover
28 - Bolt
29 - Crankshaft Front Oil Seal
30 - Crankshaft Balancer
31 - Bolt
32 - Bolt
33 - Camshaft Position (CMP) Sensor
34 - O-ring
35 - Bolt
36 - CMP Sensor Wire Harness
37 - Bolt
38 - Oil Pump
39 - Bolt
40 - Oil Pump Housing Cover
41 - Oil Pump Drive Gear
42 - Oil Pump Driven Gear
43 - Oil Pump Housing Plug
44 - Oil Pump Pressure Relief Valve Spring
45 - Oil Pump Pressure Relief Valve
Rear of Engine
1 - Engine Block
2 - Crankshaft Rear Oil Seal Housing Gasket
3 - Crankshaft Rear Oil Seal Housing
4 - Crankshaft Rear Oil Seal Housing Bolt
5 - Crankshaft Rear Oil Seal
6 - Flex Plate - Automatic Transmission (L99)
7 - Flex Plate Bolt - Automatic Transmission (L99)
8 - Clutch Pressure Plate Bolt - Manual Transmission (LS3)
9 - Clutch Pressure Plate - Manual Transmission (LS3)
10 - Clutch Driven Plate - Manual Transmission (LS3)
11 - Clutch Pressure Plate Locating Pin - Manual Transmission (LS3)
12 - Flywheel - Manual Transmission (LS3)
13 - Transmission Pilot Bearing - Manual Transmission (LS3)
Lower Engine Assembly
1 - Engine Block
2 - Piston Pin
3 - Piston Pin Retainer
4 - Piston Rings
5 - Piston
6 - Connecting Rod
7 - Connecting Rod Bearings
8 - Connecting Rod Cap
9 - Connecting Rod Bolt
10 - Crankshaft Main Bearing
10 - Crankshaft Main Bearing
11 - Crankshaft Thrust Bearing
11 - Crankshaft Thrust Bearing
12 - Crankshaft Sprocket Key
13 - Crankshaft
14 - Transmission Pilot Bearing - Manual Transmission
15 - Crankshaft Bearing Cap
16 - Crankshaft Bearing Cap Bolt - M8
17 - Crankshaft Bearing Cap Stud - M10
18 - Crankshaft Bearing Cap Bolt - M10
19 - Crankshaft Oil Deflector
20 - Oil Pan Gasket
21 - Crankshaft Oil Deflector Nut
22 - Oil Pump Screen
23 - Oil Pump Screen Nut
24 - Oil Pump Screen O-ring
25 - Oil Pump Screen Bolt
26 - Engine Closeout Cover Bolt
27 - Engine Closeout Cover - Right
28 - Oil Pan Baffle Bolt
29 - Oil Pan Baffle
30 - Oil Level Sensor
31 - Oil Level Sensor O-ring
32 - Oil Pan
33 - Oil Pan Bolt - M8
34 - Oil Pan Drain Plug O-ring Seal
35 - Oil Pan Drain Plug
36 - Oil Filter
37 - Oil Filter Fitting
38 - Oil Pan Bolt - M6
39 - Washer
40 - Active Fuel Management Oil Pressure Relief Valve
41 - Engine Oil Cooler Coolant Fitting
42 - Engine Oil Cooler-to-Oil Pan Bolt - M8
43 - Engine Oil Cooler Core
44 - Engine Oil Cooler Core-to-Housing Bolt
45 - Engine Oil Cooler Housing
46 - Engine Oil Cooler Gasket
47 - Engine Oil Cooler-to-Oil Pan Bolt - M6
48 - Engine Oil Cooler Core Seal
49 - Oil Pan Cover - Left
50 - Oil Pan Cover Bolt
Engine Block Plugs/Sensors
100 - Engine Block
100 - Engine Block
101 - Oil Gallery Plug - Front
110 - O-Ring
111 - Oil Gallery Plug - Rear
112 - Oil Gallery Plug - Side
113 - Washer
114 - Engine Coolant Heater
115 - Washer
116 - Oil Gallery Plug - Side
117 - Washer
130 - Transmission Housing Locating Pin
145 - Washer
146 - Engine Block Coolant Drain Hole Plug
701 - Crankshaft Position (CKP) Sensor
702 - O-Ring
718 - Knock Sensor
718 - Knock Sensor
739 - Bolt
739 - Bolt
750 - CKP Sensor Bolt
Oil Pump Assembly
408 - Bolt
409 - Oil Pump Housing Cover
410 - Oil Pump Drive Gear
412 - Oil Pump Driven Gear
413 - Oil Pump
414 - Oil Pump Pressure Relief Valve
415 - Oil Pump Pressure Relief Valve Spring
416 - Oil Pump Housing Plug
