Part 1 of 2

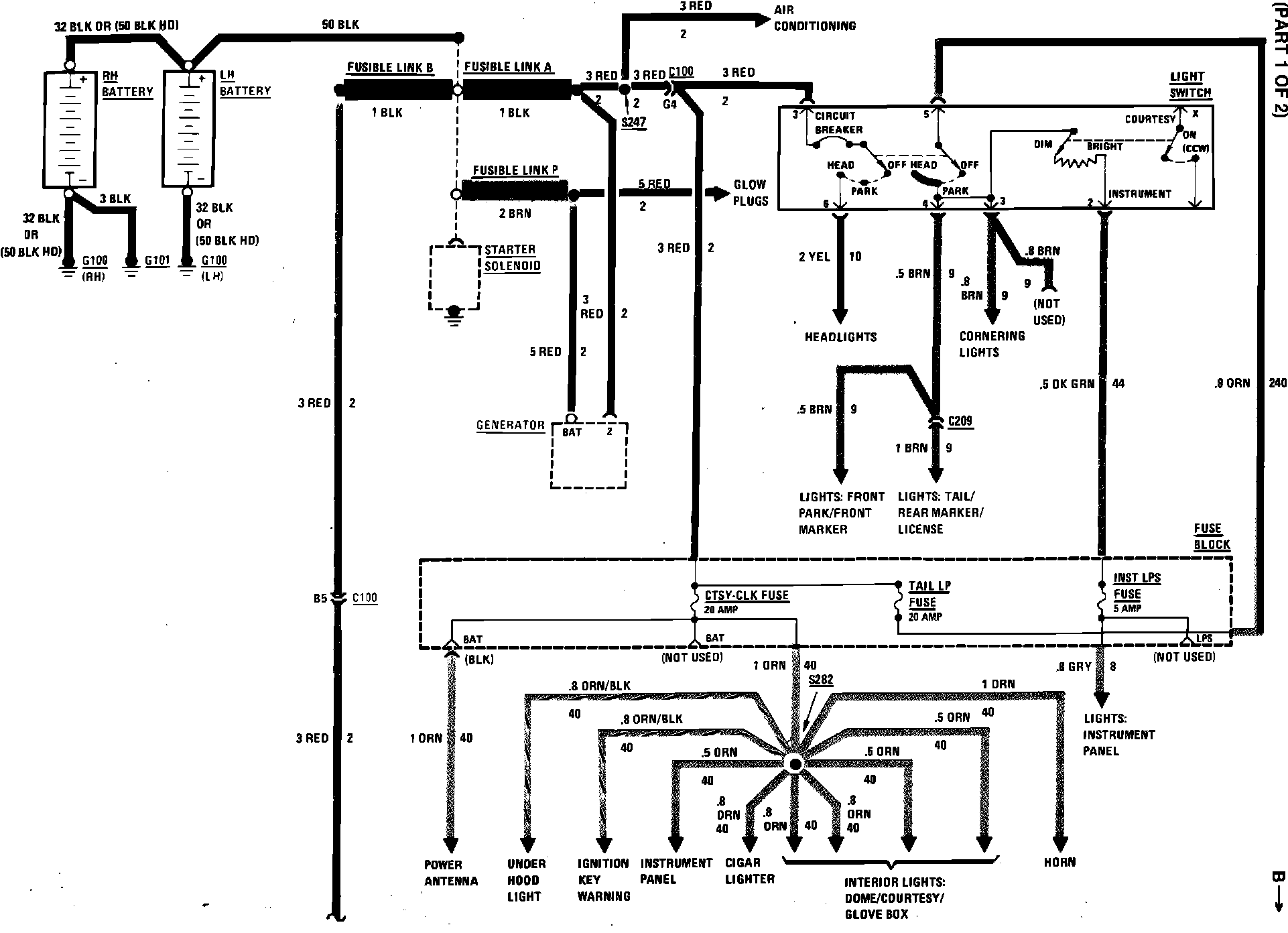

Fig. 385 Power Distribution (Part 1 Of 2). 1984 Caballero, El Camino & Monte Carlo W/Diesel:
