Exterior - Gap Between Emblem and Side Molding
87chevy23Number: 88-48
Section: 10
Date: December, 1987
SUBJECT: SERIES EMBLEM TO BODY SIDE MOLDING GAP
MODELS: 1988 C/K
Some 1988 C/K models may have a gap between the series emblem and the body side molding on the front door. If this gap exists, it can be eliminated by performing the following procedure:
^ Remove series emblem from the body side molding.
Note: Removal is accomplished by pulling or prying.
^ Clean all dirt, oil and grease from the back of the series emblem and the body side molding.

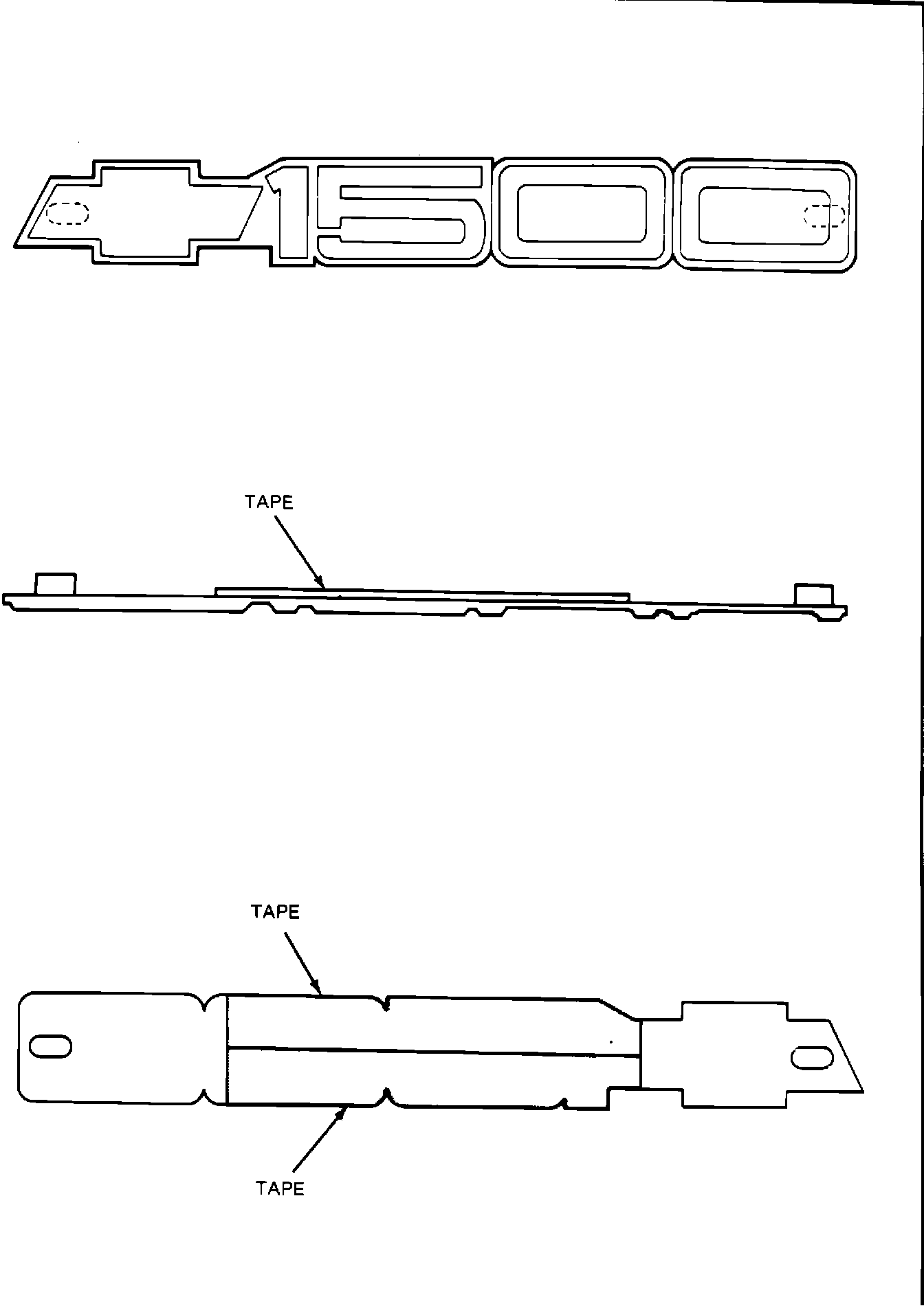

Figure No. 1:
^ Using 3M tape P/N 6379 or 6380 (or equivalent), cut two pieces three inches long.
^ Apply the two pieces of tape to the back of the series emblem as shown in Figure No. 1.
^ Remove protective backing from each piece and reattach the emblem to the door.
^ Using a roller, firmly press the emblem to the body side molding several times to ensure full tape contact.
^ Repeat this procedure on the opposite door if this condition exists.
