Cylinder Head Bolts

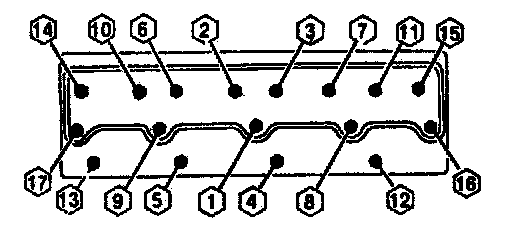

In the sequence shown (refer to image):
A.
Torque all bolts to
20 ft. lbs.
B.
Turn an additional
90°
