Cruise Control Servo Cable: Service and Repair

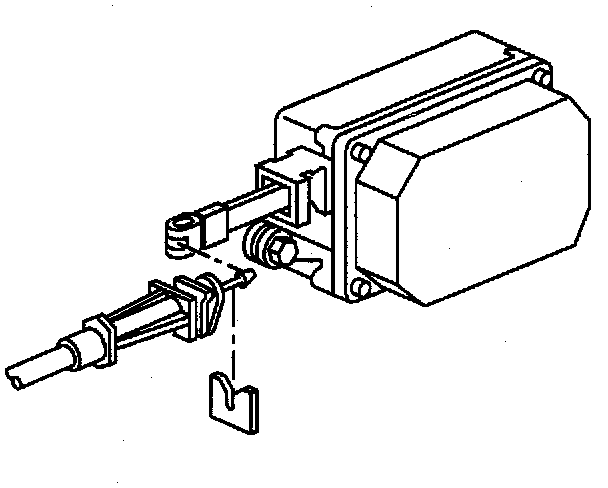

Cruise Control Cable To Module Ribbon Connection:

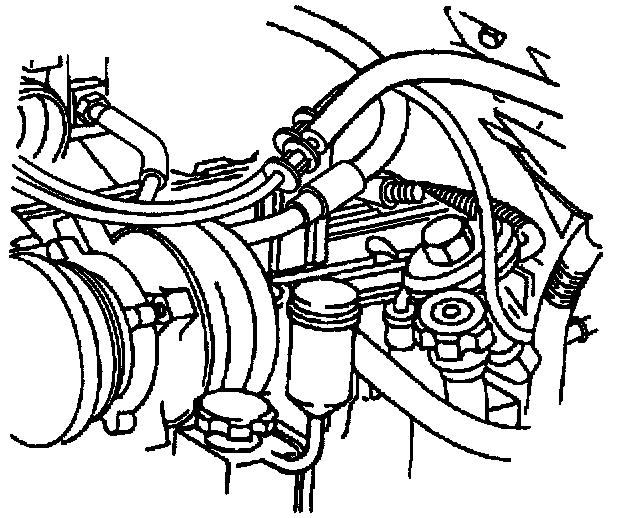

Cruise Control Cable To Module Connection:

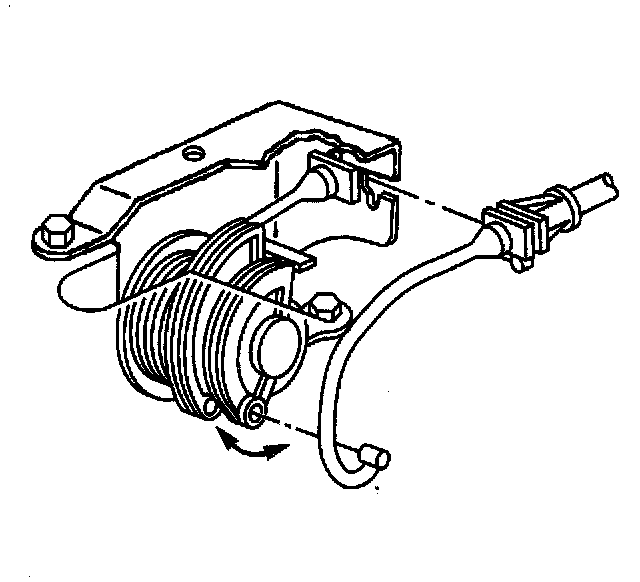

Cruise Control Cable To Throttle Cam Lever Connection:

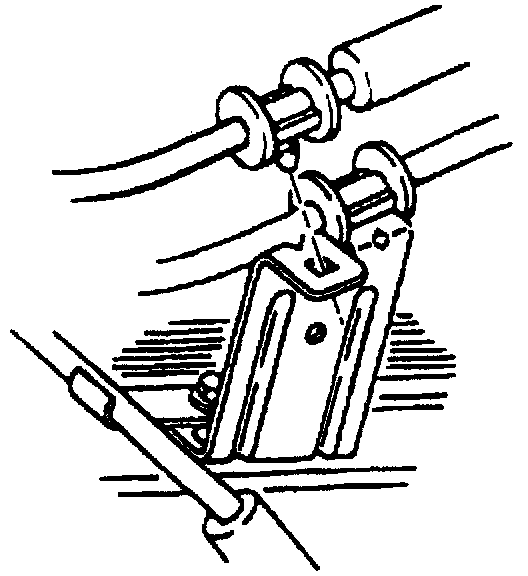

Cruise Control Cable Locator Clip:

REMOVE OR DISCONNECT
1. Cruise control cable locator clip from the rectangular hole in the valve rocker arm cover bracket.
2. Cruise control cable engine-end fitting from the rectangular slot In the engine throttle bracket.
3. Cruise control cable slug from the throttle cam lever.
^ Rotate the throttle cam lever to release the cruise control cable slug from the slot in the throttle cam lever.
4. Cruise control cable fitting from the cruise control module.
5. Cruise control cable bead from the fitting on the cruise control module ribbon.
6. Cruise control cable from the vehicle.
^ Open the splash shield cover to remove the cable from the vehicle.

Cruise Control Cable To Module Ribbon Connection:

Pulling Cruise Control Cable Taut:

Cruise Control Cable To Module Connection:

Cruise Control Cable To Throttle Cam Lever Connection:

Routing Cruise Control Cable Over Refrigerant Line:

Cruise Control Cable Locator Clip:

INSTALL OR CONNECT
1. Remove and discard the plastic cable retainer.
2. Cruise control cable bead to the fitting on the cruise control module ribbon.
3. Pull the cruise control cable until the cable is taut.
4. If necessary, turn the cruise control cable at the engine-end fitting to straighten the cruise control module ribbon. The ribbon must be flat and vertical.
5. Slide the cruise control cable conduit over the ribbon and install the tanks to the cruise control module housing.
^ Make sure the tanks snap securely into place.
6. Route the cruise control cable over the refrigerant line (if equipped).
7. Cruise control cable slug to the throttle cam lever.
^ Rotate the throttle cam lever to install the cruise control cable slug into the slot in the throttle cam lever.
^ Make sure the cruise control cable is supported by the sides of the throttle cam lever. Do not twist or kink the cable.
8. Cruise control cable engine-end fining to the rectangular slot in the engine throttle bracket.
9. Cruise control cable locator clip to the rectangular hole in the valve rocker arm cover bracket.
^ Make sure the tabs snap securely into place.
10. Adjust the cruise control cable.
^ Do not install the splash shield cover until the final adjustment is made to the cruise control cable.

Important: Secure all components of the accelerator and cruise control cables as specified. The throttle linkage must operate freely without binding between the idle position and wide open throttle.
