Engine Mount Replacement (Left Side)





REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Remove the four bolts and reposition the shroud to the rear.
3. Raise and support the vehicle.
4. Remove the four bolts and the front skid plate from the engine (if equipped).
5. Remove the exhaust pipe-to-bracket nut.
6. Remove the two-to-bracket bolts.
7. Lower the vehicle.
8. Support the engine using a suitable engine support stand.
9. Remove the two left-side engine mount-to-exhaust bracket bolts and the exhaust bracket from the vehicle.
10. Remove the three left-side engine mount-to-frame bracket bolts.
11. Raise the engine slightly to provide clearance for the engine mount assembly removal.

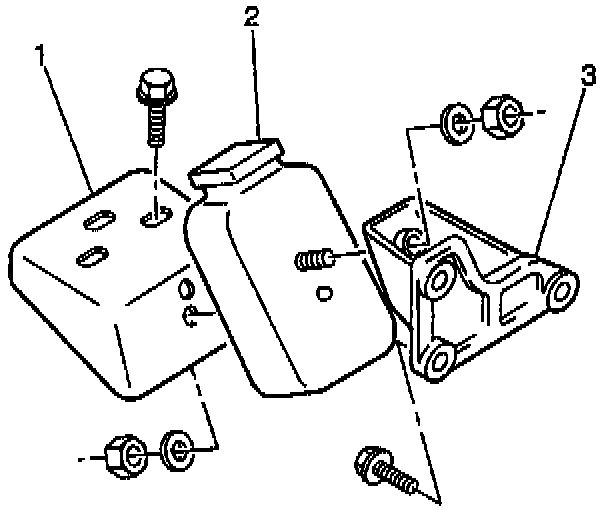

12. Remove the left-side engine mount (3) from the vehicle.
13. Disassemble the left-side engine mount-to-frame bracket (4) from the engine mount (3).
14. Disassemble the left-side engine mount-to-engine bracket (1) from the engine mount (3).

INSTALLATION PROCEDURE
1. Assemble the left-side engine mount-to-engine bracket (1) to the engine mount (3).
2. Assemble the left-side engine mount-to-frame bracket (4) to the engine mount (3).
3. Install the left-side engine mount (3) to vehicle.
4. Install the left-side engine mount-to-frame bracket bolts. Do not tighten fully.

NOTICE: Refer to Fastener Notice in Service Precautions.

5. Install the exhaust bracket. Secure the bracket with two engine mount-to-exhaust bracket bolts.
^ Tighten the engine mount-to-frame bracket bolts to 54 Nm (40 ft. lbs.).
^ Tighten the left-side engine mount-to-engine bracket bolts to 54 Nm (40 ft. lbs.).

6. Raise and support the vehicle.
7. Install the two left-side engine mount-to-engine bolts. Do not tighten fully.
8. Install the one exhaust pipe-to-bracket nut.
^ Tighten the engine mount-to-exhaust bracket bolts to 54 Nm (40 ft. lbs.).
^ Tighten the exhaust pipe-to-bracket nut to 50 Nm (37 ft. lbs.).

9. Install the front skid plate to the vehicle (if equipped). Secure the skid plate with four bolts.
^ Tighten the front skid plate bolts to 55 Nm (40 ft. lbs.).

10. Lower the vehicle.
11. Install the shroud to the radiator. Secure the shroud with four bolts.
^ Tighten the shroud bolts to 11 Nm (97 inch lbs.).

12. Connect the negative battery cable.
