Back-Up Switch Replacement

REMOVAL PROCEDURE





1. Disconnect the negative (-) battery cable.
2. Raise and support the vehicle.

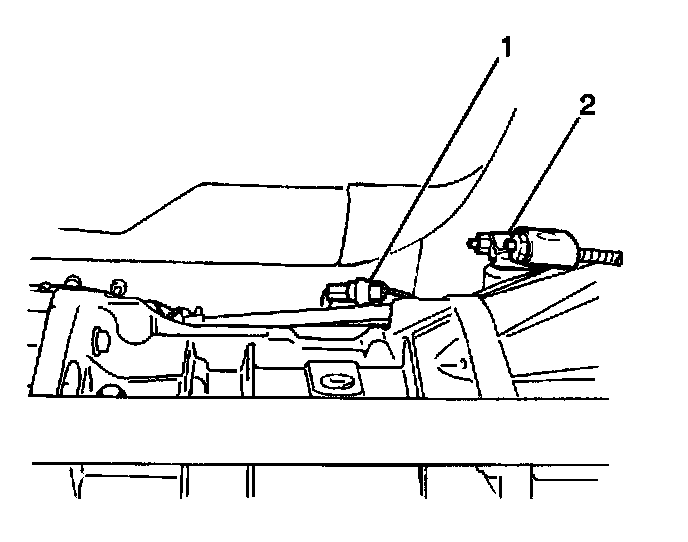

3. Remove the backup lamp switch electrical connector (1) from the backup lamp switch.





4. Remove the backup lamp switch (1) from the upper case (2).
5. Inspect the backup lamp switch.
6. Inspect the backup lamp switch O-ring for cuts or damage. Replace the backup lamp switch O-ring if necessary.

INSTALLATION PROCEDURE





1. Install the backup lamp switch (1) into the upper case (2).
^ Tighten the backup lamp switch to 23 Nm (17 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.





2. Install the backup lamp switch electrical connector (1) to the backup lamp switch.
3. Lower the vehicle.
4. Connect the negative (-) battery cable.
