Front Toe Adjustment

Use the following steps in order to adjust the toe:

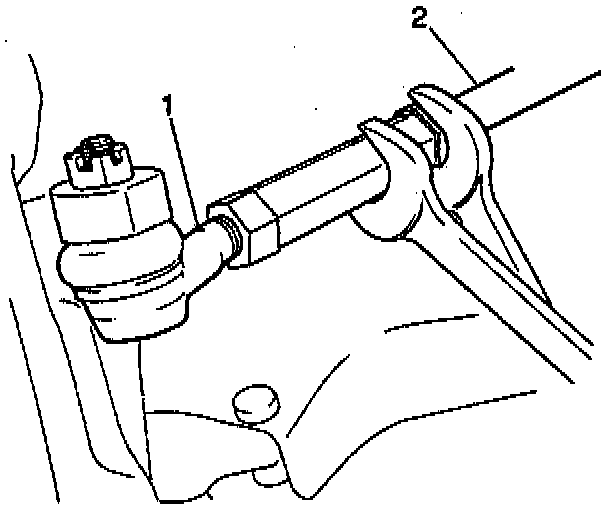

1. Loosen the locknuts.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

2. Rotate the left and the right tie rods by the same amount.

Rotate the left and the right tie rods until the toe-in measures 0.16-0.48 degrees.

Ensure that the right and the become equal in length.

Tighten tie rod locknuts to 65 Nm (48 ft. lbs.).
