Home >> Chevy Truck >> 1999 >> C 2500 Truck 2WD V8-5.3L VIN T >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Body Control Module >> Diagrams >> Electrical Diagrams >> Passlock Sensor, VSS Signal

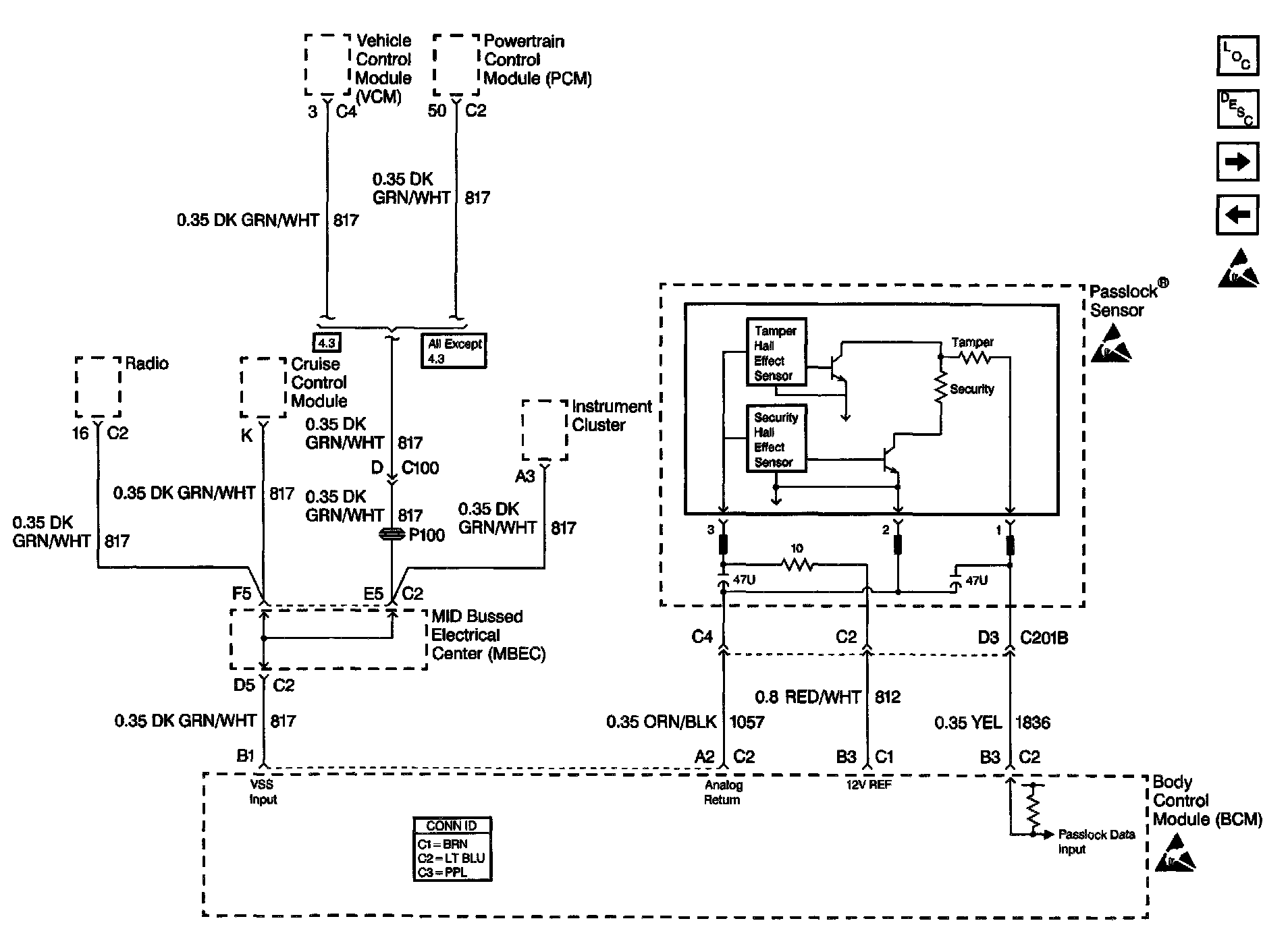

Passlock Sensor, VSS Signal

Passlock Sensor, VSS Signal:
