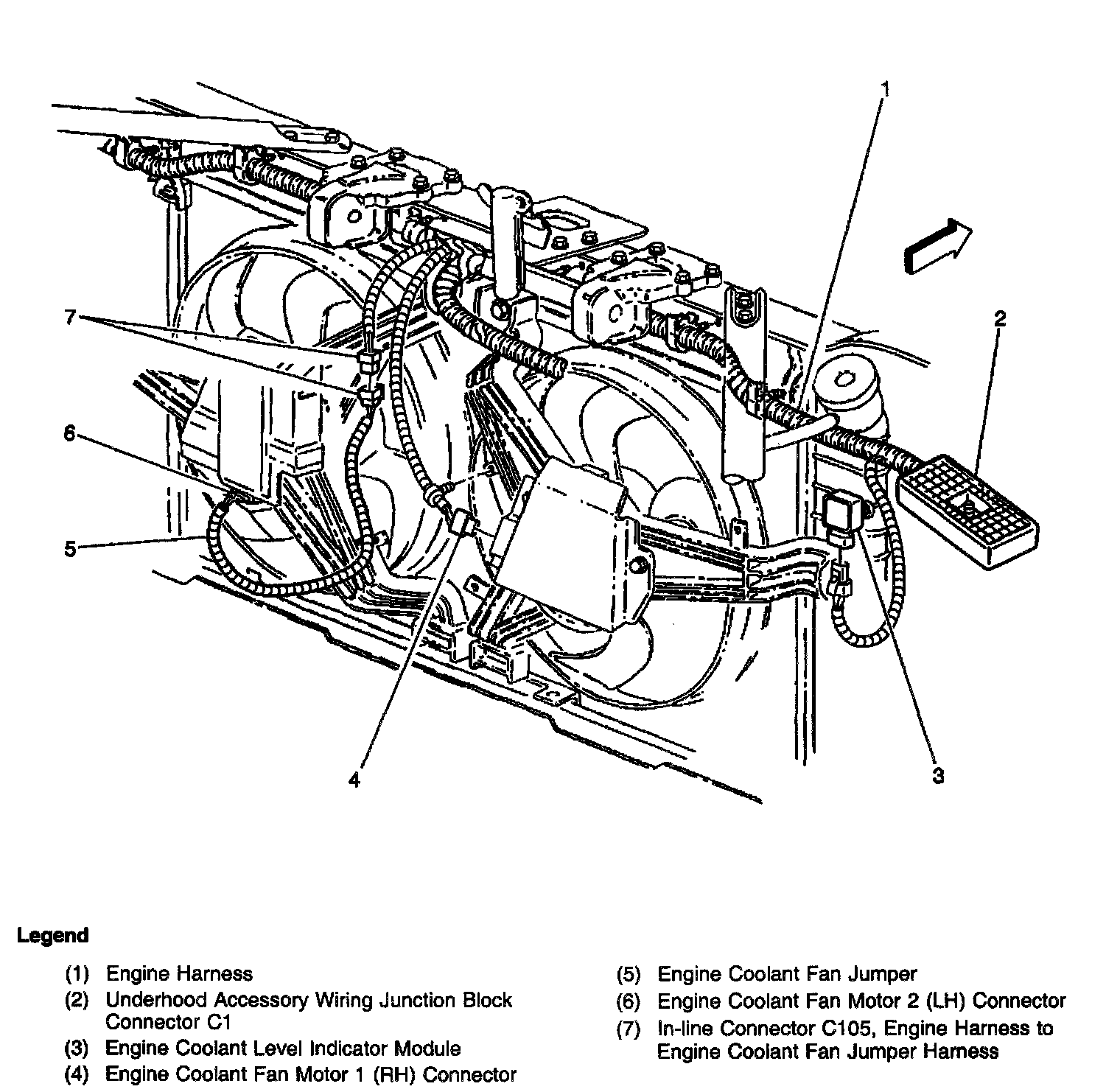

Engine Coolant Level Indicator Module

Front Of Engine Compartment:





Mounted to the rear right side of the radiator, below the radiator cap
