Auto Level Control (ALC) Compressor Relay

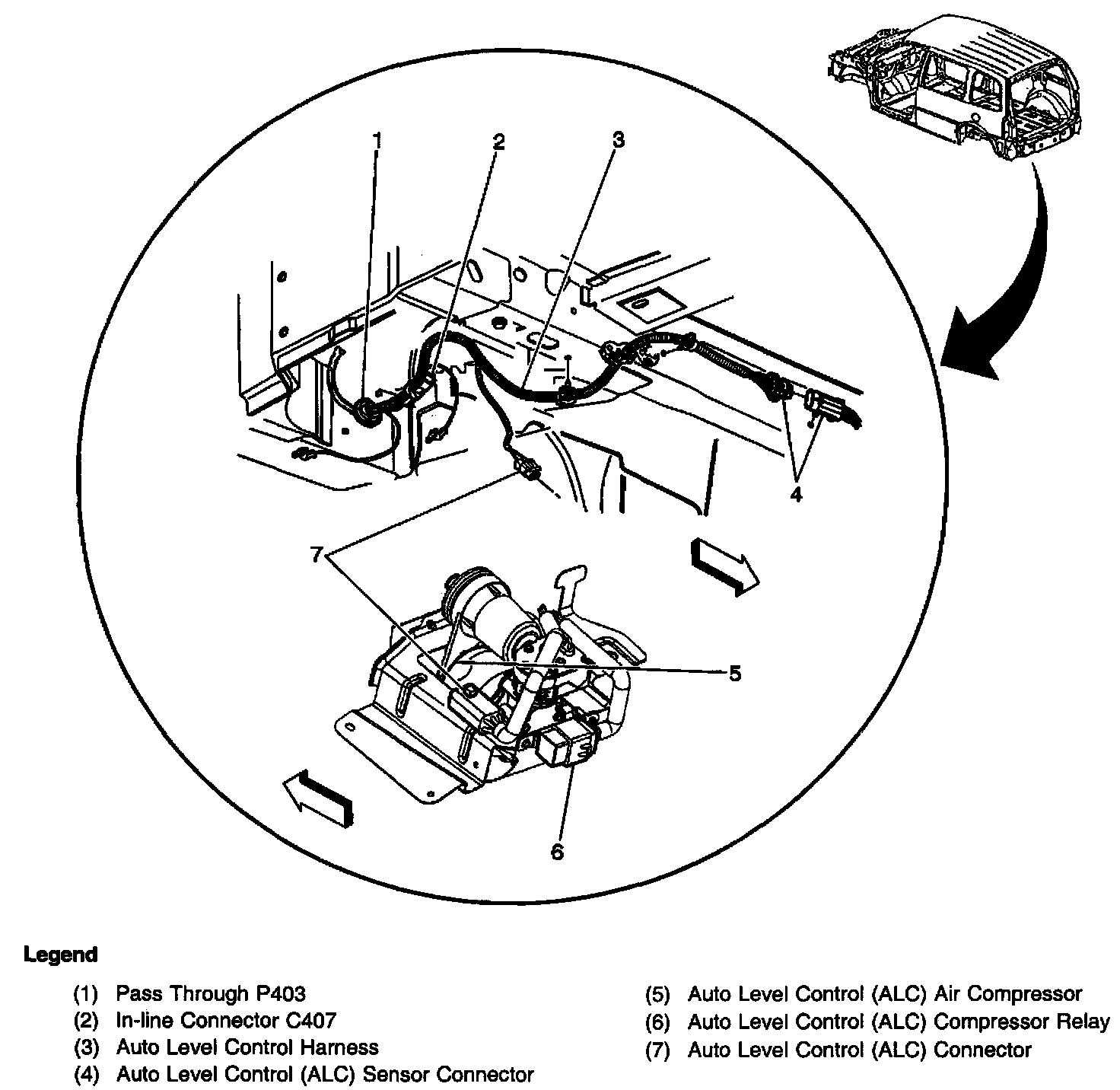

Auto Level Control (ALC) Compressor Relay
Below, Vehicle, Rear Of LR Wheelhouse:
