Chevy Truck
>>
1999
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Control Module
>>
Rear Side Door Actuator Control Module C1 - C4
>>
C2
C2

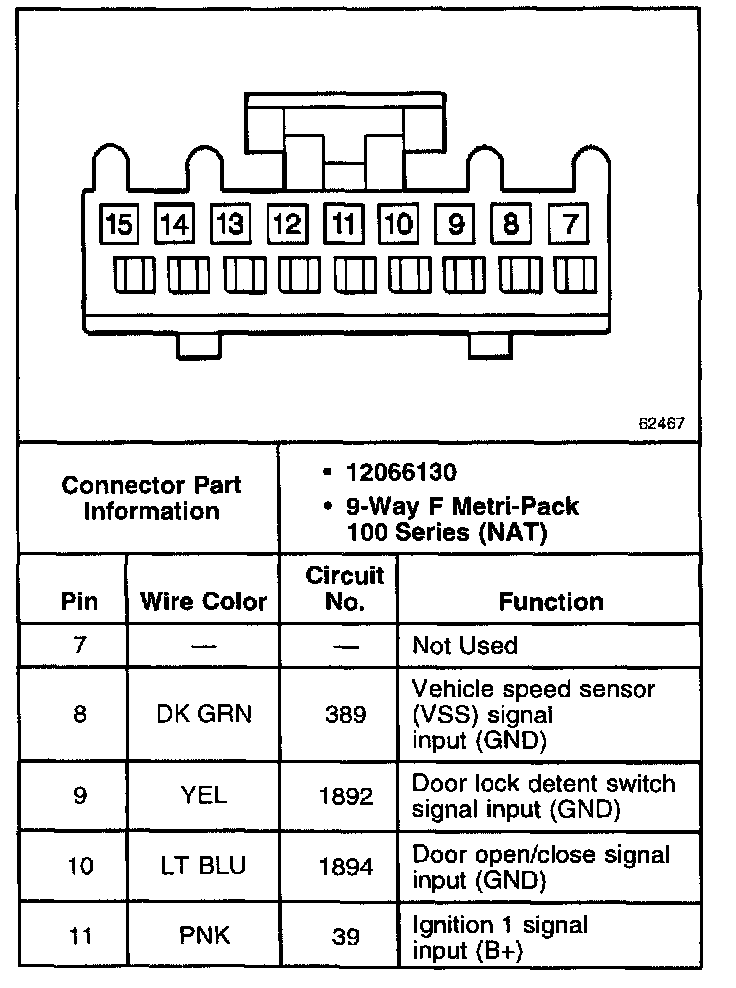

Rear Side Door Actuator Control Module C2 (Part 1 Of 2):

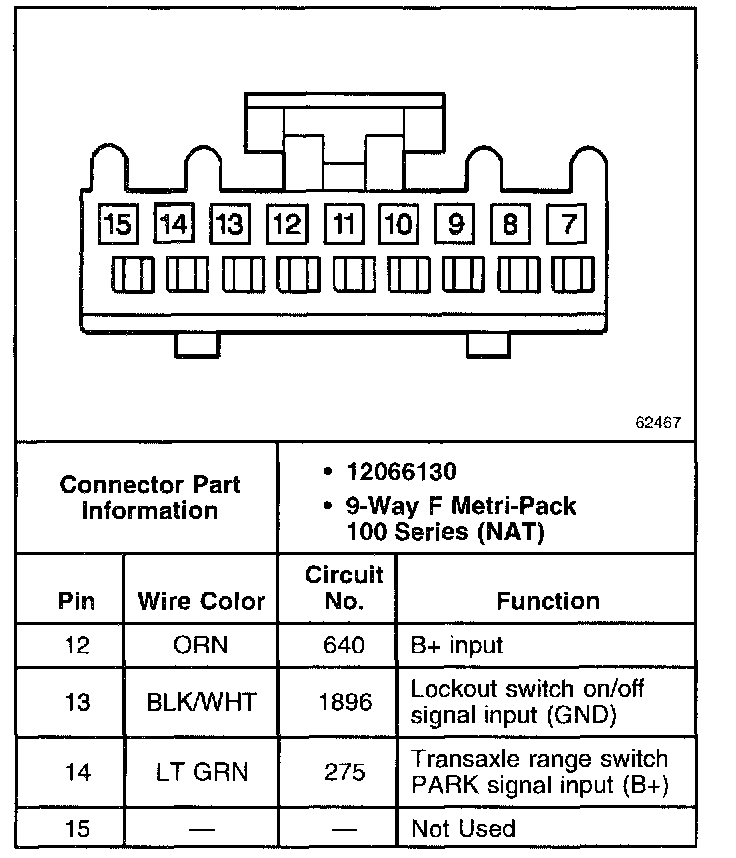

Rear Side Door Actuator Control Module C2 (Part 2 Of 2):
