Home >> Chevy Truck >> 1999 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Locks >> Power Door Lock Control Module >> Rear Side Door Actuator Control Module C1 - C4 >> C3

C3

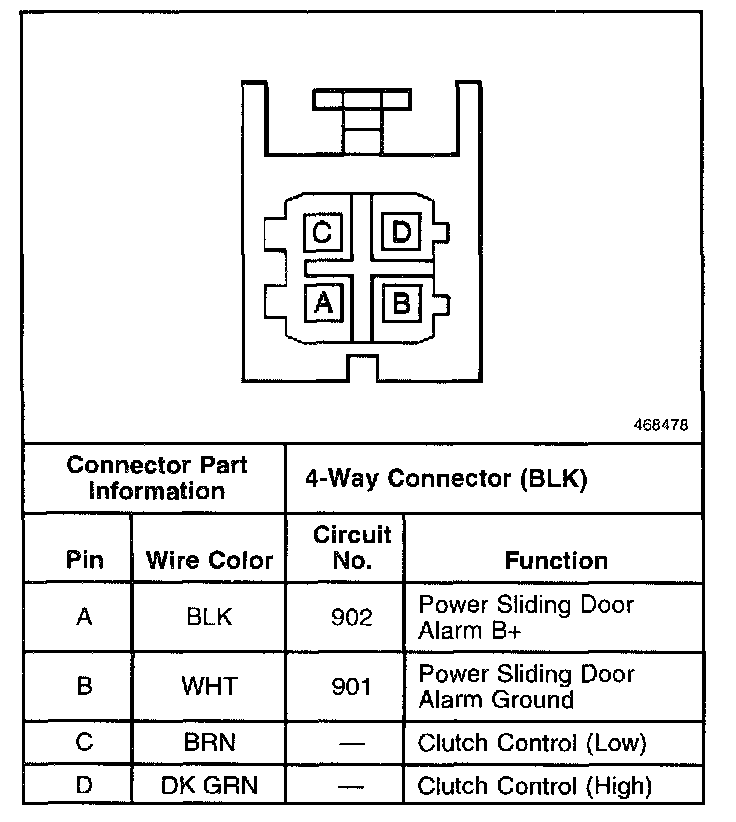

Rear Side Door Actuator Control Module C3:
