Body Control Module

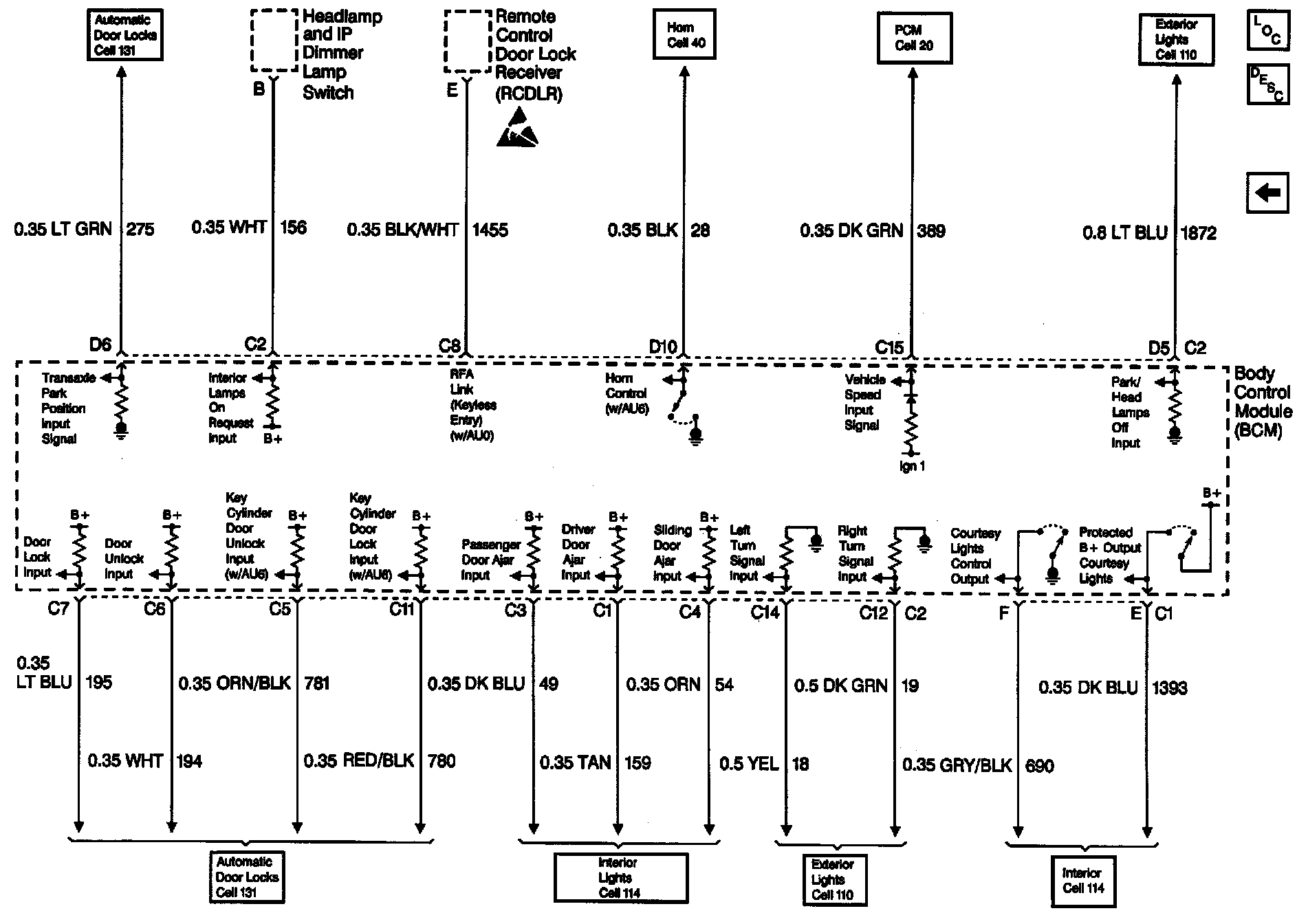

Body Control Module Schematics: BCM: Interior Lamps On Request, Horn Control, Fuel Enable Output:
