Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Modules
>>
Ignition Control (IC Module)
Ignition Control (IC Module)

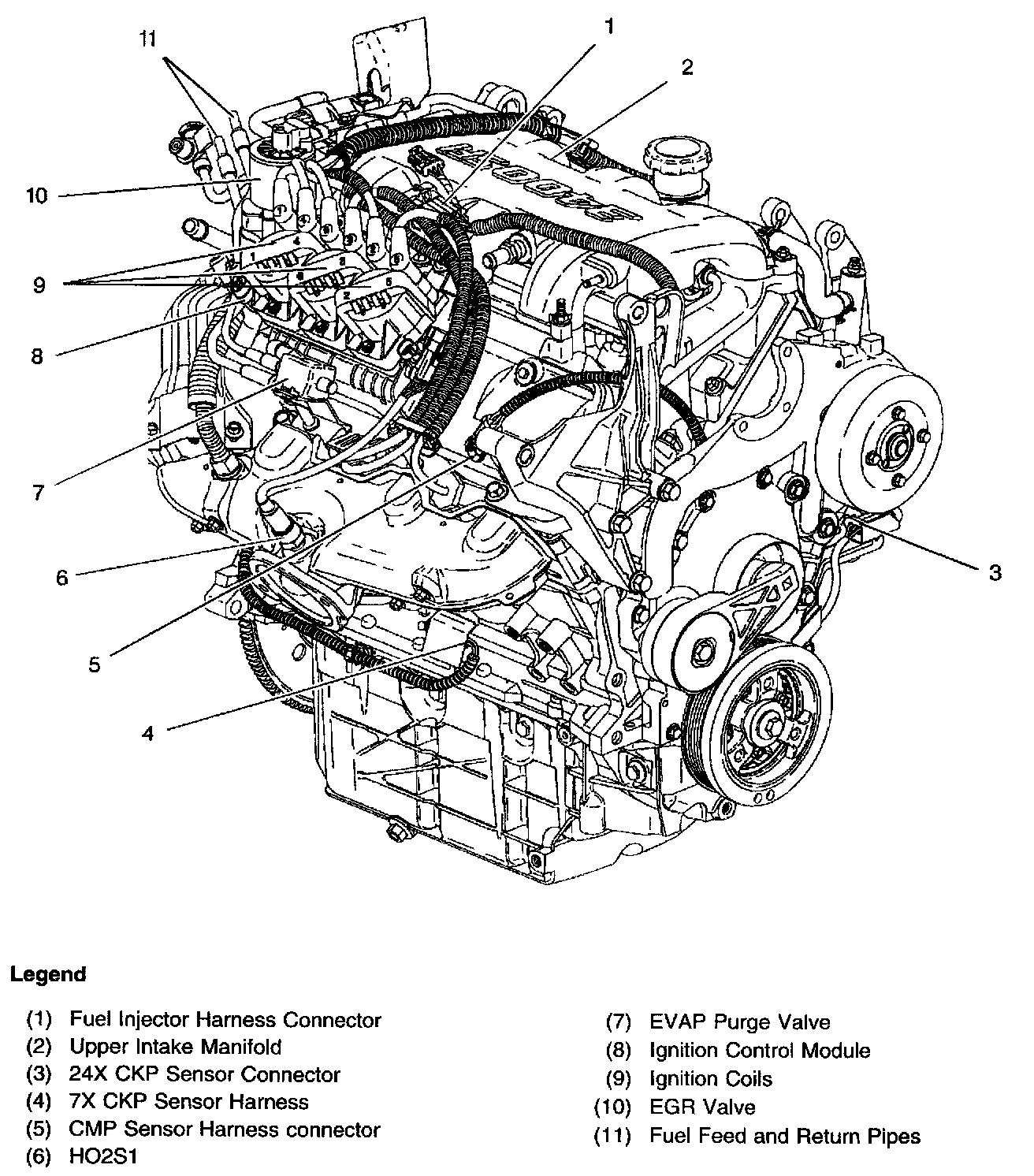

Engine Composite View 3400:

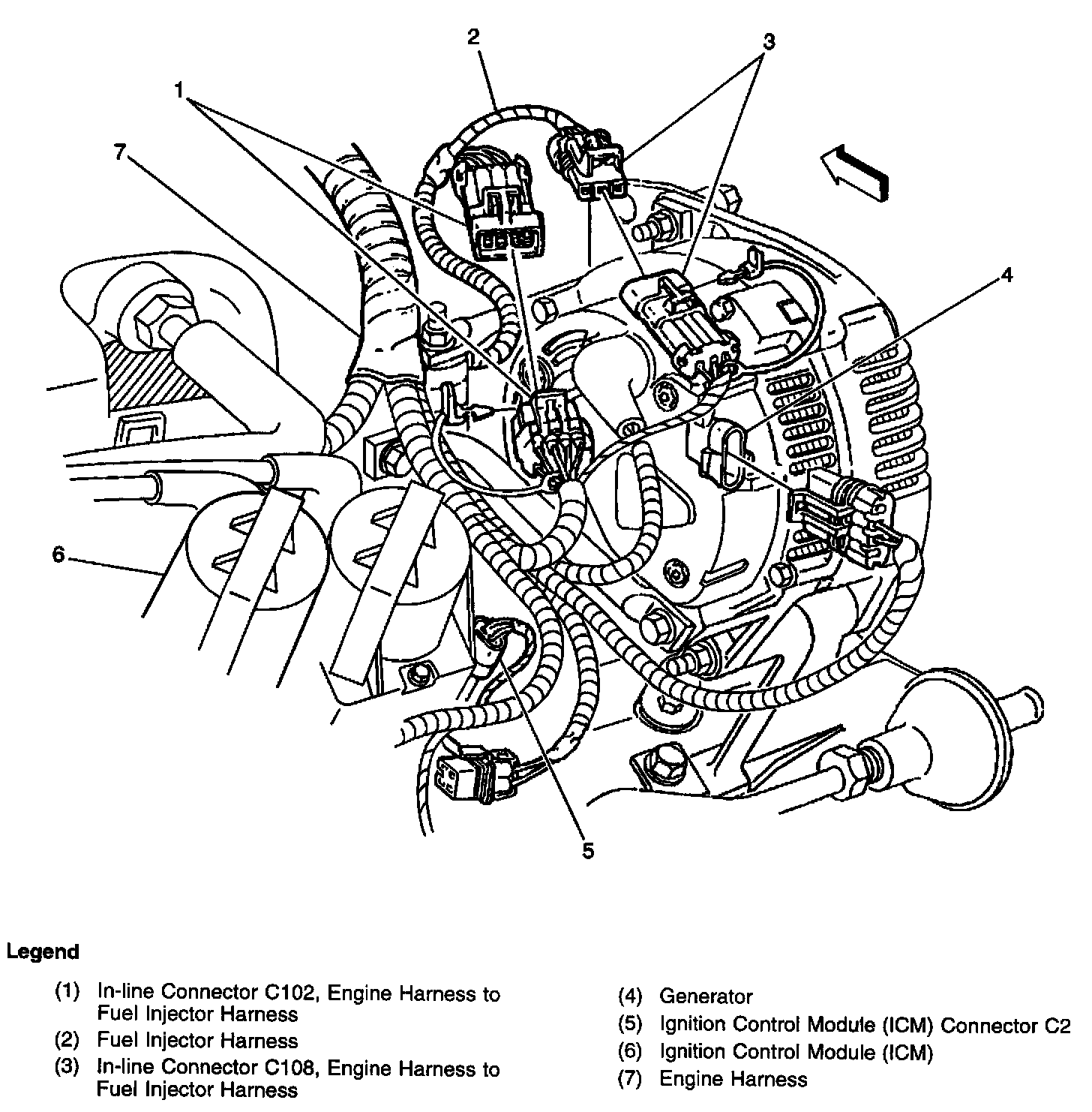

Locations View:
Top center rear of the engine
