Coolant Temperature Sensor/Switch (For Computer): Locations

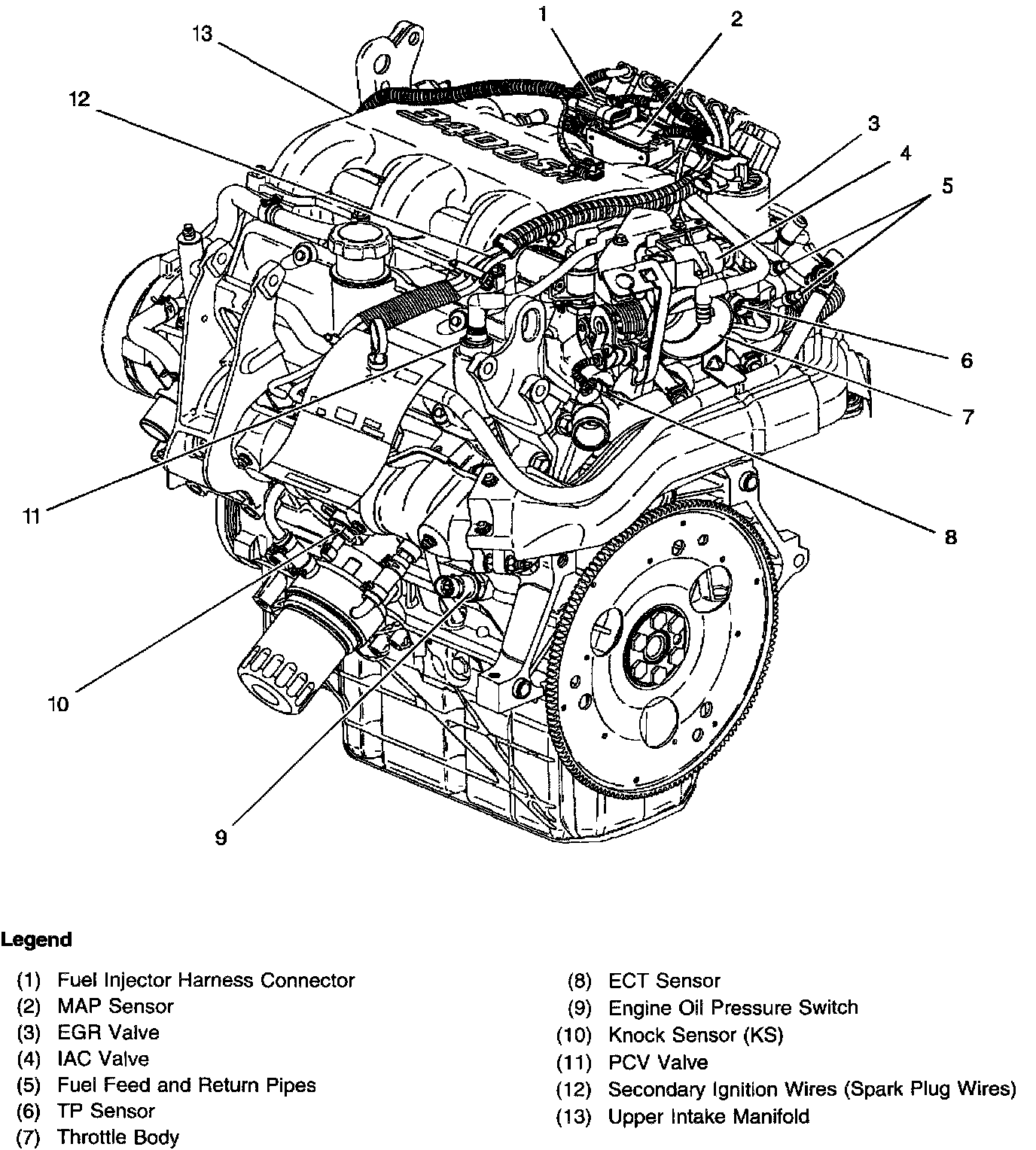

Engine Composite View 3400:

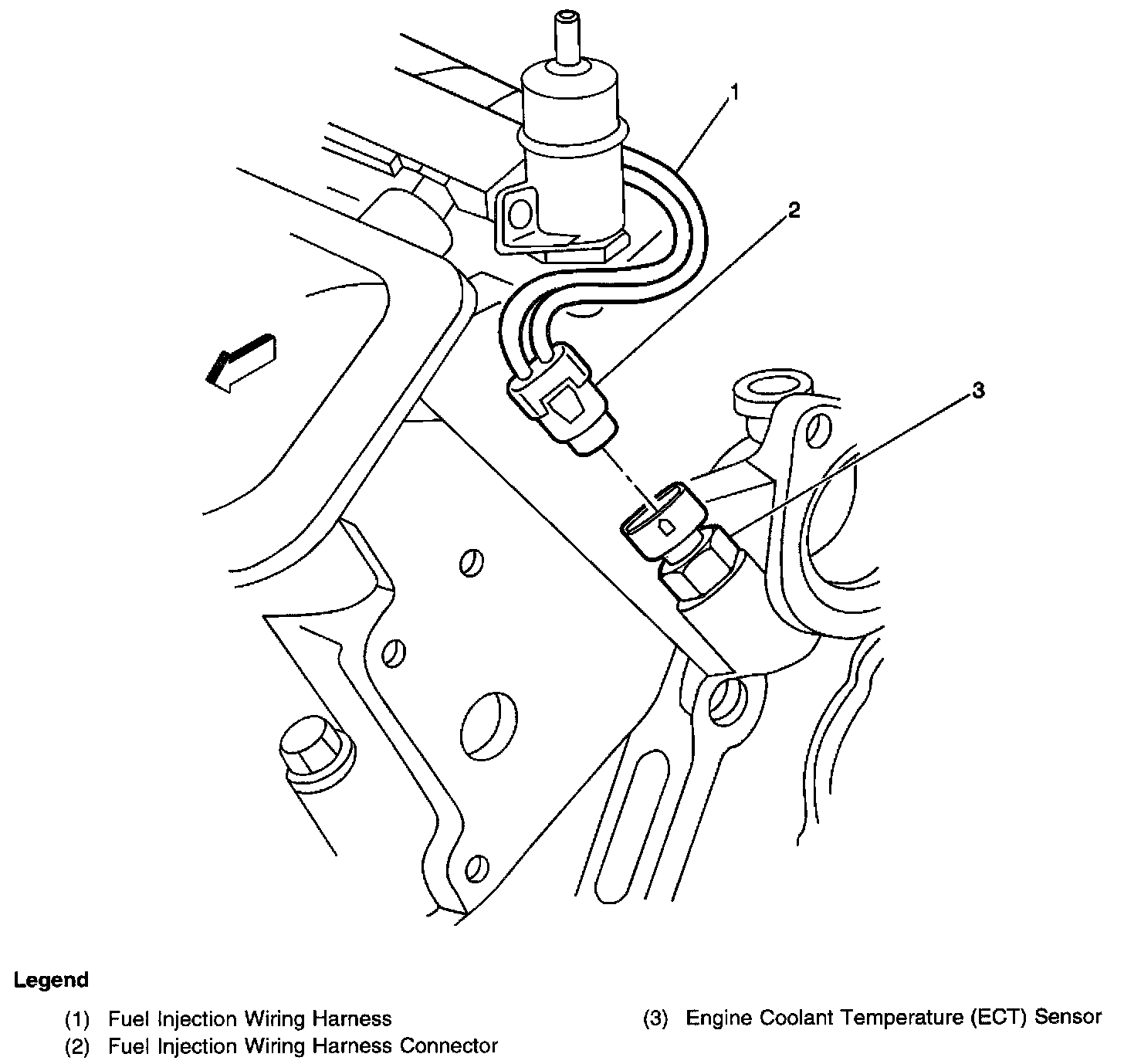

Locations View:




Left side top of the engine
