Fuel Tank Pressure Sensor: Service and Repair

REMOVAL PROCEDURE
1. Relieve the system fuel pressure. Refer to Fuel Pressure Relief Procedure.
2. Drain fuel tank. Refer to Fuel Tank Draining Procedure.
3. Raise the vehicle. Refer to Lifting and Jacking the Vehicle.
4. Remove the fuel tank.
5. Disconnect the electrical connector from the fuel tank vapor pressure sensor.

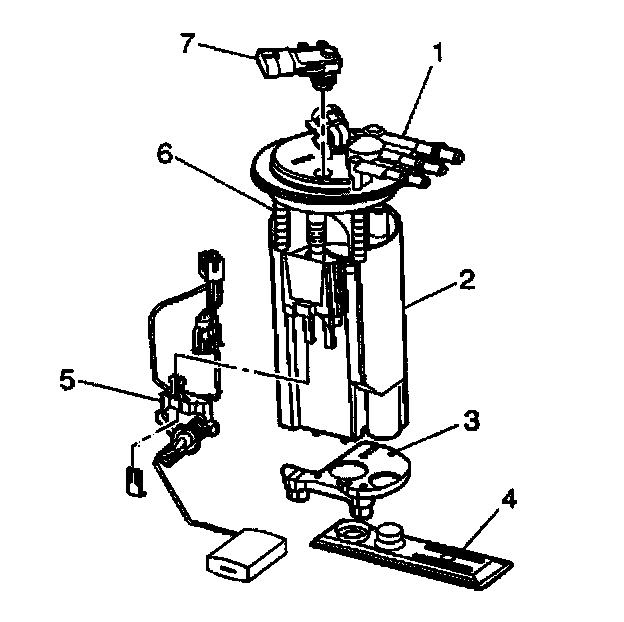

6. Remove the fuel tank pressure sensor (7) from the modular fuel sender.

INSTALLATION PROCEDURE
1. Install the new fuel tank pressure sensor (7) to the modular fuel sender.
2. Connect the electrical connector to fuel tank vapor pressure sensor.
3. Reinstall the fuel tank.
4. Lower the vehicle.
5. Add fuel and reinstall the fuel fill cap.
6. Reconnect the negative battery cable.
7. Inspect for fuel leaks.
7.1. Turn the ignition switch ON for 2 seconds.
7.2. Turn the ignition switch OFF for 10 seconds.
7.3. Turn the ignition switch ON.
7.4. Check for fuel leaks.
