Ignition Control Module
>>
Locations
>>
Connector Locations
>>
Ignition Control Module (ICM) Connector C2
Ignition Control Module (ICM) Connector C2

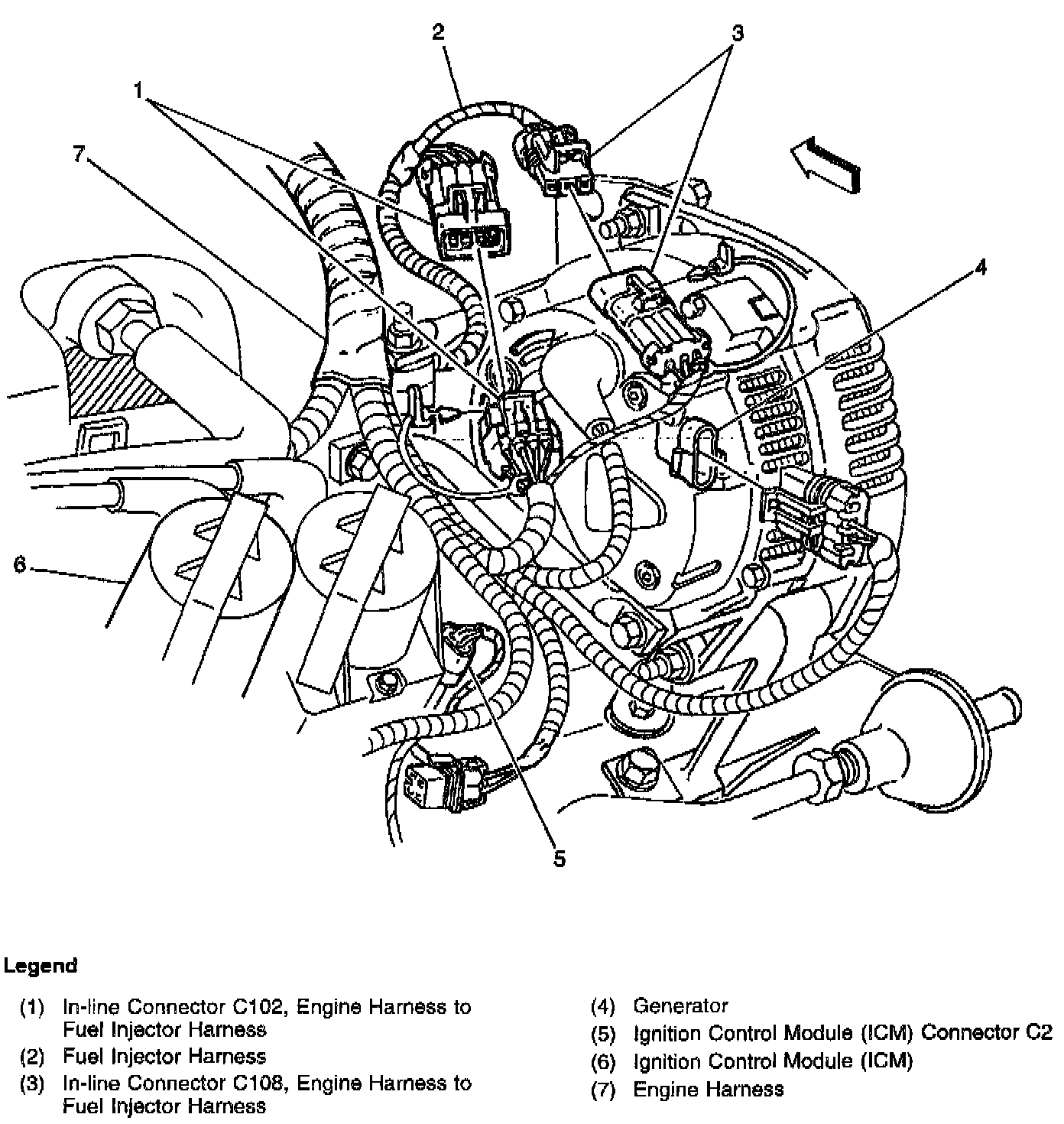

Top, RH Side Of Engine:
Rear Side Of Engine Compartment:
