Rear Door Power Window Switch Replacement




REMOVAL PROCEDURE

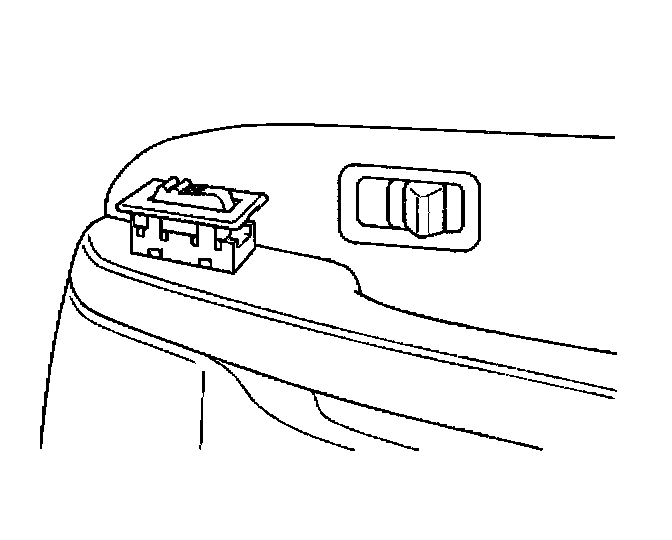

1. Use a small flat blade tool in order to carefully pry the door power window switch from the door trim panel.
2. Disconnect the electrical connector from the switch.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the switch.
2. Install the switch to the door trim panel.
