Control Assembly Replacement

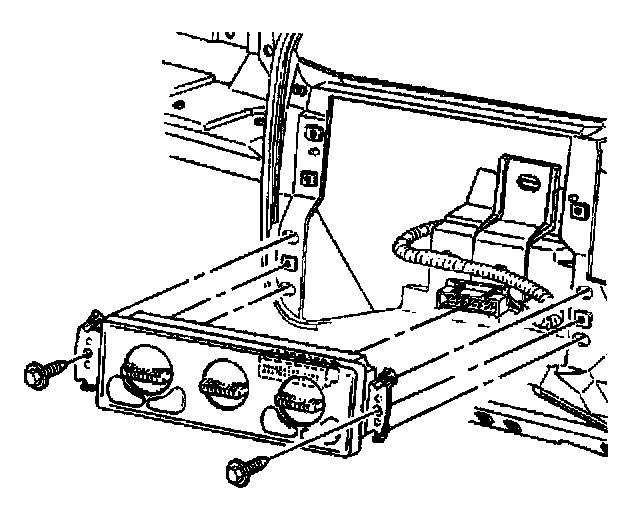

REMOVAL PROCEDURE




1. Remove the instrument panel accessory trim plate, refer to Service and Repair
2. Remove the HVAC control assembly retaining screws.
3. Depress the HVAC control assembly retaining tabs and remove the HVAC control assembly from the instrument panel.
4. Disconnect the electrical connectors from the HVAC control assembly.
5. Remove the HVAC control assembly bulb from the HVAC control assembly and retain.

INSTALLATION PROCEDURE




1. Install the HVAC control assembly bulb to the HVAC control assembly.
2. Connect the electrical connectors to the HVAC control assembly.
3. Install the HVAC control assembly into the instrument panel, ensuring that the HVAC control assembly retaining tabs lock into place.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the HVAC control assembly retaining screws.

Tighten
Tighten the control assembly screws to 1.9 N.m (17 lb in).

5. Install the instrument panel accessory trim plate, refer to see Service and Repair
