Piston, Connecting Rod, and Bearing Replacement

Removal Procedure
1. Remove the cylinder head from the cylinder block. Refer to Cylinder Head Replacement.
2. Remove the oil pan and the oil pump strainer from the cylinder block. Refer to Oil Pan Replacement.





3. Using a ridge reamer, remove any ridge and all carbon from the top of the cylinder bore to avoid damage to the piston ring lands.
4. Mark the cylinder number on each of the following:
^ The pistons
^ The connecting rods
^ The connecting rod bearing caps

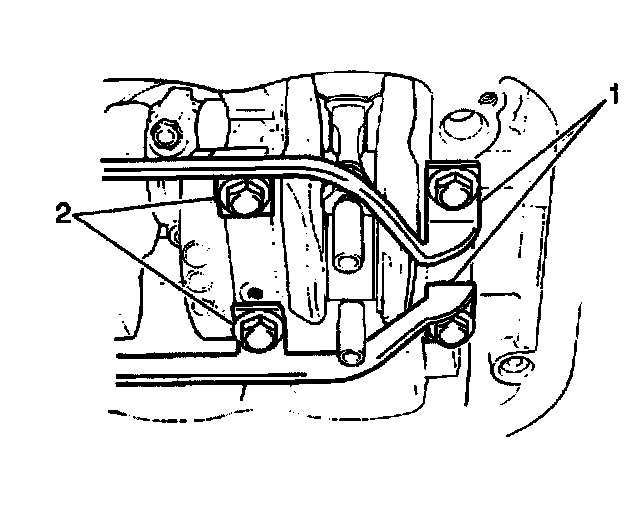

5. Remove the two nuts and the connecting rod bearing cap.





6. Slide a piece of hose over the connecting rod studs to prevent damage to the crankshaft and cylinder wall when the piston and the connecting rod are removed.





7. Remove the piston (1) and the connecting rod (3) from the cylinder bore by pushing out through the top of the cylinder bore.
8. Disassemble the piston and connecting rod assembly. Refer to Piston and Connecting Rod Disassemble.
9. Inspect the piston and connecting rod assembly. Refer to Piston, Connecting Rod, and Bearings Clean and Inspect (Piston/Connecting Rod Inspect) or Piston, Connecting Rod, and Bearings Clean and Inspect (Bearing Selection).
10. Select the connecting rod bearing. Refer to Piston, Connecting Rod, and Bearings Clean and Inspect (Piston/Connecting Rod Inspect) or Piston, Connecting Rod, and Bearings Clean and Inspect (Bearing Selection).
11. Select the piston. Refer to Piston Selection.
12. Assemble the piston and connecting rod assembly. Refer to Piston and Connecting Rod Assemble.

Installation Procedure

^ Tools Required
- J8037 Piston Ring Compressor
1. Apply a light coat of clean engine oil to the following:
^ The pistons
^ The rings
^ The cylinder walls
^ The connecting rod bearings
^ The crank pins





2. Install a piece of hose (2) over the connecting rod studs to prevent damage to the crankshaft and cylinder wall when installing the connecting rods.

Important: Ensure that the arrow mark on the top of the piston is facing toward the crankshaft pulley side.





3. Use a J8037 in order to compress the piston rings and install the piston and the connecting rod into the cylinder bore.





4. Use a hammer handle in order to tap the piston head and install the piston into the cylinder bore. Keep the J8037 pressed securely against the top of the cylinder block (1) until all of the piston rings have entered the cylinder bore.
5. Remove the hose pieces from the connecting rod bolts.

Notice: Refer to Fastener Notice in Service Precautions.

6. Install the connecting rod bearing cap to the connecting rod. Secure the connecting rod bearing cap with two nuts.
^ Tighten the connecting rod bearing cap nuts to 35 Nm (26 ft. lbs.).
7. Install the engine oil pan. Refer to Oil Pan Replacement.
8. Install the cylinder head to the cylinder block. Refer to Cylinder Head Replacement.
