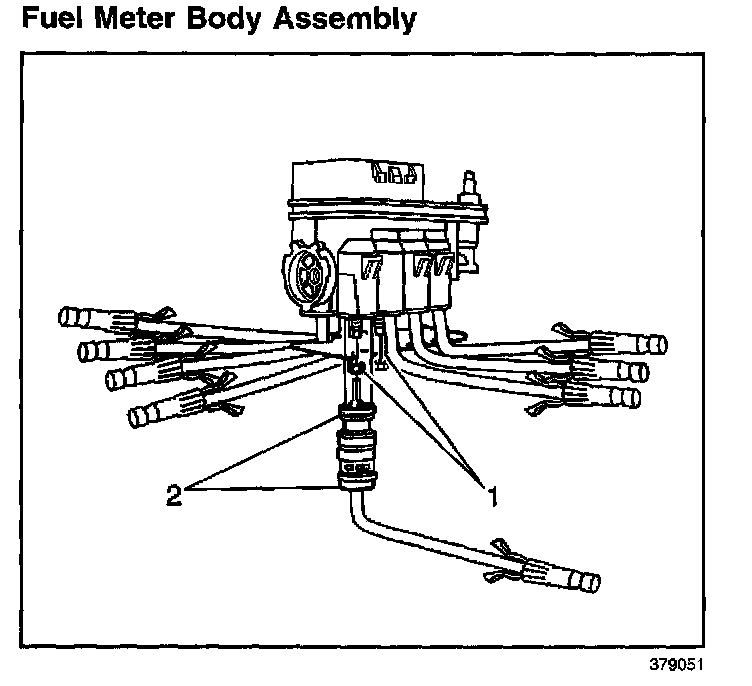

Fuel Meter Body Assembly

Fuel Meter Body Assembly:

The fuel meter body assembly attaches to the lower intake manifold. The fuel meter body assembly performs the following functions:
^ Distributes fuel evenly to the injectors (2)
^ Integrates the fuel pressure regulator into the fuel metering system
