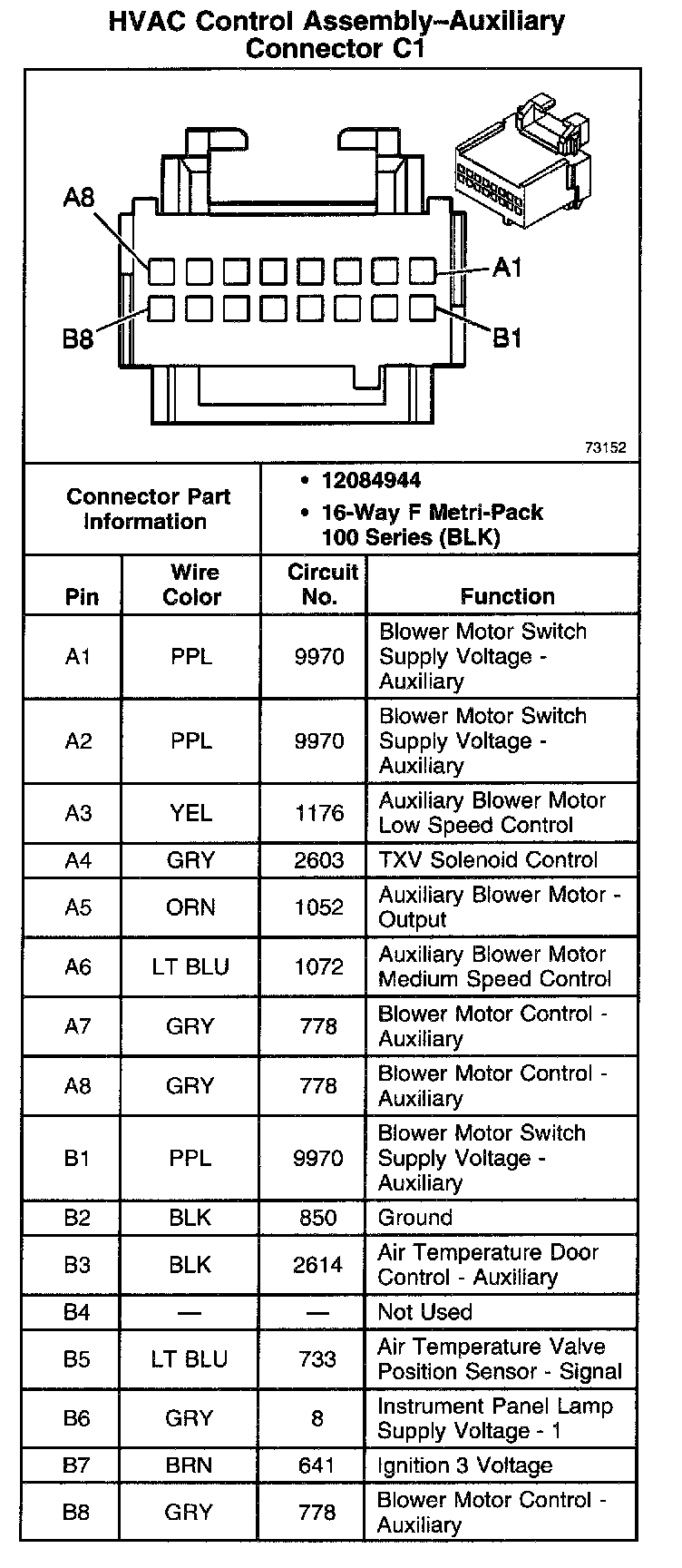

HVAC Control Assembly - Auxiliary Connector C1
HVAC Control Assembly - Auxiliary Connector C1
HVAC Control Assembly - Auxiliary Connector C1:
