Home >> Chevy Truck >> 2002 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module (PCM) - C2

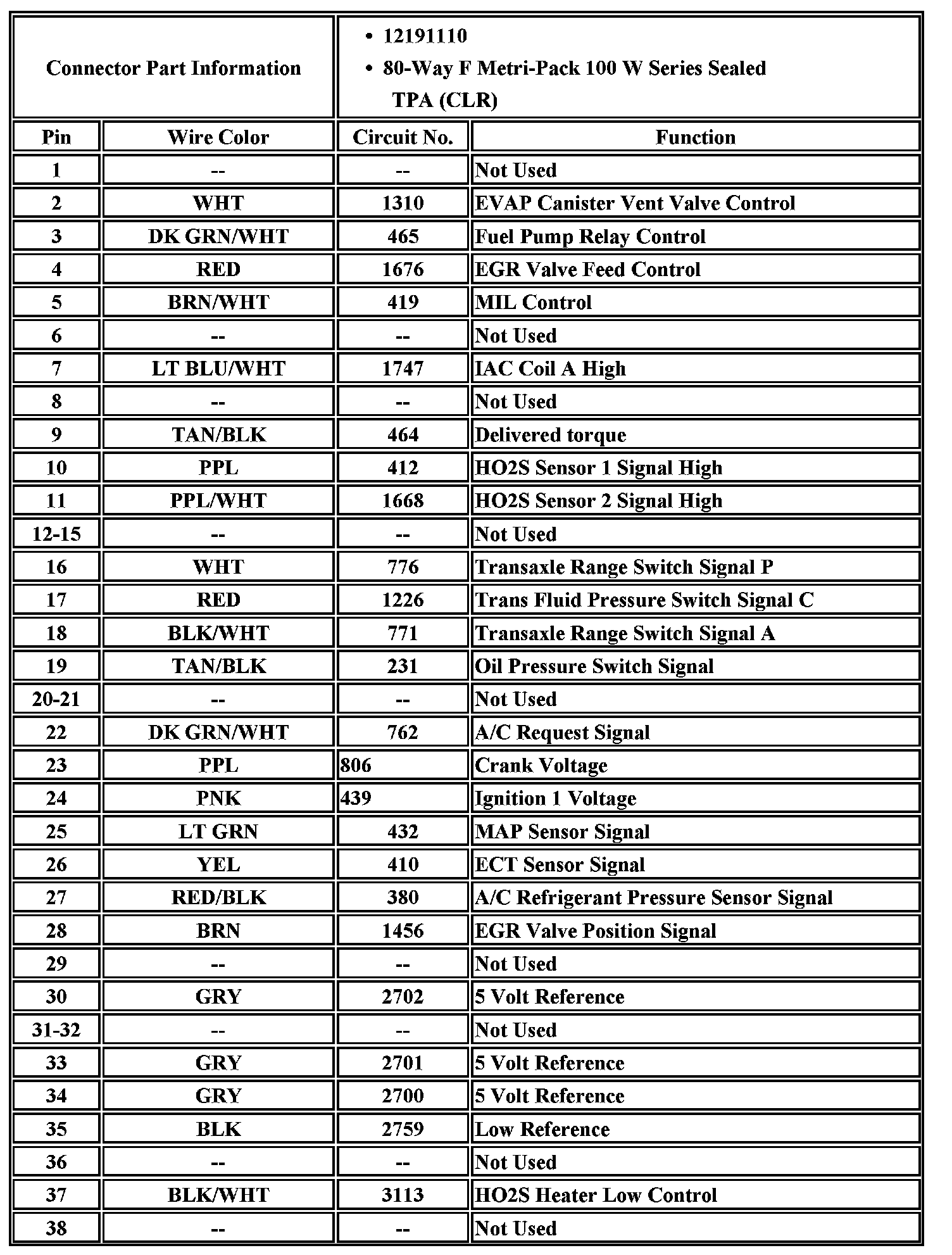

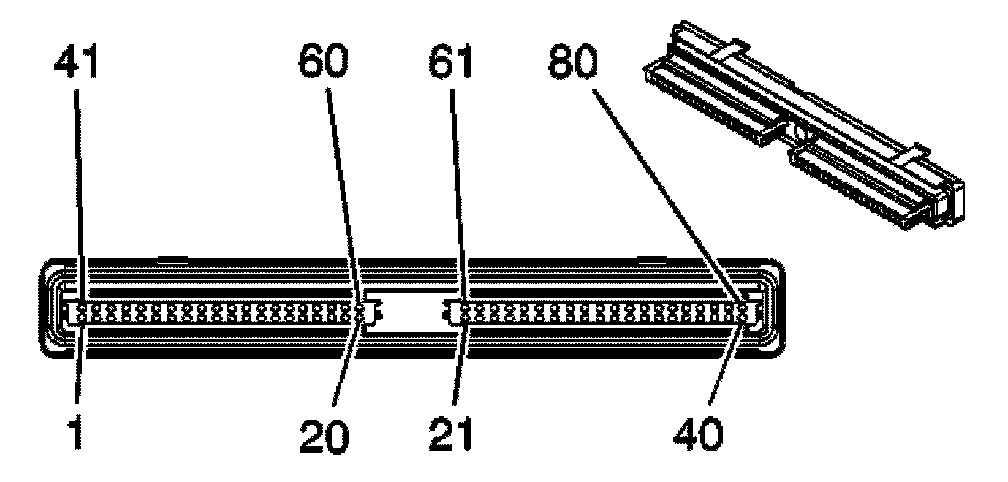

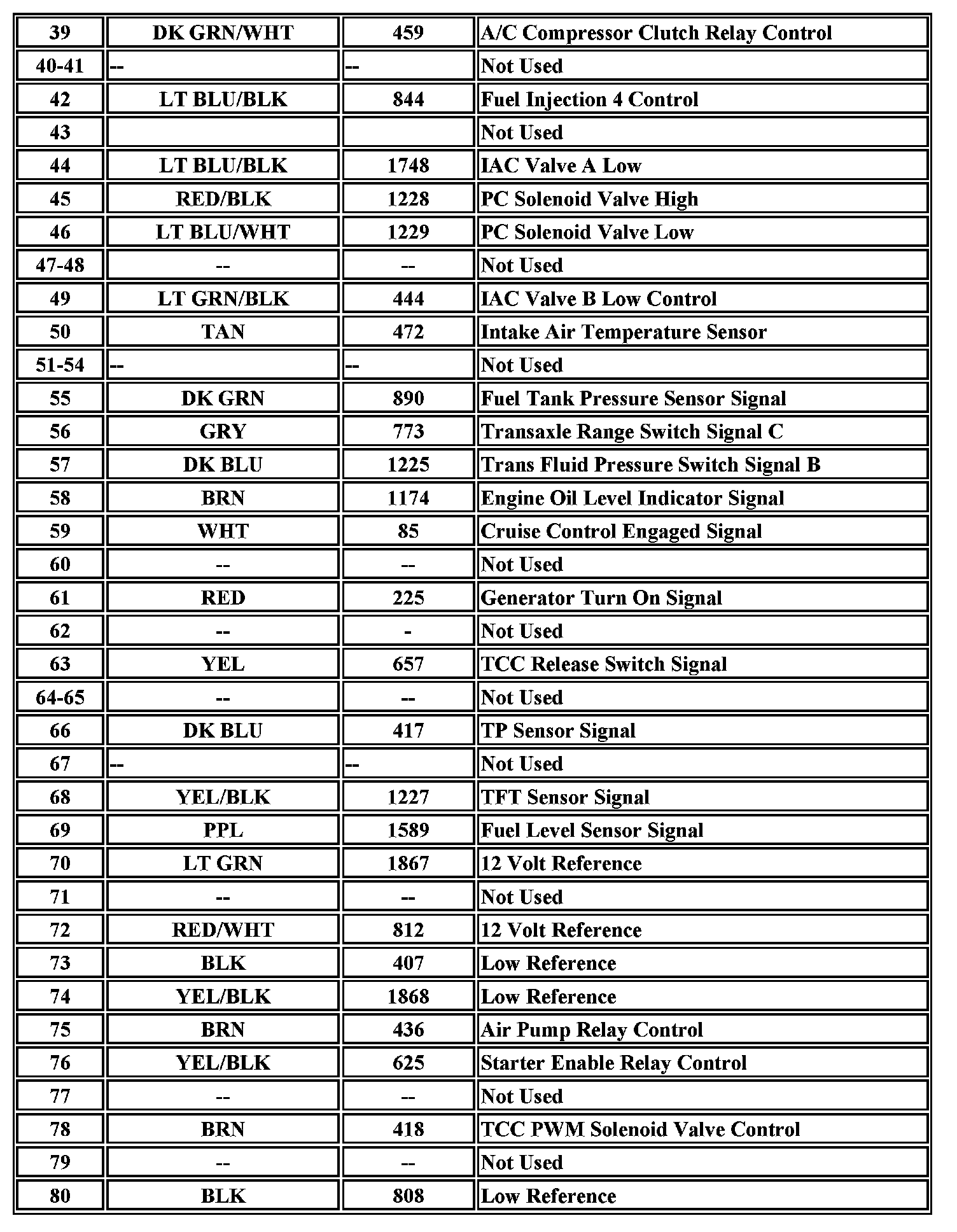

Powertrain Control Module (PCM) - C2





Powertrain Control Module (PCM) C2
