Transmission Control Systems
Transmission Control Systems

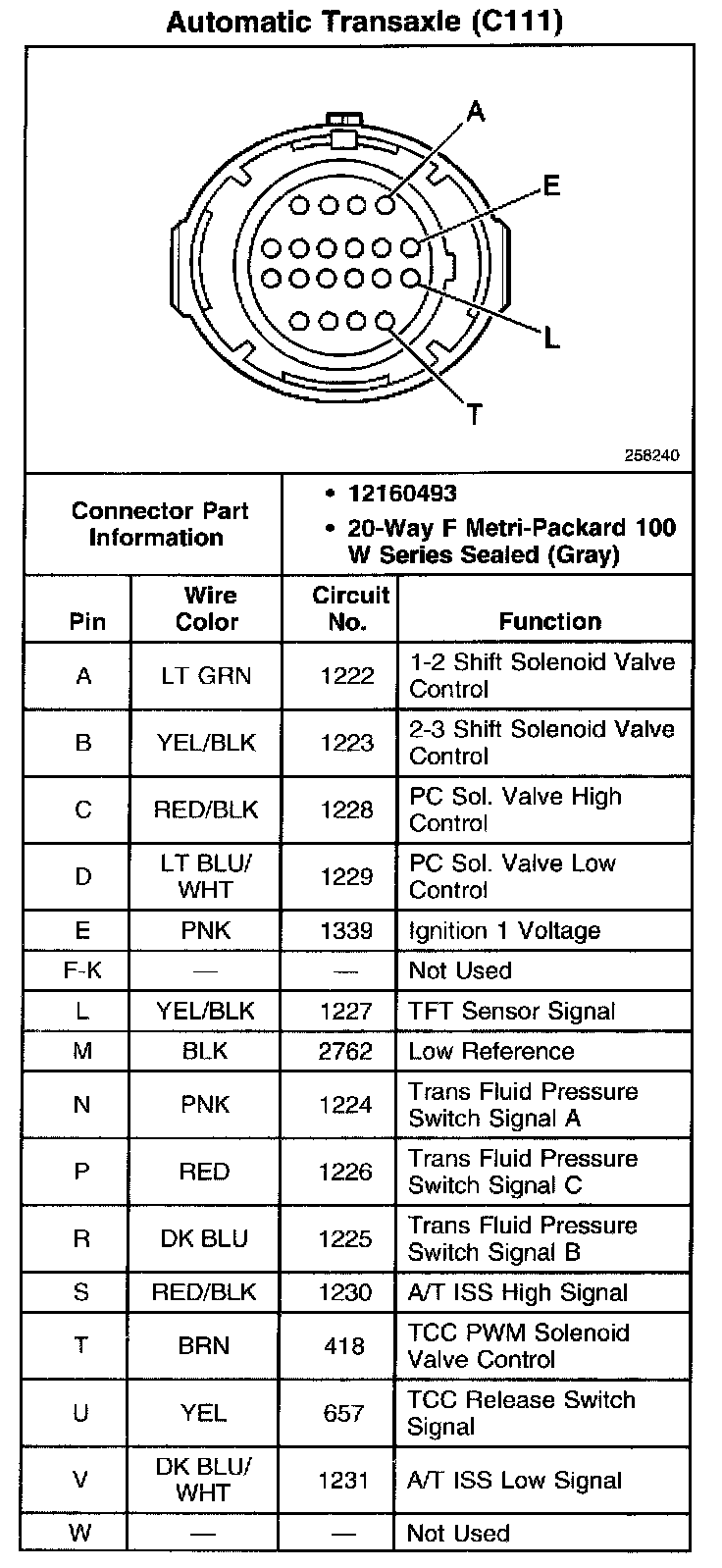

Automatic Transaxle (C111):

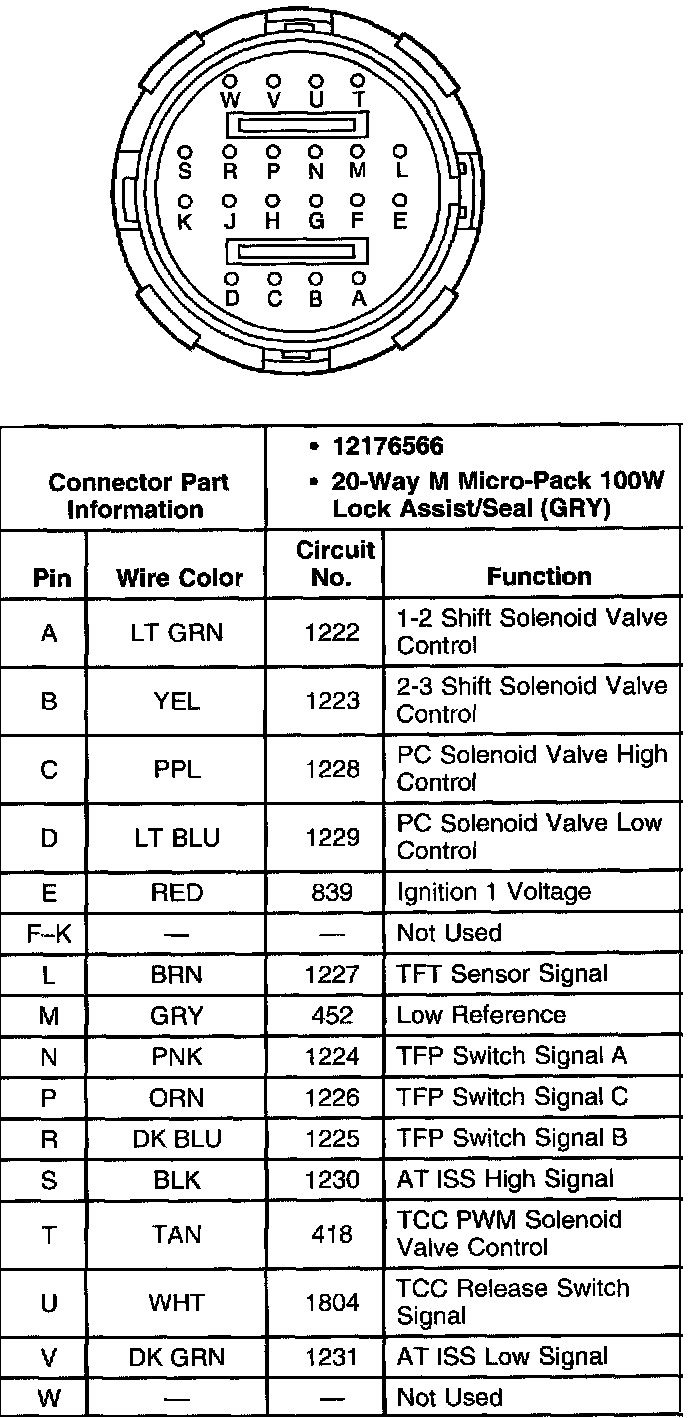

A/T Inline Harness 20-Way Connector, Engine Side:

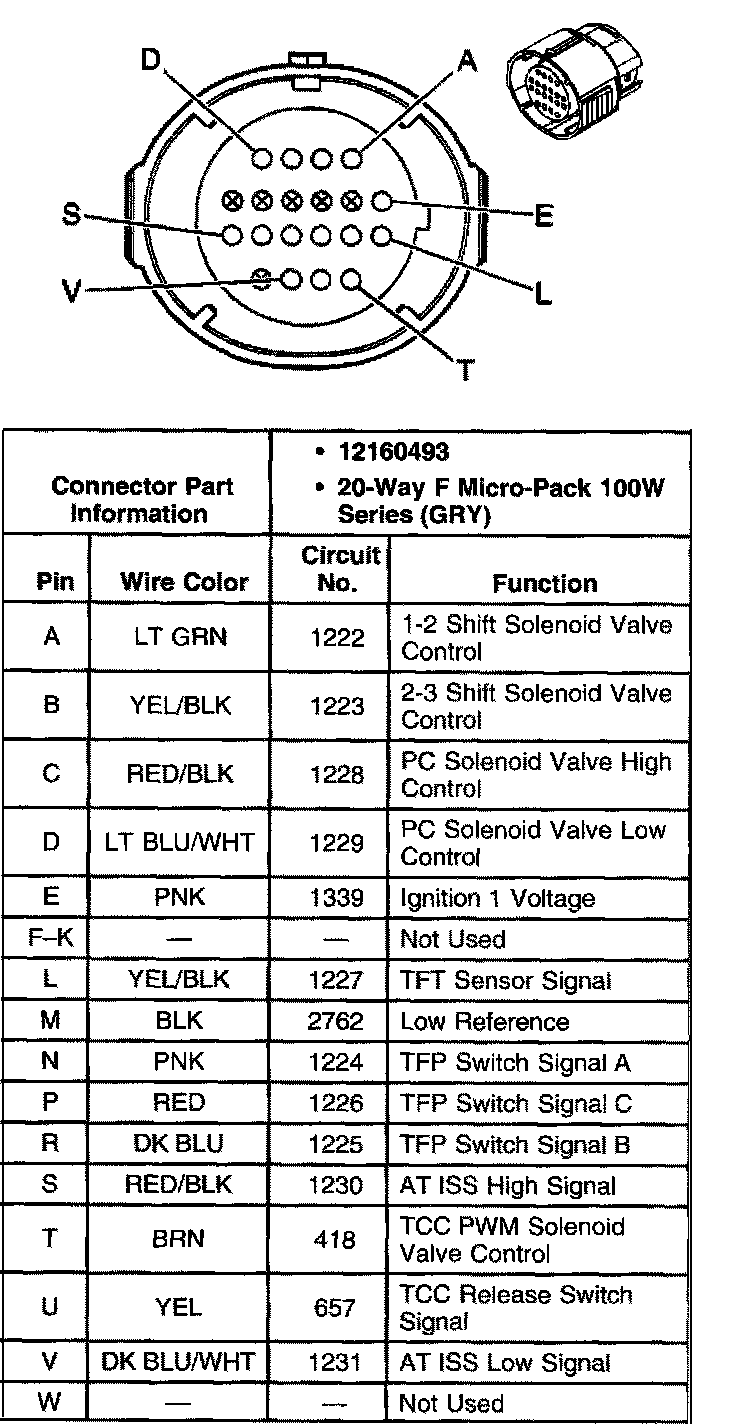

A/T Inline Harness 20-Way Connector, Transmission Side:
