4L60-E/4L65-E Automatic Transmission
>>
Inline 20-Way Connector, Engine Side
Inline 20-Way Connector, Engine Side

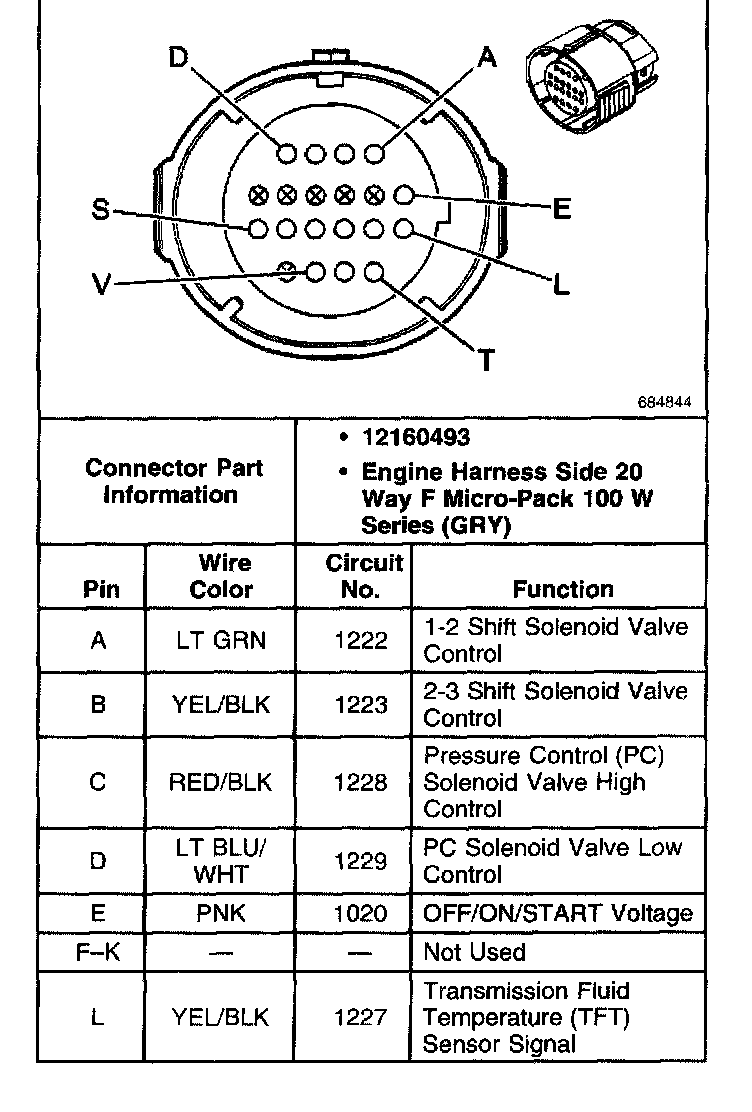

AT Inline 20-Way Connector, Engine Side Part 1 Of 2:
AT Inline 20-Way Connector, Engine Side Part 2 Of 2:
