Home >> Chevy Truck >> 2003 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> System Diagram >> OnStar Button Assembly

OnStar Button Assembly

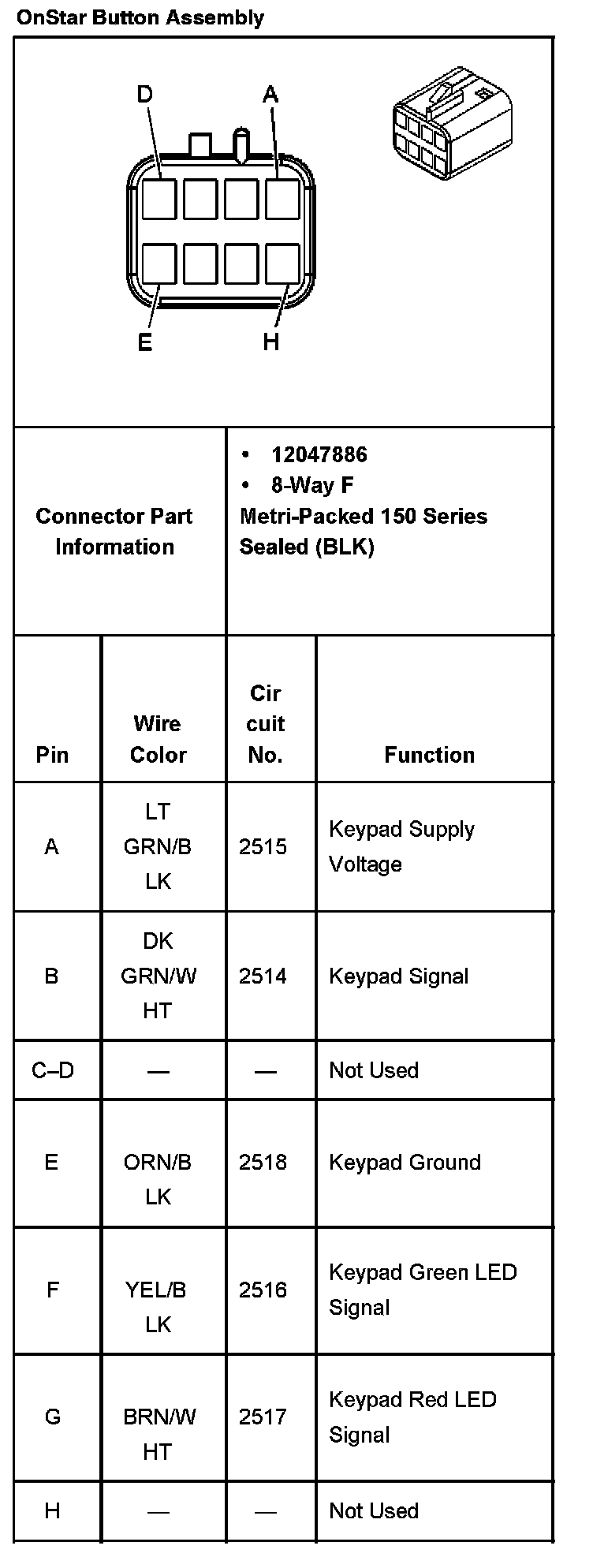

OnStar(R) Button Assembly:
