Control Assembly: Diagrams

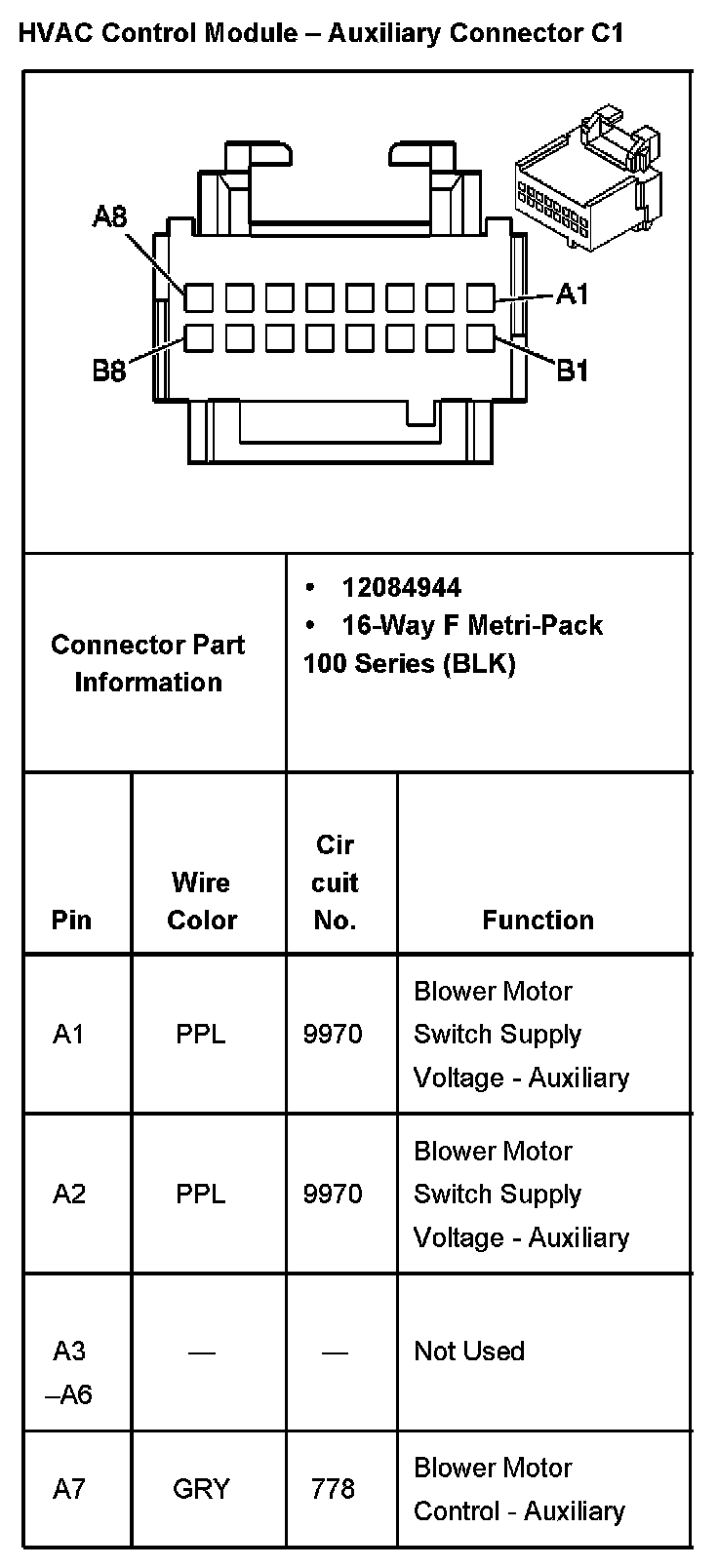

HVAC Control Module - Auxiliary Connector C1 Part 1:

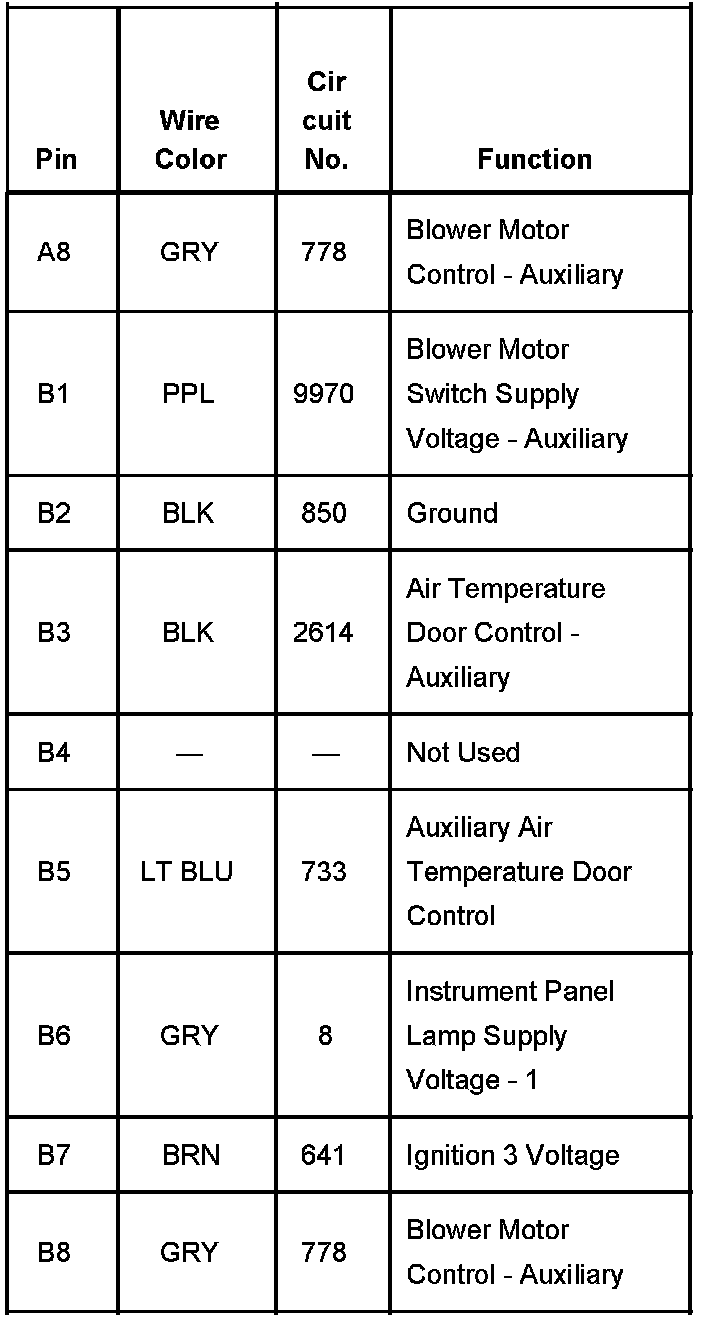

HVAC Control Module - Auxiliary Connector C1 Part 2:

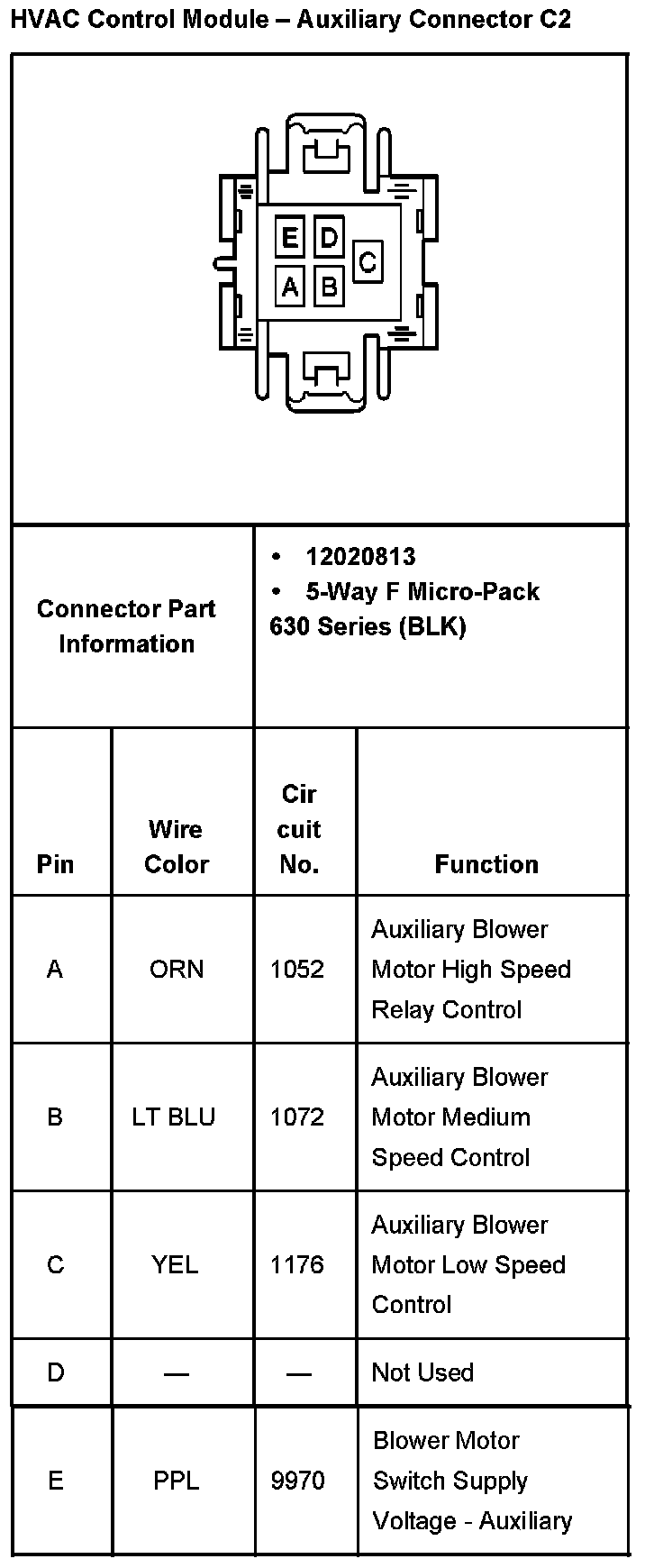

HVAC Control Module - Auxiliary Connector C2:

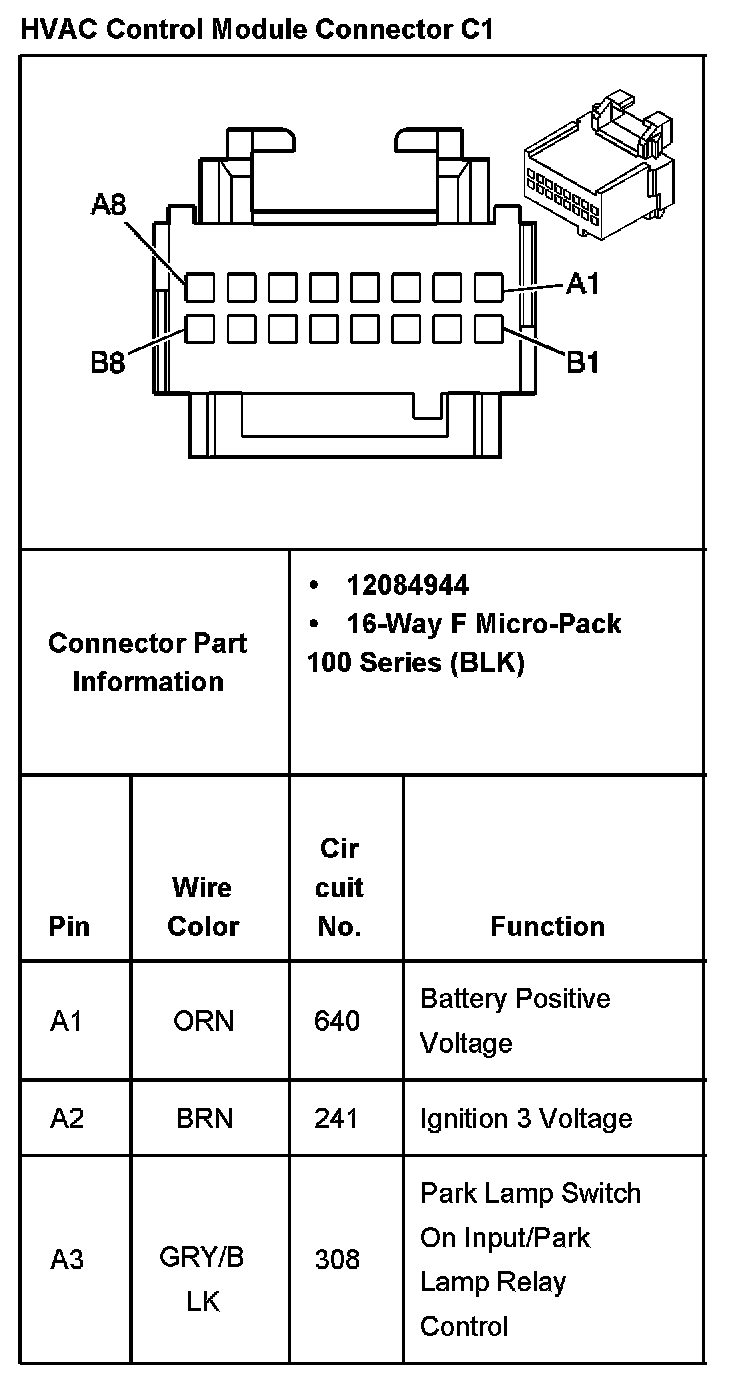

HVAC Control Module - Connector C1 Part 1:

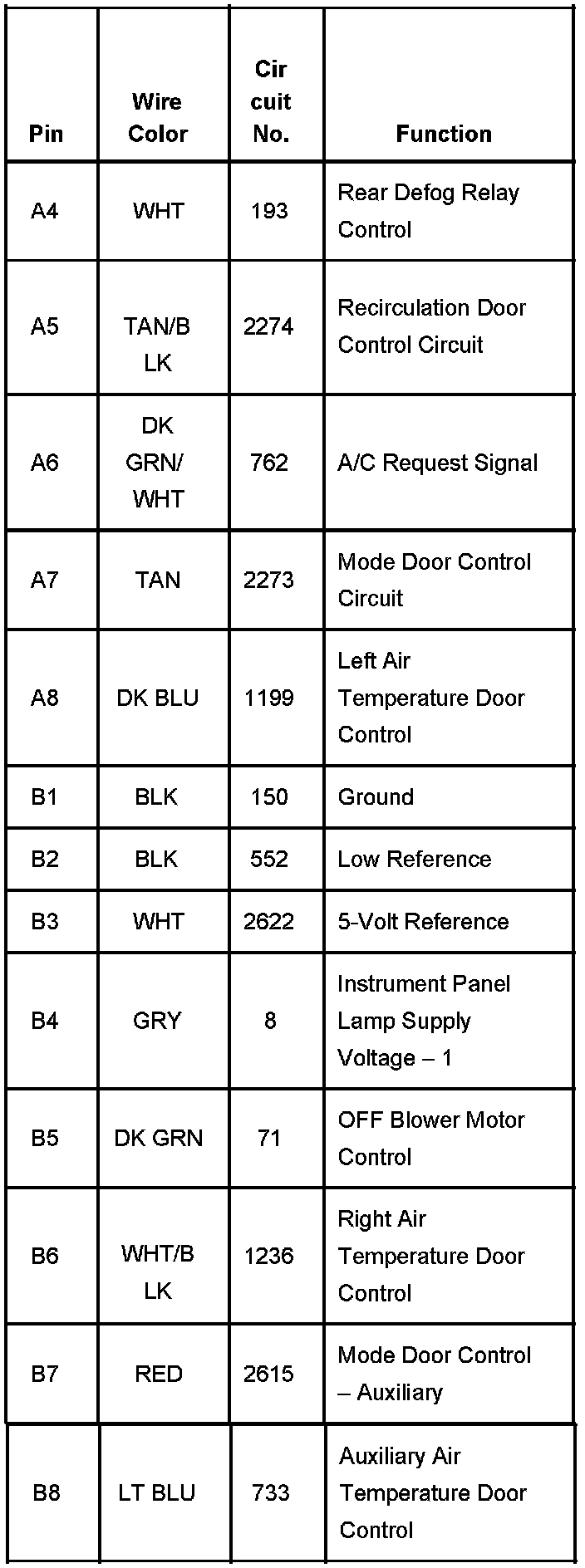

HVAC Control Module - Connector C1 Part 2:




HVAC Control Module - Connector C2 Part 1:

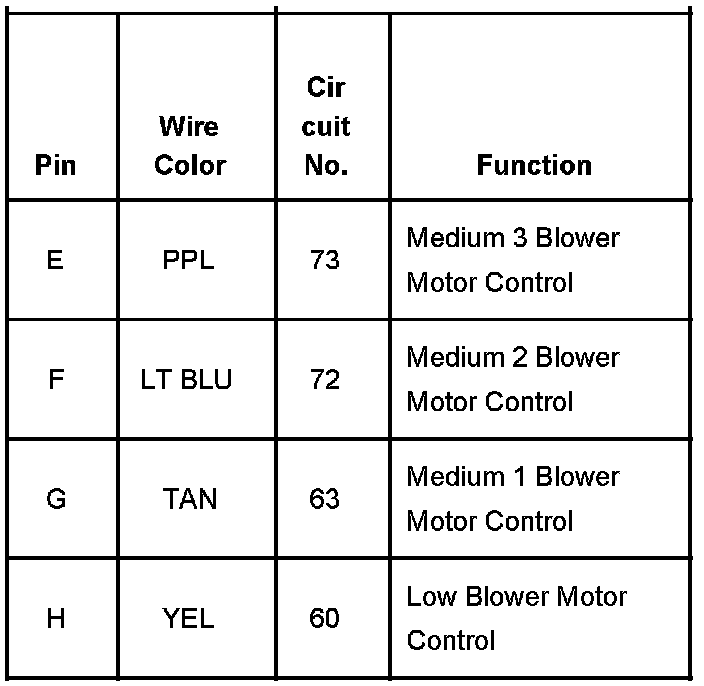

HVAC Control Module - Connector C2 Part 2:
