Transmission Speed Sensor, A/T

Automatic Transmission Related Connector End Views

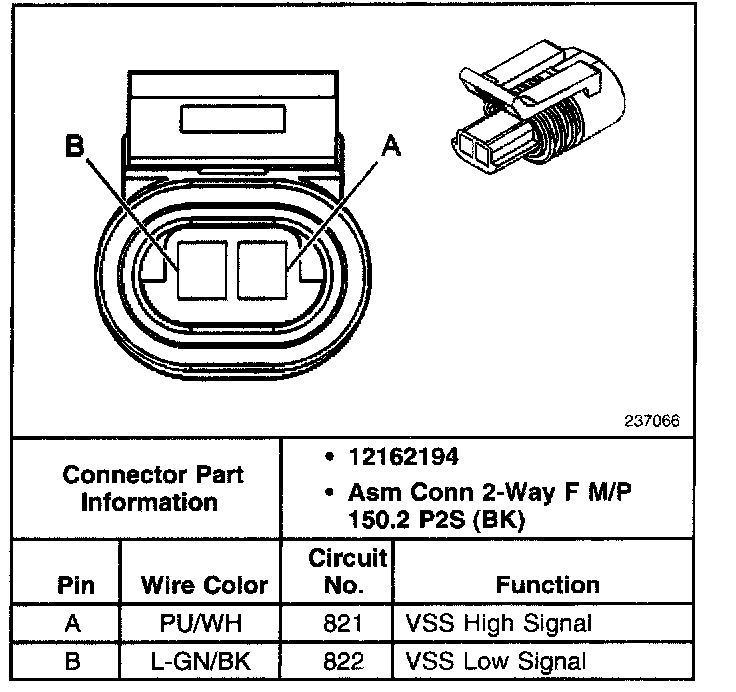

Vehicle Speed Sensor Assembly Connector, Wiring Harness Side
